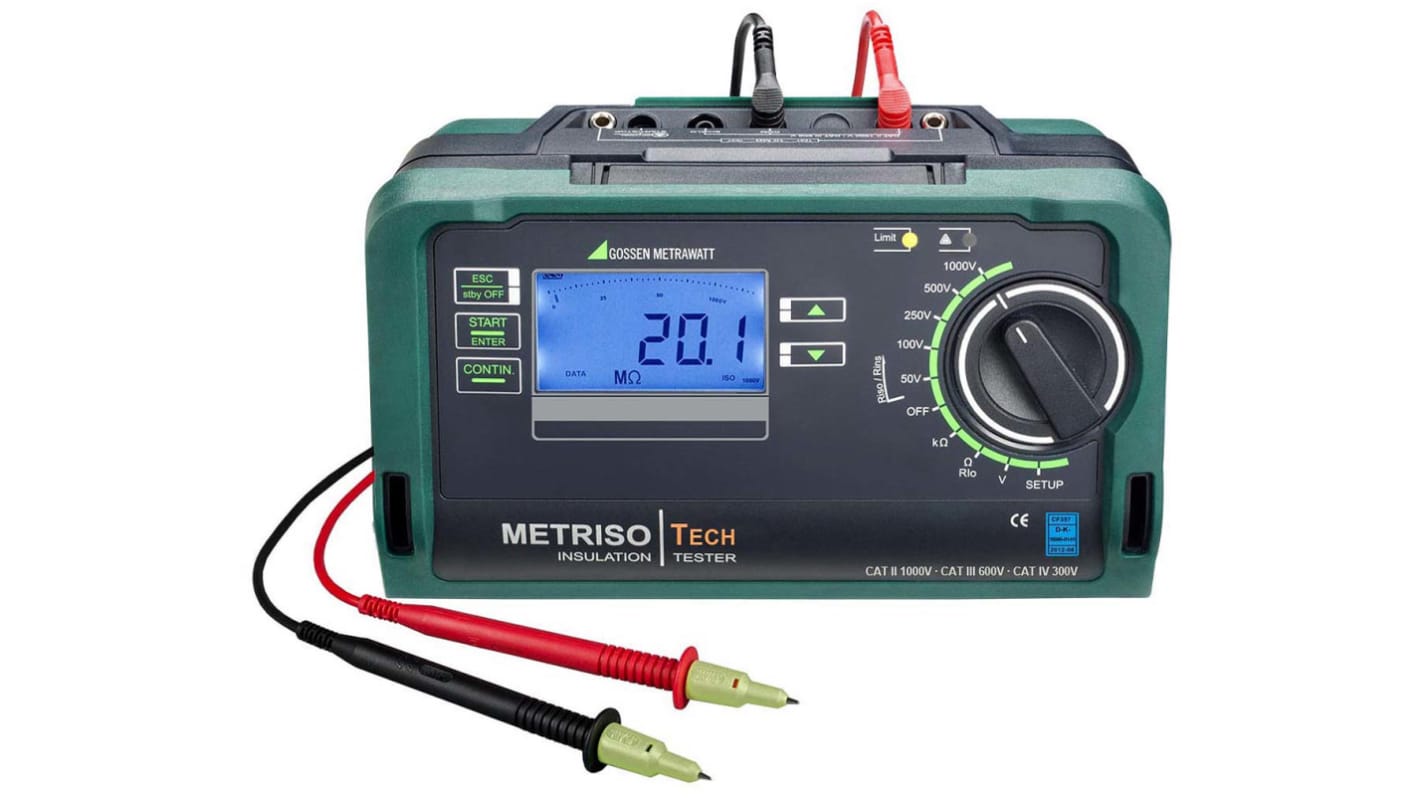

Gossen Metrawatt METRISO TECH Insulation Tester, 50 V Min, 1 kV Max, 199 GΩ CAT II, CAT IV, CAT III
- N° de stock RS:
- 867-5621
- Référence fabricant:
- M550P
- Fabricant:
- Gossen Metrawatt
Sous-total (1 unité)*
1 326,13 €
(TVA exclue)
1 604,62 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 4 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 1 326,13 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 867-5621
- Référence fabricant:
- M550P
- Fabricant:
- Gossen Metrawatt
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Gossen Metrawatt | |
| Model Number | METRISO TECH | |
| Product Type | Insulation Tester | |
| Tester Type | Insulation Tester | |
| Minimum Test Voltage | 50V | |
| Maximum Test Voltage | 1kV | |
| Display Type | Digital, Analogue | |
| Test Current | 5mA | |
| Battery Type | AA | |
| Power Source | Battery | |
| Minimum Operating Temperature | -10°C | |
| Insulation Testing Resistance | 199GΩ | |
| Safety Category Level | CAT II, CAT IV, CAT III | |
| Safety Category Voltage | 1kV, 300kV, 600kV | |
| Maximum Operating Temperature | 50°C | |
| Length | 225mm | |
| Standards/Approvals | CE | |
| Width | 130mm | |
| Height | 140mm | |
| Weight | 1.4kg | |
| Sélectionner tout | ||
|---|---|---|
Marque Gossen Metrawatt | ||
Model Number METRISO TECH | ||
Product Type Insulation Tester | ||
Tester Type Insulation Tester | ||
Minimum Test Voltage 50V | ||
Maximum Test Voltage 1kV | ||
Display Type Digital, Analogue | ||
Test Current 5mA | ||
Battery Type AA | ||
Power Source Battery | ||
Minimum Operating Temperature -10°C | ||
Insulation Testing Resistance 199GΩ | ||
Safety Category Level CAT II, CAT IV, CAT III | ||
Safety Category Voltage 1kV, 300kV, 600kV | ||
Maximum Operating Temperature 50°C | ||
Length 225mm | ||
Standards/Approvals CE | ||
Width 130mm | ||
Height 140mm | ||
Weight 1.4kg | ||
- Pays d'origine :
- DE
Gossen-Metrawatt Insulation Tester, 1000V Maximum Test Voltage, 50V Minimum Test Voltage - M550P
This insulation tester is a battery‑operated instrument designed to measure electrical insulation resistance across a wide voltage range for field and workshop environments. It combines a digital and analogue display to present readings and supports testing with a 5mA output current, enabling assessment of insulation condition in installations where controlled test current and varied voltages are required. The unit is CE approved for use within defined safety categories.
Features and Benefits:
• *Made in Germany - including DAkkS calibration certificate
• 10000000Ω insulation resistance range provides high sensitivity for fault detection
• 5mA test current delivers controlled measurement for accurate diagnosis
• 50 to 1000V selectable test voltage covers low‑to‑high insulation verification
• CAT II, CAT III, CAT IV safety ratings permit varied‑site testing
• AA battery power enables portable use without mains dependency
• 10000000Ω insulation resistance range provides high sensitivity for fault detection
• 5mA test current delivers controlled measurement for accurate diagnosis
• 50 to 1000V selectable test voltage covers low‑to‑high insulation verification
• CAT II, CAT III, CAT IV safety ratings permit varied‑site testing
• AA battery power enables portable use without mains dependency
Applications
• Suitable for checking cable insulation integrity on‑site
• Used for commissioning electrical distribution systems
• Ideal for periodic maintenance of industrial equipment
• Can be used for verification of appliances and fixed wiring
• Used for commissioning electrical distribution systems
• Ideal for periodic maintenance of industrial equipment
• Can be used for verification of appliances and fixed wiring
What battery type does it use and how does that affect portability?
It runs on AA batteries which allow compact, lightweight operation and straightforward field battery replacement.
Which safety environments is the device rated for?
It carries CAT II, CAT III and CAT IV classifications permitting use across low‑voltage installations up to 1000V environments.
How are measurement readouts presented?
Readings are shown on both digital and analogue displays to support Rapid interpretation and fine‑scale observation.
What operating temperatures are supported for field use?
The instrument functions between -10°C and 50°C to accommodate a range of ambient conditions.
What are the physical size and mass considerations for carrying?
It measures 225mm in length, 130mm in width and 140mm in height and weighs 1.4kg for straightforward transport.
Supplied with
METRISO TECH insulation tester, DAkkS calibration certificate, set batteries, carrying strap, alligator clip, KS17-4 cable set, condensed operating instructions, supplement Safety Information, detailed operating instructions for download on the website www.gossenmetrawatt.com
