Seaward Clare H103 Hipot Tester, 250 V Min, 6000 V Max

Voir la catégorie

Sous-total (1 unité)*

6 331,25 €

(TVA exclue)

7 660,81 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Temporairement en rupture de stock
  • 1 unité(s) expédiée(s) à partir du 16 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +6 331,25 €

*Prix donné à titre indicatif

N° de stock RS:
719-0914
Référence fabricant:
450A922
Fabricant:
Seaward Clare
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Seaward Clare

Model Number

H103

Product Type

Insulation Tester

Tester Type

Hipot Tester

Maximum Test Voltage

6000V

Minimum Test Voltage

250V

Display Type

LCD

Test Current

40A

Power Source

Mains

Height

300mm

Standards/Approvals

No

Length

370mm

Width

200 mm

Weight

15kg

Statut RoHS : Exempté

Pays d'origine :
GB

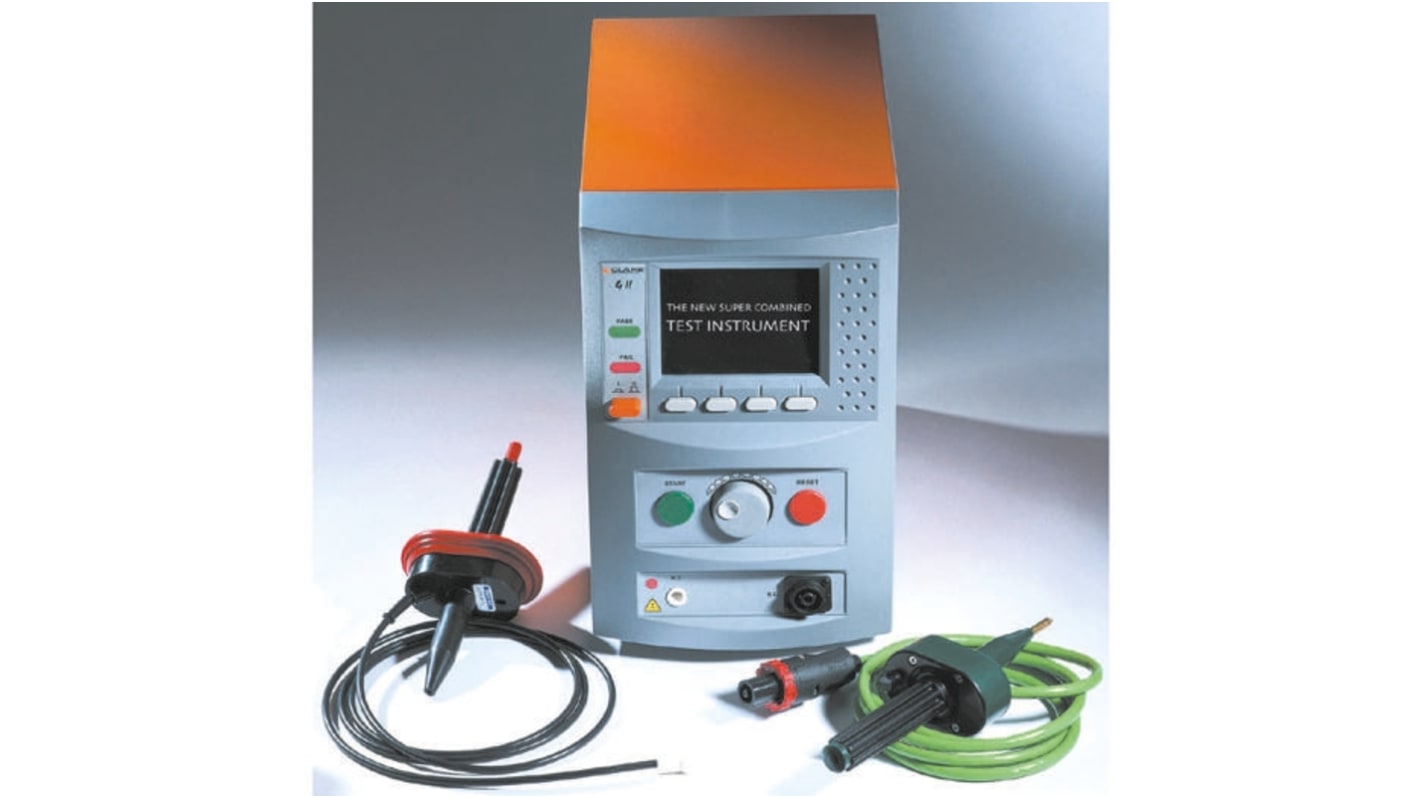

Seaward Clare HAL 103 hipot tester


The HAL 103 is part of the HAL Series and is a comprehensive tester capable of performing dielectric strength, earth/ground bond and DCIR tests.

The 103 offers simple straightforward operation in a factory test or lab/compliance environment. Providing simple manual testing or complete automated operation, equipment can be tested quickly and safely.

The Seaward Clare H103 hipot tester is designed for testing the safety of electrical and electronic items. It offers a range of features and capabilities, including:

• AC and DC hipot testing: Allows for comprehensive testing of insulation resistance.

• Earth bond testing: Ensures proper grounding.

• ARC detection: Identifies potential arcing issues.

• Fully configurable manual testing: Provides flexibility for various testing scenarios.

• High-volume automated testing: Efficiently tests large quantities of products.

• PC connectivity: Enables data logging and analysis.

HAL 103 Features


Earth Bond Test

Performs a.c./d.c. Flash and d.c. IR tests

Fully isolated HT outputs for safe, high current flash testing complying with electrical safety testing standard, EN 50191

Full traceability of test results and test sequences, with PC connectivity via PATguard software (discontinued)

Internal storage of up to 6000 test results and test sequences

Graphical representation of test voltage and pass fail limits on a 320 x 240 VGA graphical LCD

Single button operation with simple PASS/FAIL indication

Provides bar-code read facility for control of inventory

Prints product ID and test reports, when connected to a printer

Connects to external, high visibility status beacons

Compatible with the BrainCell equipment tagging system (stock No. 409-9341)

Applictions


The H103 is a popular choice for both factory and laboratory environments, providing reliable and accurate testing results.

Supplied with

Output Box, Earth Probe, HT Probe (Yellow), Guard Plug, mains lead.
