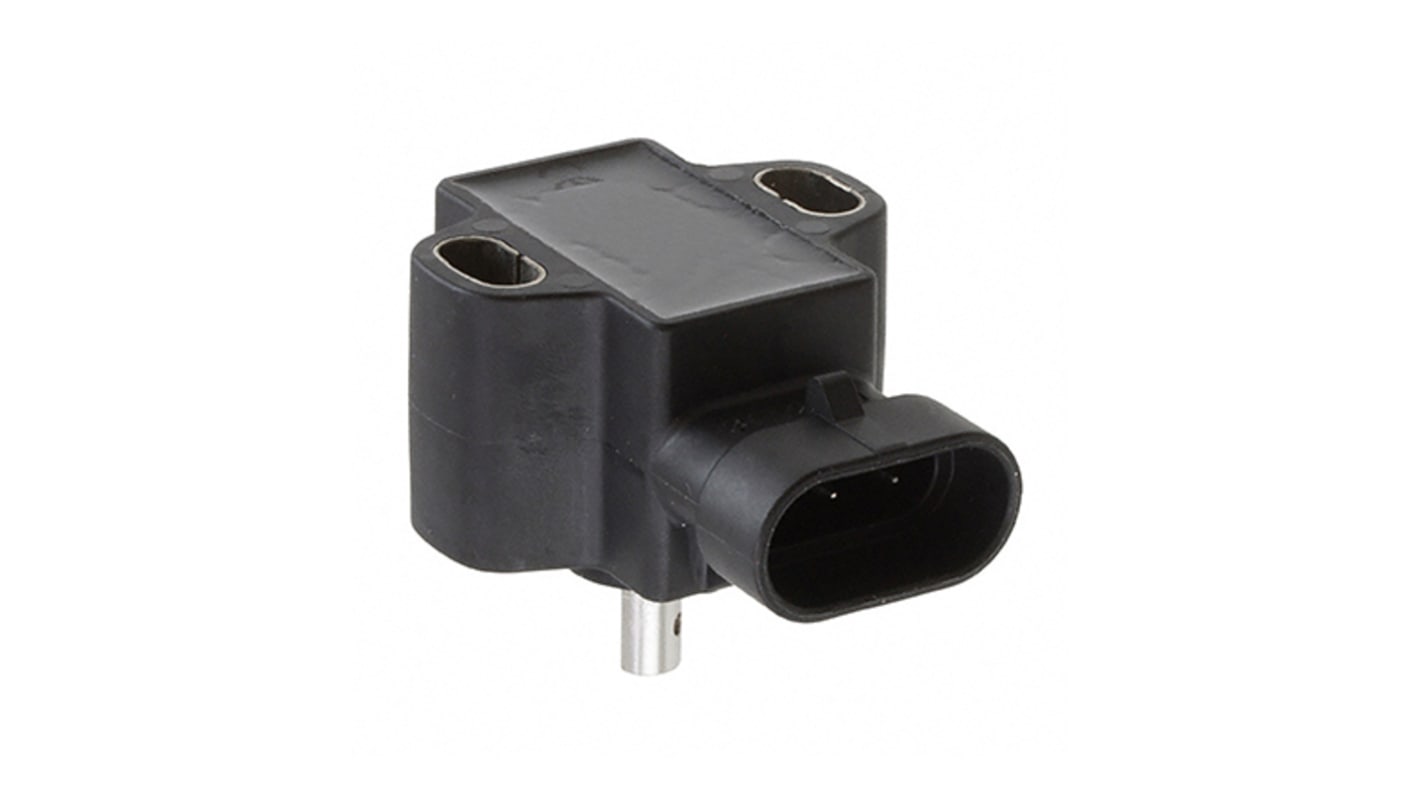

Honeywell Flange Mount Hall Effect Sensor, Non-Ratiometric Output, 10 → 30 V dc, Barrel Body, 180 °

Voir la catégorie
Indisponible
RS n'aura plus ce produit en stock.
N° de stock RS:
822-3630
Référence fabricant:
RTY180HVNBA
Fabricant:
Honeywell
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Honeywell

Output Type

Non-Ratiometric

Body Style

Barrel

Mounting Style

Flange Mount

Supply Voltage

10 → 30 V dc

Terminal Type

Connector

Detection Range

180 °

Switching Current

47 mA

Length

40mm

Width

25mm

Depth

55mm

Maximum Operating Temperature

+125°C

IP Rating

IP67

Dimensions

40 x 25 x 55 mm

Short Circuit Overload Protection

Yes

Housing Material

PBT Plastic

Reverse Polarity Protection

Yes

Minimum Operating Temperature

-40°C

Pays d'origine :
CN

RTY Series Hall-Effect Rotary Position Sensors


Professional RTY series Hall-Effect Rotary position Sensors provide long life in the application
Hall-effect rotary position sensors have a wide range of operating sensing ranges (50°, 60°, 70°, 90°, 120°, 180°, 270° and 360°)
Lever and non-lever sensors are available
High input voltage 10 Vdc to 30 Vdc , Low input voltage 5 Vdc ±0.5 Vdc
IP67
