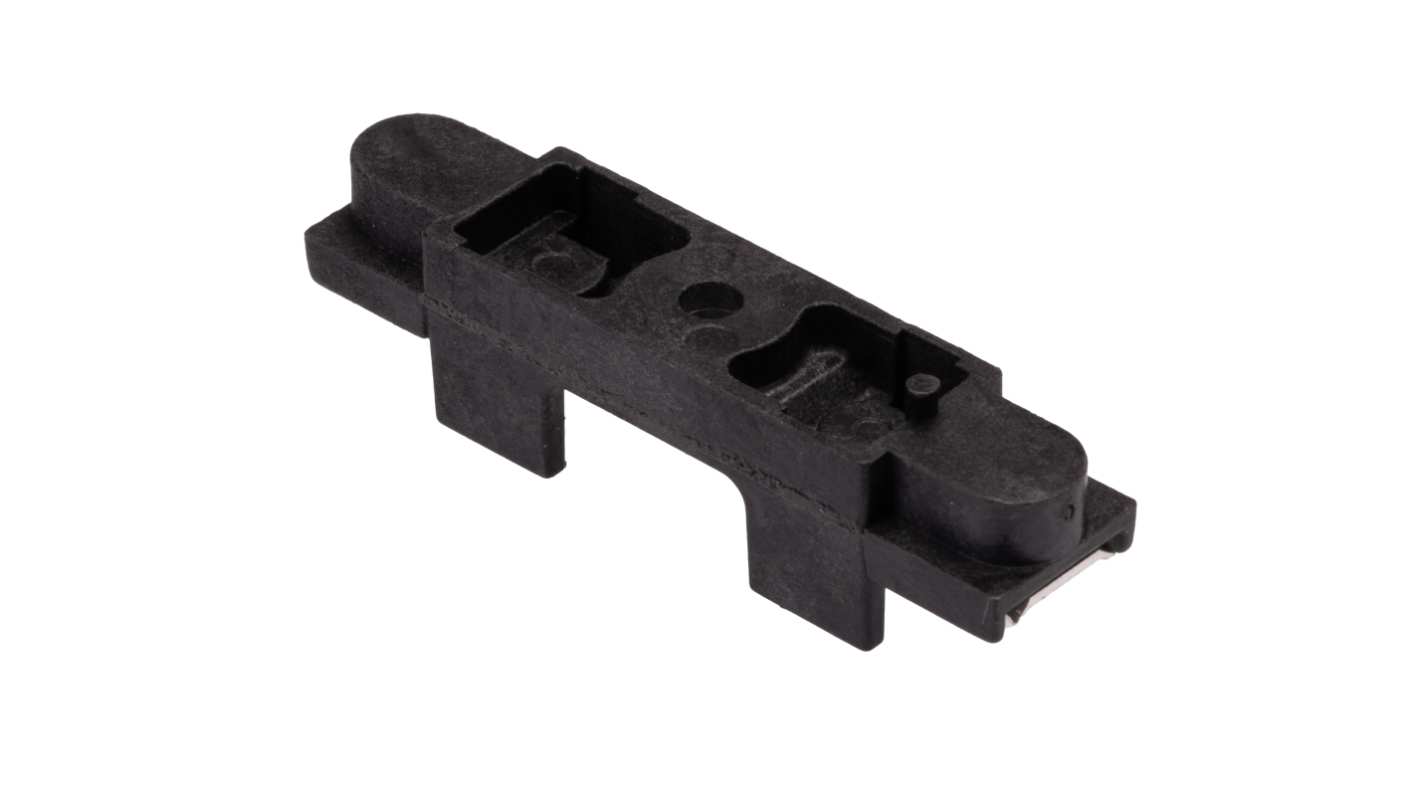

Eaton 30 A 6.3 x 32 mm, Bolt Mount Bolt Down Fuse Block, 300 V ac/dc

N° de stock RS:: 852-7231
Numéro d'article Distrelec:: 304-08-681
Référence fabricant:: S-8301-1-R
Fabricant:: Eaton

Offre groupée disponible

Sous-total (1 unité)*

4,71 €

(TVA exclue)

5,70 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 75,00 €

En stock

Plus 37 unité(s) expédiée(s) à partir du 23 février 2026
Plus 118 unité(s) expédiée(s) à partir du 23 février 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 - 9	4,71 €
10 - 24	4,53 €
25 - 49	4,35 €
50 - 99	4,27 €
100 +	4,05 €

*Prix donné à titre indicatif

N° de stock RS:: 852-7231
Numéro d'article Distrelec:: 304-08-681
Référence fabricant:: S-8301-1-R
Fabricant:: Eaton

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Eaton
	Product Type	Fuse Block
	Fuse Type	Bolt Down
	Fuse Size	6.3 x 32 mm
	Number of Fuses	1
	Current Rating	30 A
	Voltage	300 V ac/dc
	Minimum Operating Temperature	0°C
	Mount Type	Bolt Mount
	Maximum Operating Temperature	60°C
	Body Material	Thermoplastic
	Standards/Approvals	CSA 47235, RoHS. UL E14853
	Series	S-8300
	Dielectric Strength	600V
	For Use With	6.3 x 32 mm Fuse
	Clip Material	Spring Bronze
	Holder Terminal Type	Screw

	Sélectionner tout
	Marque Eaton
	Product Type Fuse Block
	Fuse Type Bolt Down
	Fuse Size 6.3 x 32 mm
	Number of Fuses 1
	Current Rating 30 A
	Voltage 300 V ac/dc
	Minimum Operating Temperature 0°C
	Mount Type Bolt Mount
	Maximum Operating Temperature 60°C
	Body Material Thermoplastic
	Standards/Approvals CSA 47235, RoHS. UL E14853
	Series S-8300
	Dielectric Strength 600V
	For Use With 6.3 x 32 mm Fuse
	Clip Material Spring Bronze
	Holder Terminal Type Screw

Pays d'origine :: US

Eaton S-8300 Series Fuse Block, 30A Current Rating, 300V AC/DC Voltage Rating - S-8301-1-R

This fuse block is designed to accommodate 6.3 x 32 mm fuses, ensuring reliable performance in various electrical applications. With a current rating of 30A and a voltage rating of 300V AC/DC, this compact device is ideal for diverse mounting styles, including bolt-in, snap-in, and DIN rail options.

Features & Benefits

• High voltage capacity supports safe operation up to 600V

• Thermoplastic construction offers durable and reliable performance

• Spring bronze clips ensure secure fuse retention

• Screw terminal configuration simplifies installation and connectivity

• Comprehensive compliance with CSA and UL standards for safety

• Anti-rotational pin enhances stability during operation

Applications

• Ideal for use in electrical control panels

• Designed for requiring robust fuse management

What type of materials are used in the construction of this fuse block?

The fuse block features a thermoplastic body for durability and a spring bronze clip to securely hold the fuse in place.

How does the mounting style affect the installation process?

The fuse block can be installed using bolt-in, snap-in, or DIN rail mounting options, allowing for flexible installation tailored to specific environmental requirements.

What are the temperature ratings for operating this device?

This fuse block is rated for operation within a range of -55 °C to +70 °C, ensuring functionality in extreme conditions.

How does the screw terminal design benefit users?

The screw terminal design allows for secure wire connections, reducing the risk of accidental disconnection during operation.

What safety standards does this fuse block meet?

The fuse block complies with both CSA certification 47235 and UL recognition E14853, ensuring adherence to stringent safety standards.

Note

Eaton formerly known as Bussmann
