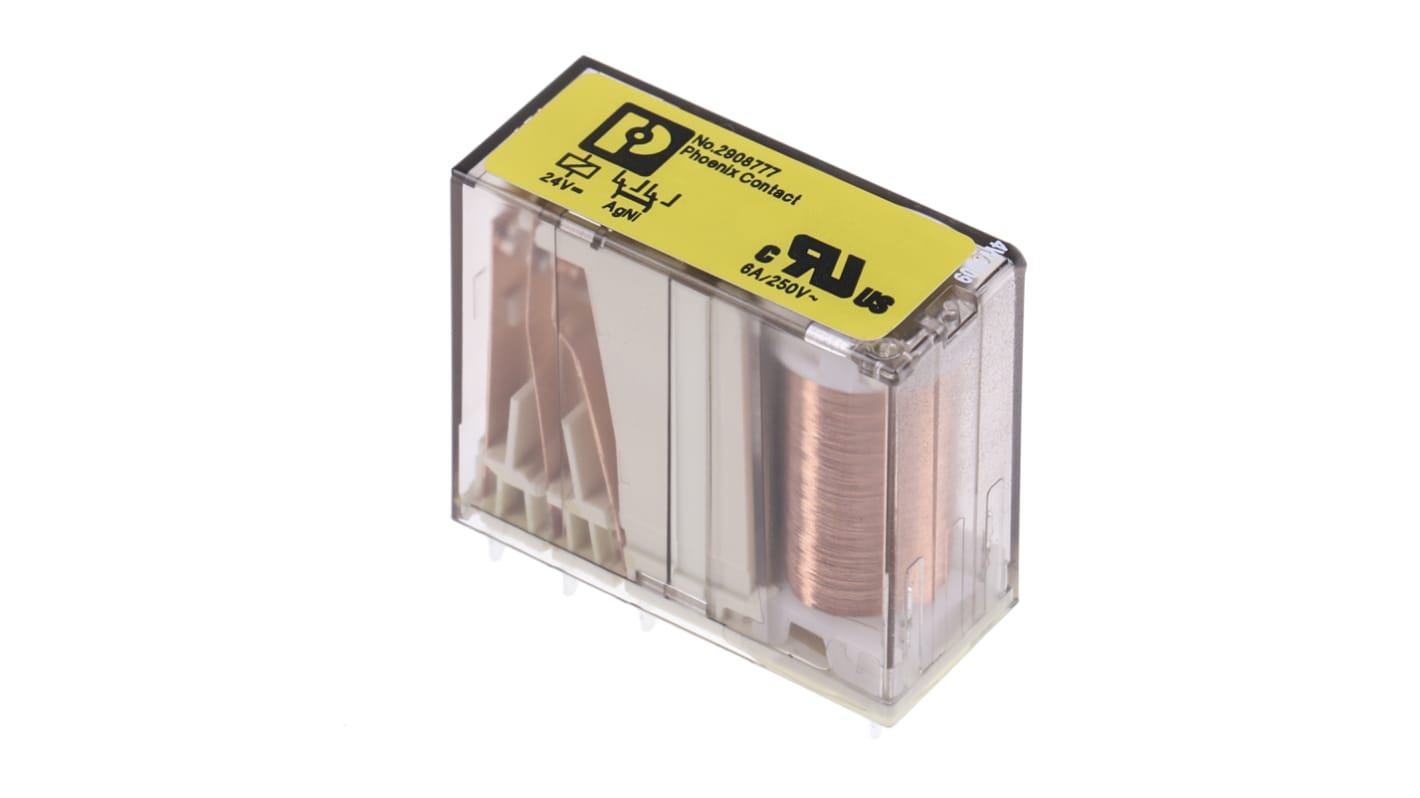

Phoenix Contact PCB Force Guided Relay, 24V dc Coil Voltage, 2-Pole, DPDT
- N° de stock RS:
- 175-0512
- Numéro d'article Distrelec:
- 304-10-461
- Référence fabricant:
- 2908777
- Fabricant:
- Phoenix Contact
Sous-total (1 unité)*
16,60 €
(TVA exclue)
20,09 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 19 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 25 unité(s) expédiée(s) à partir du 30 octobre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 16,60 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 175-0512
- Numéro d'article Distrelec:
- 304-10-461
- Référence fabricant:
- 2908777
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | Force Guided Relay | |
| Mount Type | PCB | |
| Contact Configuration | DPDT | |
| Number of Poles | 2 | |
| Coil Power | 0.7W | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Terminal Type | Screw | |
| Depth | 25.5mm | |
| Height | 29mm | |
| Length | 12.6mm | |
| Isolation Coil To Contact | 4kV | |
| Contact Material | Silver Alloy | |
| Series | REL-SR- 24DC/2X21/FG | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type Force Guided Relay | ||
Mount Type PCB | ||
Contact Configuration DPDT | ||
Number of Poles 2 | ||
Coil Power 0.7W | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Terminal Type Screw | ||
Depth 25.5mm | ||
Height 29mm | ||
Length 12.6mm | ||
Isolation Coil To Contact 4kV | ||
Contact Material Silver Alloy | ||
Series REL-SR- 24DC/2X21/FG | ||
Phoenix Contact Single-Contact Interface Relay Module, 24V DC, 10mA - REL-SR- 24DC/2X21/FG Series - 2908777
Looking for a module to switch safely between currents in your control systems? Use this Phoenix Contact interface relay module. When a fault is detected, it automatically removes the contacts from the electrical connection to prevent damage. This makes it ideal for use as a safety relay module in industrial applications.
This module uses a DPDT (double-pole, double-throw) contact switch, which makes it a quick relay with high switching capacity. The silver-alloy contacts have excellent conductivity and are responsive to changes in current flow.
You can mount this unit on a PCB (printed circuit board) by soldering it to create a direct connection, which makes it more efficient. A screw terminal securely holds wires in place. Install this relay module in your control panels and circuit boards to protect them from electrical malfunctions in intense environments that experience temperatures up to +70°C.
Features & Benefits
• IP20 (ingress protection) rating means it withstands contact from objects 12mm or larger in diameter
• Up to 10 million service cycles for a long service life
• 6kV rated surge voltage for safe use in high-power systems
