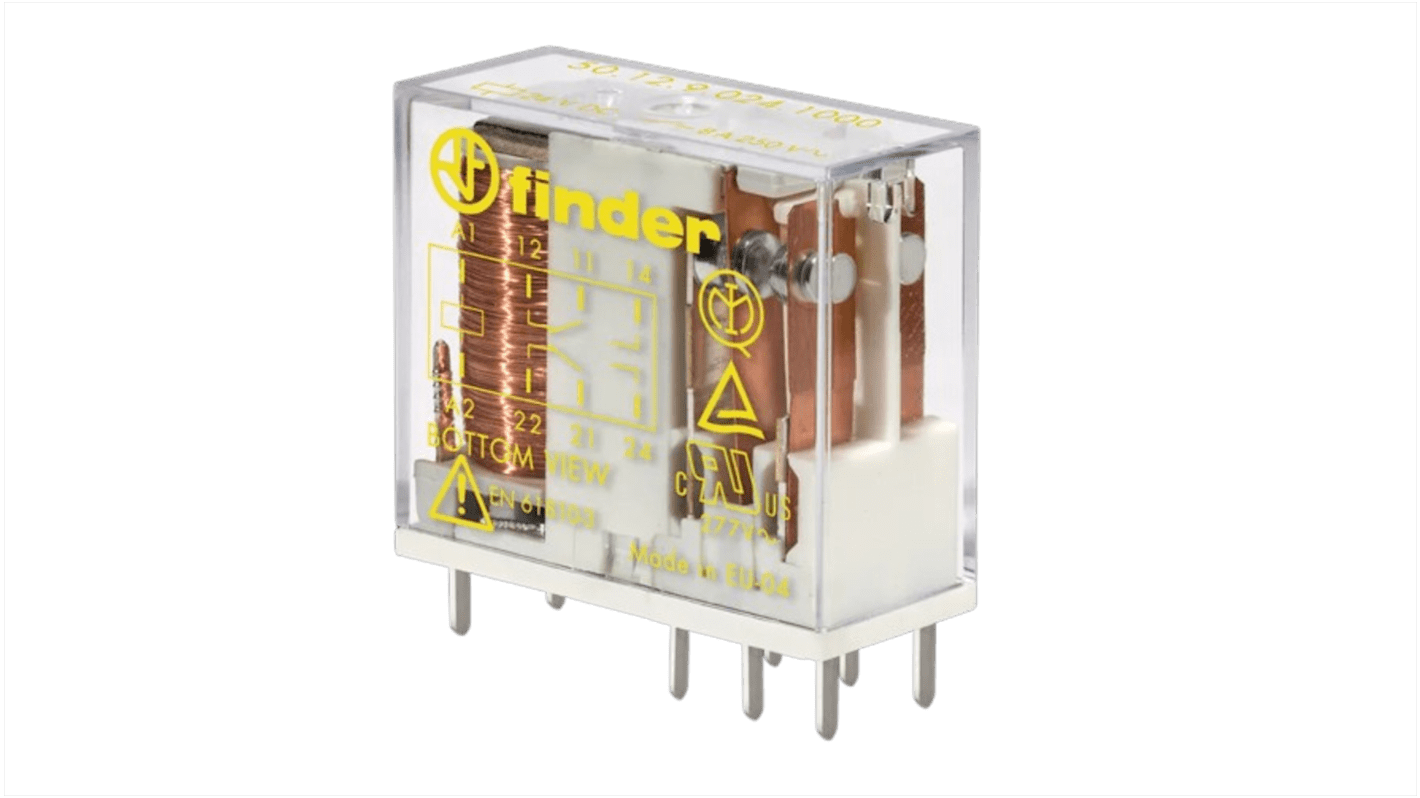

Finder PCB Force Guided Relay, 24V dc Coil Voltage, 2-Pole, DPDT
- N° de stock RS:
- 102-456
- Numéro d'article Distrelec:
- 304-10-258
- Référence fabricant:
- 50.12.9.024.1000
- Fabricant:
- Finder
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
12,14 €
(TVA exclue)
14,69 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 204 unité(s) prête(s) à être expédiée(s)
- Plus 1 074 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 12,14 € |
| 5 - 11 | 11,78 € |
| 12 + | 11,38 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 102-456
- Numéro d'article Distrelec:
- 304-10-258
- Référence fabricant:
- 50.12.9.024.1000
- Fabricant:
- Finder
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Finder | |
| Product Type | Force Guided Relay | |
| Mount Type | PCB | |
| Contact Configuration | DPDT | |
| Number of Poles | 2 | |
| Coil Resistance | 820Ω | |
| Coil Power | 700mW | |
| Minimum Operating Temperature | -40°C | |
| Terminal Type | Solder | |
| Maximum Operating Temperature | 70°C | |
| Length | 29mm | |
| Height | 25mm | |
| Depth | 12.4mm | |
| Series | 50 | |
| Isolation Coil To Contact | 6kV | |
| Contact Material | Silver Alloy | |
| Sélectionner tout | ||
|---|---|---|
Marque Finder | ||
Product Type Force Guided Relay | ||
Mount Type PCB | ||
Contact Configuration DPDT | ||
Number of Poles 2 | ||
Coil Resistance 820Ω | ||
Coil Power 700mW | ||
Minimum Operating Temperature -40°C | ||
Terminal Type Solder | ||
Maximum Operating Temperature 70°C | ||
Length 29mm | ||
Height 25mm | ||
Depth 12.4mm | ||
Series 50 | ||
Isolation Coil To Contact 6kV | ||
Contact Material Silver Alloy | ||
- Pays d'origine :
- ES
Finder Series 50 Force Guided Relay, 24V DC Coil Voltage, DPDT Contact Configuration - 50.12.9.024.1000
This force guided relay operates with a coil voltage of 24 V DC and a double-pole double-throw (DPDT) configuration, making it suitable for safety-critical environments in industrial applications.
Features & Benefits
• Cadmium-free materials enhance environmental safety
• High physical separation between contacts prevents unintended operation
• Silver alloy contacts ensure dependable conductivity
• Designed for medium duty switching with ample load capacity
• 6 kV isolation promotes safety in high voltage applications
• Compact PCB mount design facilitates integration into existing circuits
Applications
• Employed in escalators for dependability
• Used in hospitals and medical equipment
• Suitable for controlling elevators and lifts
• Utilised in hoists and cranes for automation
• Effective in carousel warehouses to improve operational safety
What is the expected electrical life cycle at rated load?
It has an electrical life of 100,000 cycles at rated load.
Can this relay be integrated with standard PCB layouts?
Yes, it features a PCB mounting type designed for standard integration.
What type of load is this relay best suited for?
It is optimised for medium duty switching, particularly for DC loads.
Is installation straightforward for users without prior experience?
The through-hole design allows for easy installation on PCBs.
What precautions should be taken while using it in high voltage applications?
Ensure proper isolation and adhere to electrical safety regulations.
