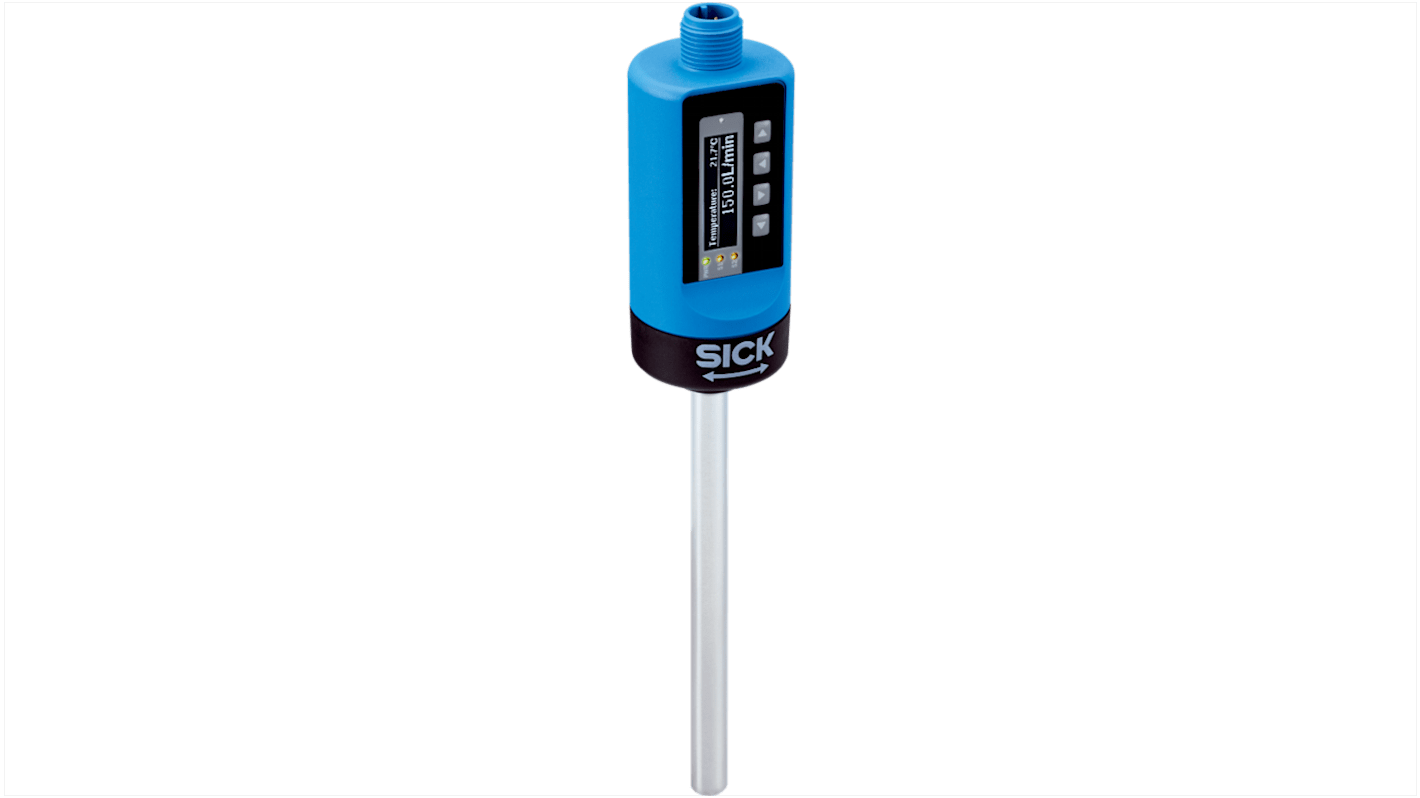

SICK FTS Series Fluid Sensor Flow Sensor for Liquid, 3cm/s Min, 600cm/s Max
- N° de stock RS:
- 285-9499
- Référence fabricant:
- FTS-I100F14B
- Fabricant:
- SICK
Sous-total (1 unité)*
390,26 €
(TVA exclue)
472,21 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 1 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 390,26 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 285-9499
- Référence fabricant:
- FTS-I100F14B
- Fabricant:
- SICK
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | SICK | |
| Media Monitored | Liquid | |
| Product Type | Flow Sensor | |
| Device Type | Fluid Sensor | |
| Minimum Flow Rate | 3cm/s | |
| Housing Material | Vistal | |
| Maximum Flow Rate | 600cm/s | |
| Connection Type | M12 | |
| Maximum Pressure | 100bar | |
| IP Rating | IP67 | |
| Minimum Media Temperature | -40°C | |
| Maximum Supply Voltage | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Media Temperature | 150°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EN 61326-2-3, EN 61326-1 | |
| Series | FTS | |
| Current Rating | 100mA | |
| Sélectionner tout | ||
|---|---|---|
Marque SICK | ||
Media Monitored Liquid | ||
Product Type Flow Sensor | ||
Device Type Fluid Sensor | ||
Minimum Flow Rate 3cm/s | ||
Housing Material Vistal | ||
Maximum Flow Rate 600cm/s | ||
Connection Type M12 | ||
Maximum Pressure 100bar | ||
IP Rating IP67 | ||
Minimum Media Temperature -40°C | ||
Maximum Supply Voltage 30V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Media Temperature 150°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EN 61326-2-3, EN 61326-1 | ||
Series FTS | ||
Current Rating 100mA | ||
- Pays d'origine :
- DE
Overview
The T-Easic FTS thermal flow sensor measures flow and temperature of liquids in accordance with the calorimetric principle. Available as an industrial variant with VISTAL® housing and display or as a hygienic stainless-steel variant, the T-Easic® FTS is s
A special feature is integrated empty pipe detection for optimal dry-run protection in pumps. Parameterization can be done via IO-Link or the display. Media taught-in at the factory such as oil and water accelerate commissioning; other liquids can be cali
At a glance
Flow monitoring and temperature measurement in one sensor
Optimized for water and oil; teach-in option of other liquids
IP 67/IP 69 enclosure rating and IO-Link 1.1
Industrial design in VISTAL® housing with 180°-rotatable OLED display
Stainless steel hygi
Your Benefit
One sensor, two measurements – reduces costs and hygiene risk thanks to a unique installation point
Optimal pump protection thanks integrated empty pipe detection
Automated measurement data acquisition via analogue output or IO-Link
Volume recording thank
Applications
