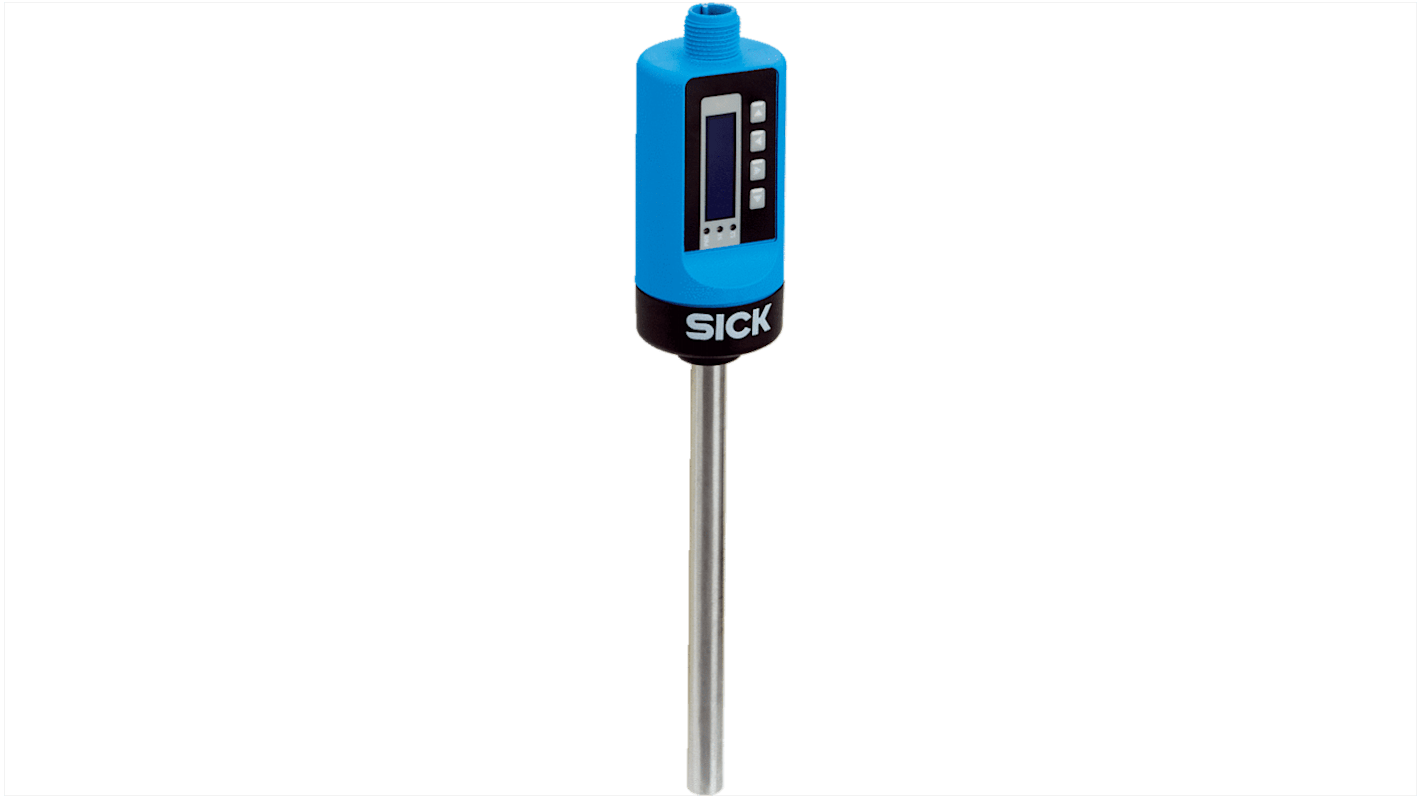

SICK FTS Series Flow Switch Flow Sensor for Liquid, 3cm/s Min, 300cm/s Max

Voir l’ensemble des Flow Sensors

Sous-total (1 unité)*

356,33 €

(TVA exclue)

431,16 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Temporairement en rupture de stock
  • Expédition à partir du 13 octobre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +356,33 €

*Prix donné à titre indicatif

N° de stock RS:
213-3261
Référence fabricant:
FTS-I060F14A
Fabricant:
SICK
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

SICK

Product Type

Flow Sensor

Media Monitored

Liquid

Device Type

Flow Switch

Minimum Flow Rate

3cm/s

Maximum Flow Rate

300cm/s

Housing Material

Plastic, Stainless Steel

Connection Type

Compression

Maximum Pressure

100bar

Maximum Supply Voltage

30V dc

Minimum Media Temperature

-40°C

IP Rating

IP67

Maximum Media Temperature

150°C

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

70°C

Standards/Approvals

CE, UL

Series

FTS

Current Rating

100mA

Pays d'origine :
DE

Overview


At a glance


Flow monitoring and temperature measurement in one sensor

Optimized for water and oil; teach-in option of other liquids

IP 67/IP 69 enclosure rating and IO-Link 1.1

Industrial design in VISTAL® housing with 180°-rotatable OLED display

Stainless steel hygienic variant, completely CIP-/SIP-capable, process temperatures up to 150 °C

Your Benefit


One sensor, two measurements - reduces costs and hygiene risk thanks to a unique installation point

Cost savings thanks to speedy installation via mounting adapter

Time savings due to easy commissioning without calibration for taught-in media

User-friendly industrial version with intuitive menu guidance and display for fast commissioning

Reduced storage needs thanks to flexible adjustment to the pipe diameter

Less wiring is required thanks to IO-Link 1.1 with convenient adjustments as well as integration and cloning functions

Low downtimes thanks to low-maintenance system

The T-Easic® FTS thermal flow switch measures flow and temperature in accordance with the calorimetric principle. With two digital outputs, it monitors the measured values and sends these to a superior control as soon as a set limit value is exceeded or undercut. The parameter settings can be done via IO-Link. As an industrial design, it also offers an OLED display and operating buttons. Values preset at the factory for media such as oil and water simplify and accelerate commissioning; nearly all liquids can be calibrated quickly and easily. The extremely rugged VISTAL® housing of the industrial design protects the sensor during cleaning processes, the hygienic design also available also withstands CIP/SIP conditions.

Applications


Flow monitoring in cooling lubricant circuits and cleaning machines

Flow and temperature detection in the food industry and in CIP cleaning systems

Pump protection and monitoring

Contamination monitoring of filters

Performance measurement of rinsing and spraying processes
