Novotech Controls SPCO Series Control Valve Flow Sensor for Liquid, 3L/min Min, 6L/min Max
- N° de stock RS:
- 256-578
- Fabricant:
- Novotech Controls
Sous-total (1 unité)*
103,45 €
(TVA exclue)
125,17 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 1 unité(s) prête(s) à être expédiée(s)
- Plus 20 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 12 unité(s) expédiée(s) à partir du 31 août 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 103,45 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 256-578
- Fabricant:
- Novotech Controls
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Novotech Controls | |
| Product Type | Flow Sensor | |
| Media Monitored | Liquid | |
| Device Type | Control Valve | |
| Minimum Flow Rate | 3L/min | |
| Maximum Flow Rate | 6L/min | |
| Maximum Pressure | 10bar | |
| Minimum Media Temperature | 5°C | |
| IP Rating | IP54 | |
| Maximum Supply Voltage | 240V ac | |
| Maximum Media Temperature | 85°C | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 70°C | |
| Series | SPCO | |
| Standards/Approvals | BS7671, Cenelec HD384.5.514.3, UK WFBS | |
| Current Rating | 16A | |
| Sélectionner tout | ||
|---|---|---|
Marque Novotech Controls | ||
Product Type Flow Sensor | ||
Media Monitored Liquid | ||
Device Type Control Valve | ||
Minimum Flow Rate 3L/min | ||
Maximum Flow Rate 6L/min | ||
Maximum Pressure 10bar | ||
Minimum Media Temperature 5°C | ||
IP Rating IP54 | ||
Maximum Supply Voltage 240V ac | ||
Maximum Media Temperature 85°C | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 70°C | ||
Series SPCO | ||
Standards/Approvals BS7671, Cenelec HD384.5.514.3, UK WFBS | ||
Current Rating 16A | ||
Statut RoHS : Exempté
- Pays d'origine :
- GB

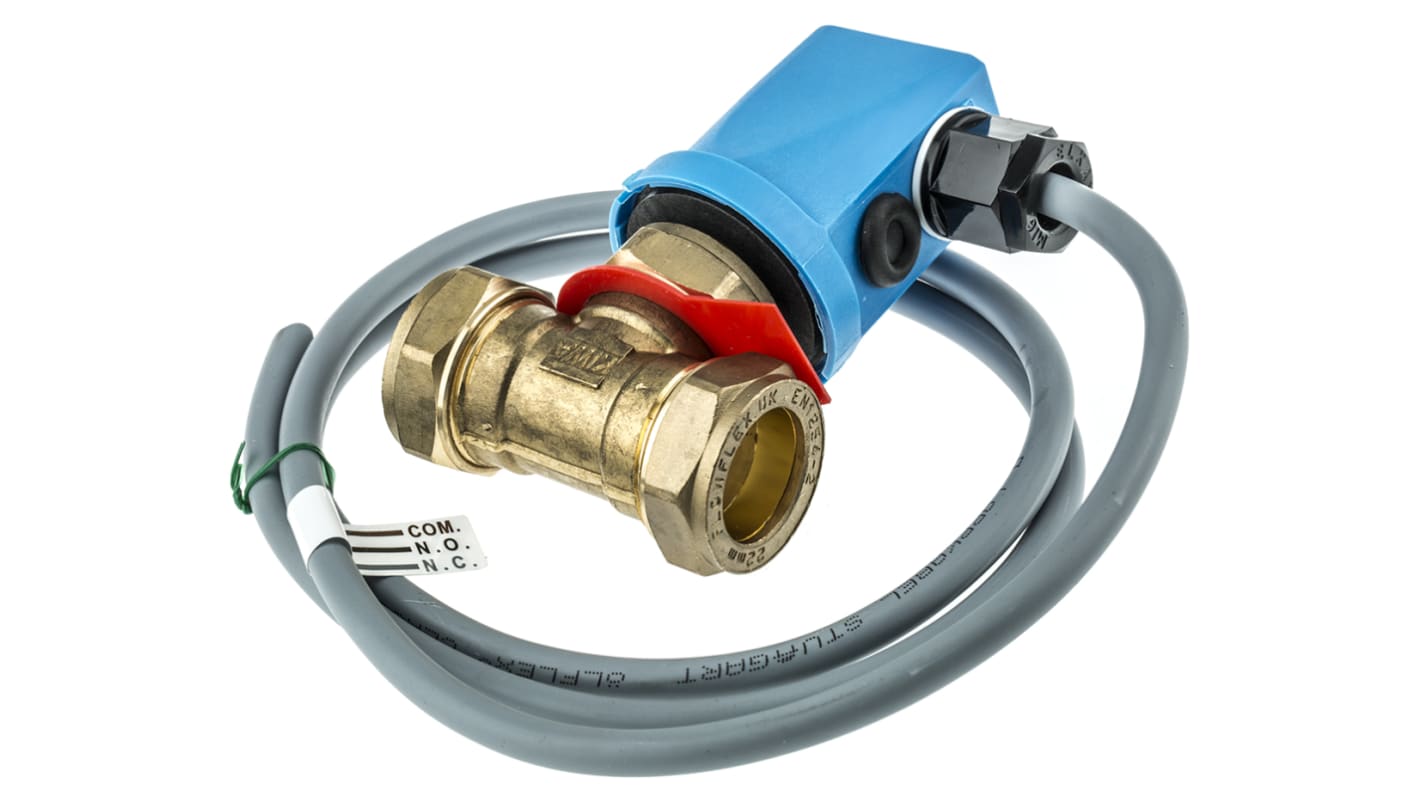

Novotech Flow Switch
The Novotech SPCO series flow switch has a liquid flow rate of 3L/min to 6L/min. This flow switch has a highly efficient switching capability of 16A at 240VAC (resistive load). This switch is designed for use within water but can be used with alkalis, alcohol, fuels and lubricating oils. This flow switch needs to be mounted in line with the flow.
Note:
Not designed for frequent flow rate readjustment
Not for use with diluted or concentrated acids
Inclusions:
Compression fittings and 1m of 3-core PVC cable fitted.
Features and Benefits
Pipe diameter range is 22mm
Pressure rating is 10bar
Operating temperature is maximum 70°C
Certifications
IP54 rated
Wetted materials approval in accordance with UK Water Fittings and Bylaws scheme (WFBS) listed
