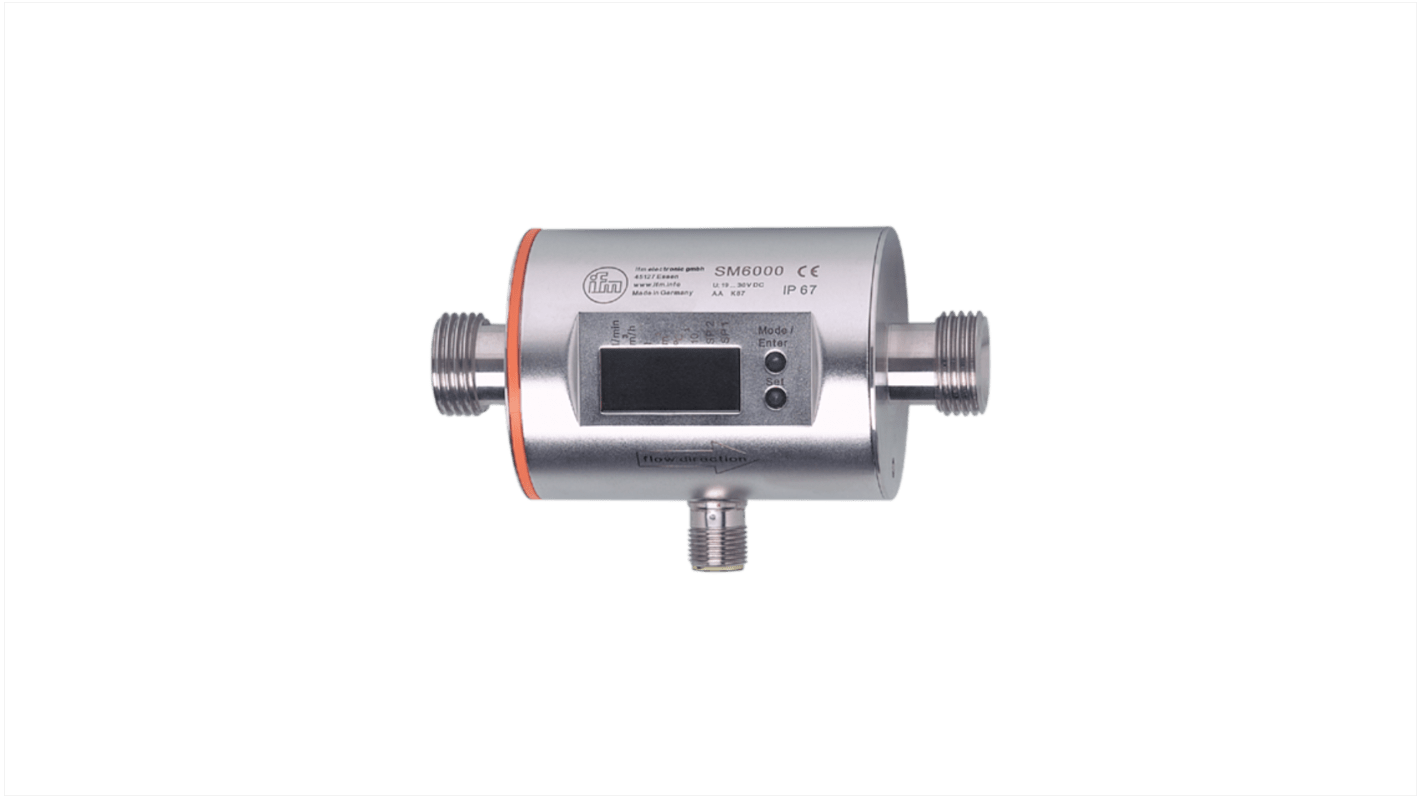

ifm electronic SM Series Magnetic Inductive Flow Meter Flow Sensor for Liquid, 0.4L/min Min, 25L/min Max
- N° de stock RS:
- 191-464
- Référence fabricant:
- SM6004
- Fabricant:
- ifm electronic
Sous-total (1 unité)*
690,38 €
(TVA exclue)
835,36 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 7 unité(s) expédiée(s) à partir du 05 octobre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 690,38 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 191-464
- Référence fabricant:
- SM6004
- Fabricant:
- ifm electronic
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | ifm electronic | |
| Product Type | Flow Sensor | |
| Media Monitored | Liquid | |
| Device Type | Magnetic Inductive Flow Meter | |
| Minimum Flow Rate | 0.4L/min | |
| Maximum Flow Rate | 25L/min | |
| Housing Material | 316L Stainless Steel | |
| Maximum Pressure | 16bar | |
| IP Rating | IP65, IP67 | |
| Minimum Media Temperature | -10°C | |
| Maximum Supply Voltage | 30V | |
| Maximum Media Temperature | 70°C | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 80°C | |
| Series | SM | |
| Standards/Approvals | DIN EN 60947-5-9, DIN EN 60068-2-6, UL, DIN EN 60068-2-27 | |
| Current Rating | 20mA | |
| Sélectionner tout | ||
|---|---|---|
Marque ifm electronic | ||
Product Type Flow Sensor | ||
Media Monitored Liquid | ||
Device Type Magnetic Inductive Flow Meter | ||
Minimum Flow Rate 0.4L/min | ||
Maximum Flow Rate 25L/min | ||
Housing Material 316L Stainless Steel | ||
Maximum Pressure 16bar | ||
IP Rating IP65, IP67 | ||
Minimum Media Temperature -10°C | ||
Maximum Supply Voltage 30V | ||
Maximum Media Temperature 70°C | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 80°C | ||
Series SM | ||
Standards/Approvals DIN EN 60947-5-9, DIN EN 60068-2-6, UL, DIN EN 60068-2-27 | ||
Current Rating 20mA | ||
- Pays d'origine :
- DE
The ifm electronic Magnetic Inductive Flow Meter is designed for industrial applications and features gold plated contacts for enhanced durability and reliability. It is suitable for measuring conductive liquids, including water and hydrous media. The device operates on a voltage range of 20 to 30 V DC with a current consumption of 120 mA at 24 V. It includes reverse polarity protection and a power on delay time of 5 seconds. The flow meter utilizes a magnetic-inductive measuring principle and provides two analogue outputs, each offering a scalable current signal from 4 to 20 mA, with a maximum load of 500 Ohm. It also includes overload protection to ensure consistent performance in various industrial environments.
Precise measurement of flow
Precise measurement of consumption and medium temperature
High accuracy
High repeatability and measurement dynamics
For use in water cooling circuits
With two precise analogue outputs
Clearly visible 4-digit LED display
