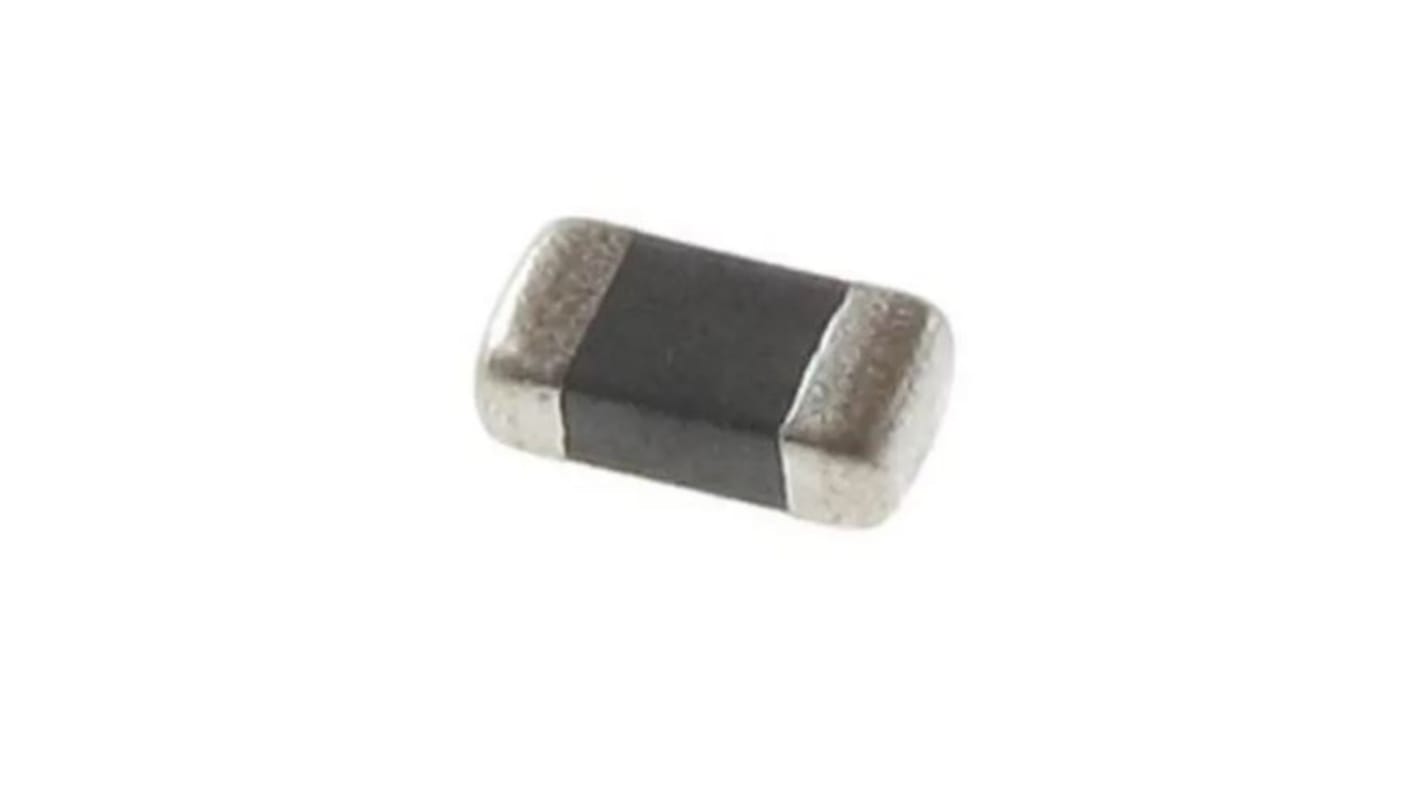

Murata Ferrite Bead 0.5 mm (Surface) (0402) (Chip Ferrite Bead), 111 Ω impedance at 25 MHz, 220 Ω impedance at 100 MHz,
- N° de stock RS:
- 223-4860
- Référence fabricant:
- BLM15EG221SH1D
- Fabricant:
- Murata
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 ruban de 100 unités)*
8,00 €
(TVA exclue)
10,00 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 8 600 unité(s) expédiée(s) à partir du 14 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le ruban* |
|---|---|---|
| 100 - 400 | 0,08 € | 8,00 € |
| 500 - 900 | 0,073 € | 7,30 € |
| 1000 - 1900 | 0,07 € | 7,00 € |
| 2000 - 4900 | 0,064 € | 6,40 € |
| 5000 + | 0,058 € | 5,80 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 223-4860
- Référence fabricant:
- BLM15EG221SH1D
- Fabricant:
- Murata
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Murata | |
| Product Type | Ferrite Bead | |
| Package Type | 0402 | |
| Impedance at 25 MHz | 111Ω | |
| Impedance at 50 MHz | 163Ω | |
| Packaging | 8mm wide Paper Tape | |
| Impedance at 100 MHz | 220Ω | |
| Impedance at 300 MHz | 273Ω | |
| Impedance at 1 GHz | 270Ω | |
| Sub Type | Chip Ferrite Bead | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Depth | 0.5mm | |
| Height | 0.5mm | |
| Standards/Approvals | AEC-Q200 | |
| Length | 1mm | |
| Automotive Standard | AEC-Q200 | |
| Application | Automotive Electronics | |
| Series | BLM15EG_SH | |
| Material | Ferrite | |
| Sélectionner tout | ||
|---|---|---|
Marque Murata | ||
Product Type Ferrite Bead | ||
Package Type 0402 | ||
Impedance at 25 MHz 111Ω | ||
Impedance at 50 MHz 163Ω | ||
Packaging 8mm wide Paper Tape | ||
Impedance at 100 MHz 220Ω | ||
Impedance at 300 MHz 273Ω | ||
Impedance at 1 GHz 270Ω | ||
Sub Type Chip Ferrite Bead | ||
Mount Type Surface | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Depth 0.5mm | ||
Height 0.5mm | ||
Standards/Approvals AEC-Q200 | ||
Length 1mm | ||
Automotive Standard AEC-Q200 | ||
Application Automotive Electronics | ||
Series BLM15EG_SH | ||
Material Ferrite | ||
- Pays d'origine :
- JP
The Murata BLM15EG series chip ferrite bead has excellent frequency impedance characteristics. It is suitable for noise suppression in 1GHz or higher frequency. It can be used in high current circuits due to its low DC resistance. It has impedance of 220 ohm.
No Lead production using Ni+Sn plating in termination
Operating temperature range from -55 °C to 125 °C
