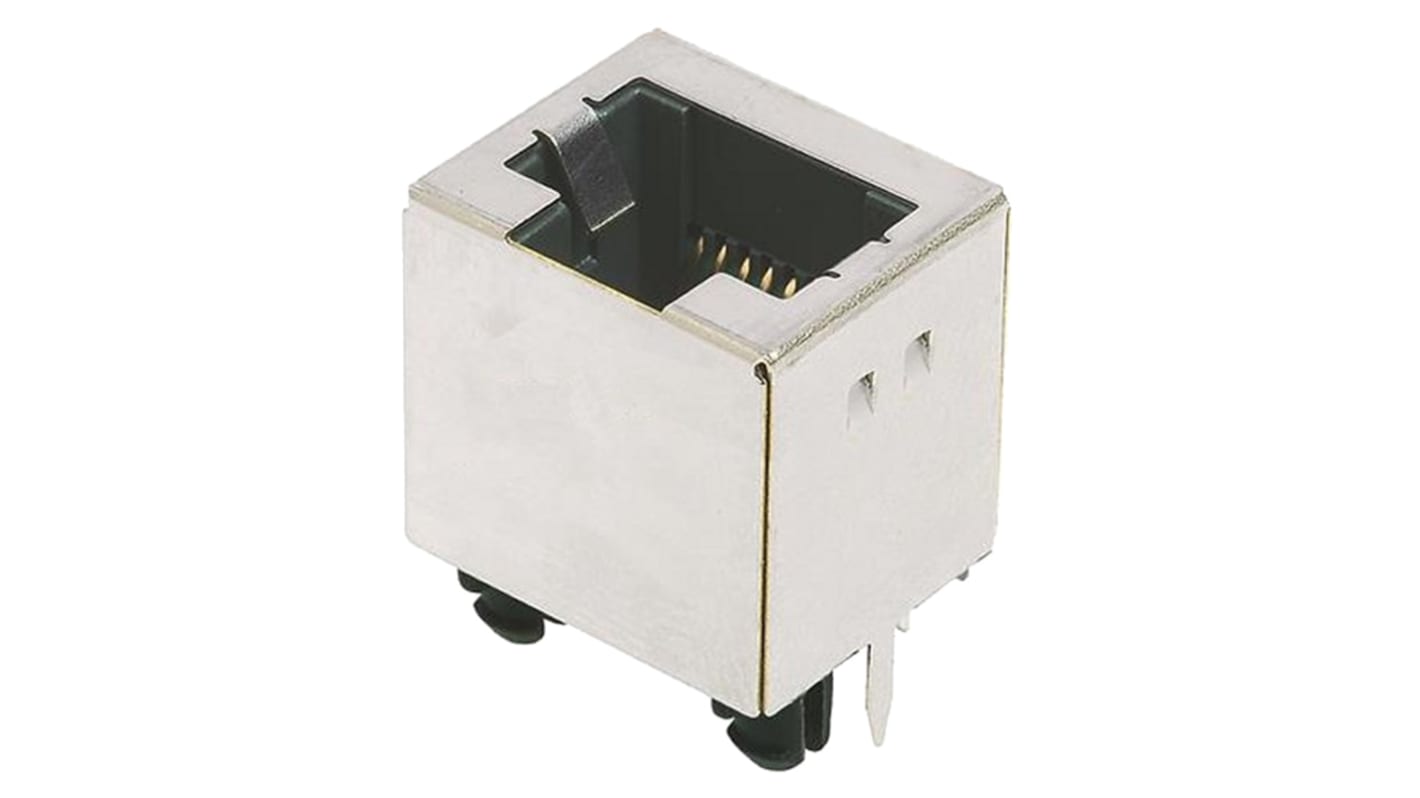

HARTING 0945 Series RJ45 Connector Female, Through Hole, Cat5 Shielded Straight 1 Port 8 Way
- N° de stock RS:
- 862-5644
- Référence fabricant:
- 09455511103
- Fabricant:
- HARTING
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
2,71 €
(TVA exclue)
3,28 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 113 unité(s) expédiée(s) à partir du 14 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 2,71 € |
| 10 - 49 | 2,59 € |
| 50 - 99 | 2,46 € |
| 100 - 249 | 2,16 € |
| 250 + | 2,04 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 862-5644
- Référence fabricant:
- 09455511103
- Fabricant:
- HARTING
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | HARTING | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat5 | |
| Number of Ports | 1 | |
| Mount Type | Through Hole | |
| Number of Ways | 8 | |
| Connector Type | Jack | |
| Connector Gender | Female | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 70°C | |
| Series | 0945 | |
| Width | 13.6mm | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Length | 16.15mm | |
| Depth | 16.3mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold over Nickel | |
| Sélectionner tout | ||
|---|---|---|
Marque HARTING | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat5 | ||
Number of Ports 1 | ||
Mount Type Through Hole | ||
Number of Ways 8 | ||
Connector Type Jack | ||
Connector Gender Female | ||
Shield Type Shielded | ||
Orientation Straight | ||
IP Rating IP20 | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 70°C | ||
Series 0945 | ||
Width 13.6mm | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Length 16.15mm | ||
Depth 16.3mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold over Nickel | ||
- Pays d'origine :
- TW
Harting RJ Industrial® Cat 5 RJ45 Jacks for Direct Device Integration
RJ Industrial® Cat 5 RJ45 jacks for Direct Device Integration with a compact, low profile design suitable for PoE (IEEE 802.3af) and PoE+(IEEE 802.3at) 1Gbit and 10/100Mbit Ethernet applications. These RJ Industrial® Cat 5 RJ45 jacks are shielded with UL-94-V0 black plastic housings and gold plated contacts.
Stock number 862-5641 is a right angle surface mounting RJ Industrial® Cat 5 RJ45 jack
Stock number 862-5644 is a vertical through hole mounting RJ Industrial® Cat 5 RJ45 jack
