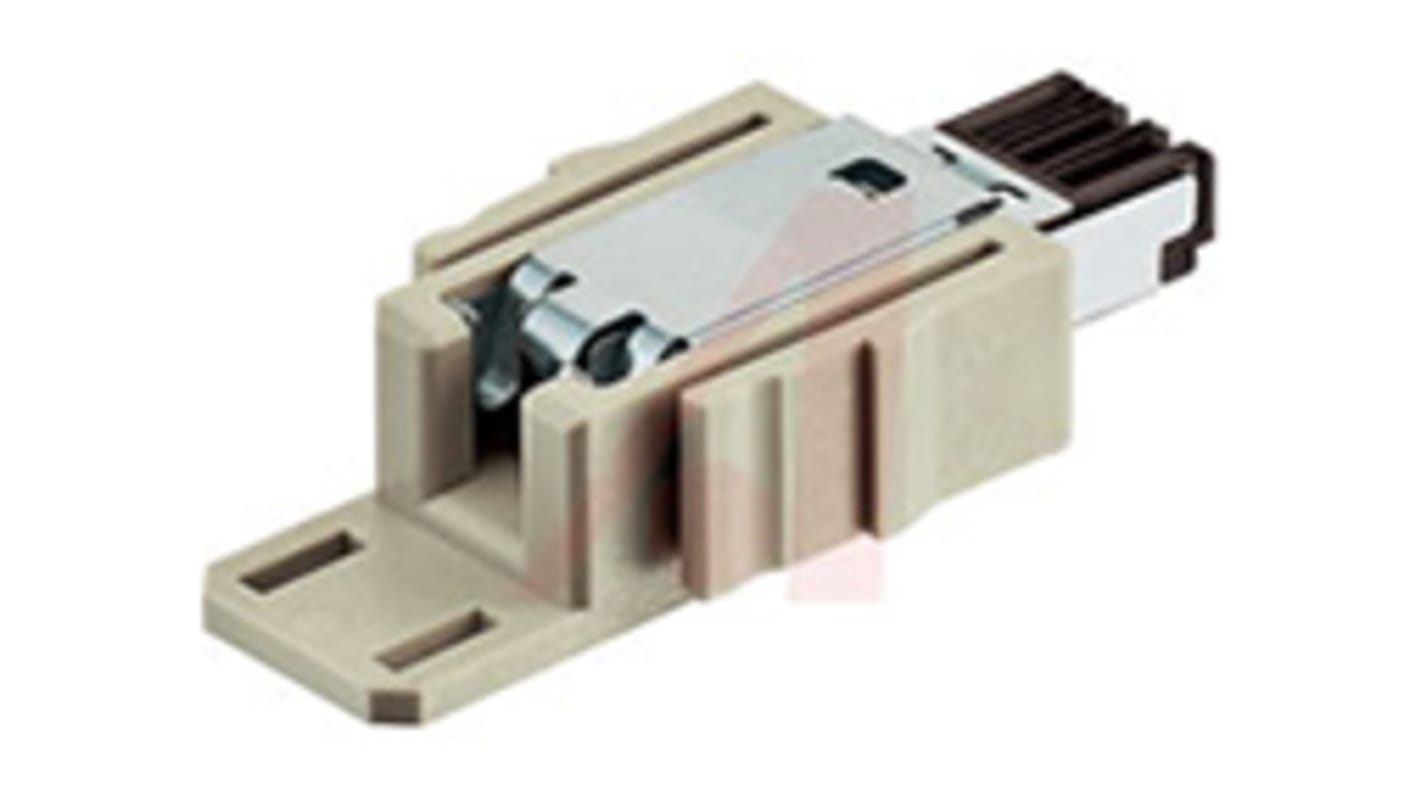

HARTING Han-Modular Series RJ45 Connector Male, Surface, Cat5 Shielded Straight 1 Port 4 Way
- N° de stock RS:
- 843-9087
- Numéro d'article Distrelec:
- 300-78-640
- Référence fabricant:
- 09454001100
- Fabricant:
- HARTING
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
25,55 €
(TVA exclue)
30,92 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 45 unité(s) prête(s) à être expédiée(s)
- Plus 68 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 25,55 € |
| 10 - 24 | 21,70 € |
| 25 - 49 | 19,13 € |
| 50 + | 16,61 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 843-9087
- Numéro d'article Distrelec:
- 300-78-640
- Référence fabricant:
- 09454001100
- Fabricant:
- HARTING
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | HARTING | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat5 | |
| Mount Type | Surface | |
| Number of Ports | 1 | |
| Number of Ways | 4 | |
| Connector Gender | Male | |
| Connector Type | Plug | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| Termination Type | Press Fit | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Series | Han-Modular | |
| Width | 23.3mm | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Length | 13mm | |
| Depth | 57.3mm | |
| Contact Plating | Gold over Nickel | |
| Sélectionner tout | ||
|---|---|---|
Marque HARTING | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat5 | ||
Mount Type Surface | ||
Number of Ports 1 | ||
Number of Ways 4 | ||
Connector Gender Male | ||
Connector Type Plug | ||
Shield Type Shielded | ||
Orientation Straight | ||
Termination Type Press Fit | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Series Han-Modular | ||
Width 23.3mm | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Length 13mm | ||
Depth 57.3mm | ||
Contact Plating Gold over Nickel | ||
- Pays d'origine :
- RO
Han Modular Accessories
Complete range of Han Modular accessories.
Polyamide housing material
Harting Han® Modular
The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.
