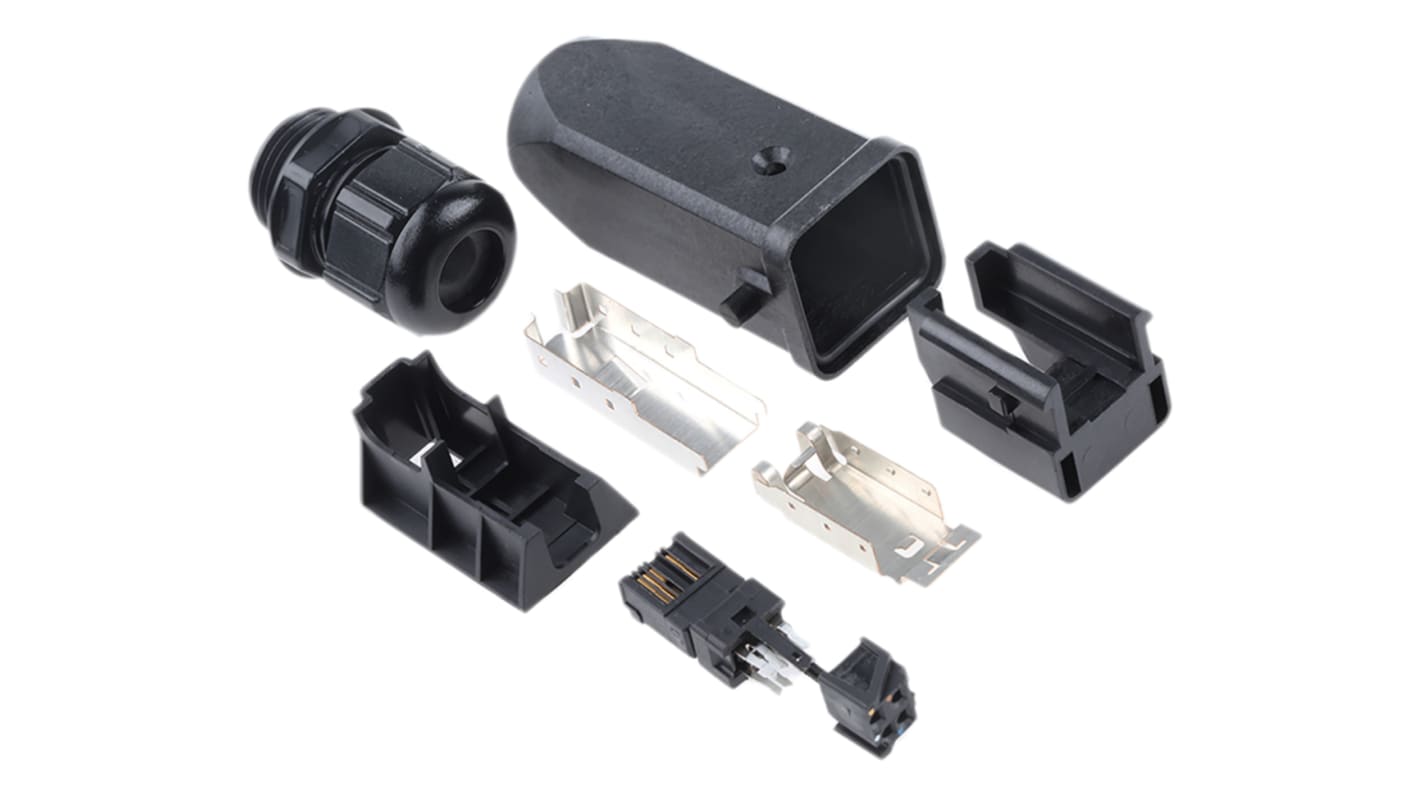

HARTING 9451 Series RJ45 Connector Male, Panel Mount, Cat5 Shielded Straight 1 Port 4 Way
- N° de stock RS:
- 465-9735
- Référence fabricant:
- 09451251100
- Fabricant:
- HARTING
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
33,91 €
(TVA exclue)
41,03 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 1 unité(s) prête(s) à être expédiée(s)
- Plus 27 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 33,91 € |
| 10 - 24 | 30,61 € |
| 25 + | 30,49 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 465-9735
- Référence fabricant:
- 09451251100
- Fabricant:
- HARTING
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | HARTING | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat5 | |
| Mount Type | Panel Mount | |
| Number of Ports | 1 | |
| Number of Ways | 4 | |
| Connector Type | RJ45 | |
| Connector Gender | Male | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| IP Rating | IP67 | |
| Termination Type | IDC | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Depth | 99.35mm | |
| Standards/Approvals | No | |
| Series | 9451 | |
| Hazardous Area Certification | No | |
| Width | 99.35mm | |
| Length | 35.3mm | |
| Contact Plating | Gold | |
| Sélectionner tout | ||
|---|---|---|
Marque HARTING | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat5 | ||
Mount Type Panel Mount | ||
Number of Ports 1 | ||
Number of Ways 4 | ||
Connector Type RJ45 | ||
Connector Gender Male | ||
Shield Type Shielded | ||
Orientation Straight | ||
IP Rating IP67 | ||
Termination Type IDC | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Depth 99.35mm | ||
Standards/Approvals No | ||
Series 9451 | ||
Hazardous Area Certification No | ||
Width 99.35mm | ||
Length 35.3mm | ||
Contact Plating Gold | ||
- Pays d'origine :
- RO
IP67 Han® 3A Based Data Connectors and Panel Receptacles
Metal and plastic bodied RJ45 data connectors and panel receptacles utilising the proven Harting Han® 3A housing which provide a Proven and reliable secure connection. An optional coding pin set enables dedicated connectivity between connector and panel receptacle.
Features & Benefits
Cable sheath diameter 6.5 mm to 6.9mm;Minimum 750 mating cycles
