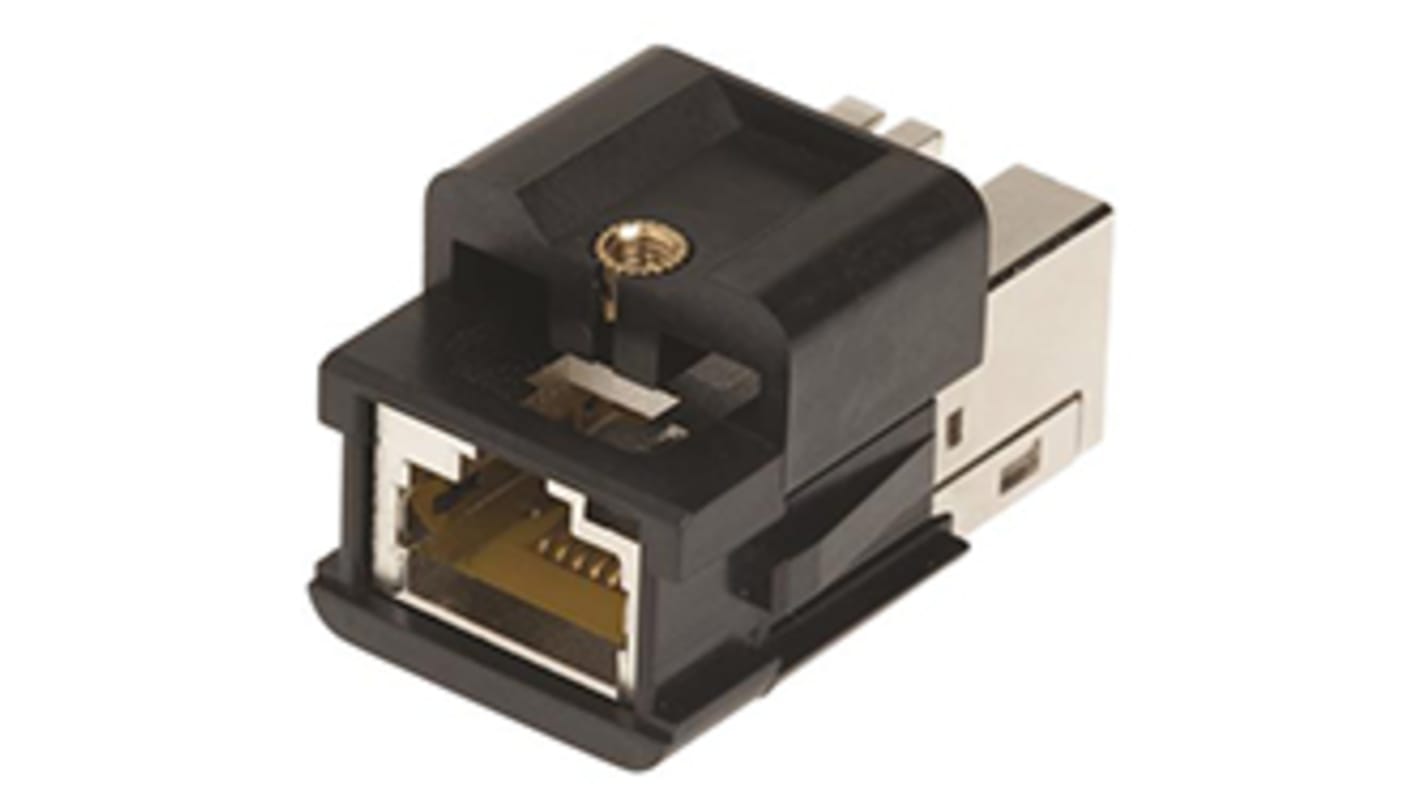

HARTING HAN 3A Series RJ45 Connector Female, Panel Mount, Cat6 Shielded Straight 1 Port 8 Way
- N° de stock RS:
- 843-6505
- Référence fabricant:
- 09452001560
- Fabricant:
- HARTING
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
34,48 €
(TVA exclue)
41,72 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 14 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 49 | 34,48 € |
| 50 - 99 | 33,56 € |
| 100 - 499 | 32,65 € |
| 500 + | 31,82 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 843-6505
- Référence fabricant:
- 09452001560
- Fabricant:
- HARTING
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | HARTING | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat6 | |
| Mount Type | Panel Mount | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Gender | Female | |
| Connector Type | Plug | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| IP Rating | IP67, IP65 | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Press Fit | |
| Maximum Operating Temperature | 70°C | |
| Series | HAN 3A | |
| Depth | 36.3mm | |
| Hazardous Area Certification | No | |
| Length | 21.2mm | |
| Standards/Approvals | No | |
| Width | 21.5mm | |
| Sélectionner tout | ||
|---|---|---|
Marque HARTING | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat6 | ||
Mount Type Panel Mount | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Gender Female | ||
Connector Type Plug | ||
Shield Type Shielded | ||
Orientation Straight | ||
IP Rating IP67, IP65 | ||
Minimum Operating Temperature -40°C | ||
Termination Type Press Fit | ||
Maximum Operating Temperature 70°C | ||
Series HAN 3A | ||
Depth 36.3mm | ||
Hazardous Area Certification No | ||
Length 21.2mm | ||
Standards/Approvals No | ||
Width 21.5mm | ||
- Pays d'origine :
- RO
Han® 3A RJ45 10G
These Harting Han® 3A RJ45 10G connectors comprise of only two parts, the movable cable manager mounted on the connector body allows the simple insertion of wires and always guarantees a fault free circuit. For rapid identification of the correct position of the coloured individual wires, the cable manager has a label containing a circuit plan. After wiring the connector a portion of the label remains on the plug thus allowing simple recognition of the relative contact position in the cable manager on re-wiring these Harting Han 3A RJ45 10G connectors. All models are highly reliable and excellent quality.
Features & Benefits
• Field installable using IDC-technology;• For solid and stranded wire AWG 27 to AWG 22;• Cat. 6, transfer class EA, suitable for 1/10 Gigabit Ethernet;• Temperature range –40°C to +70 °C;• Degree of protection IP65 / IP67
Note
Cable not included.
