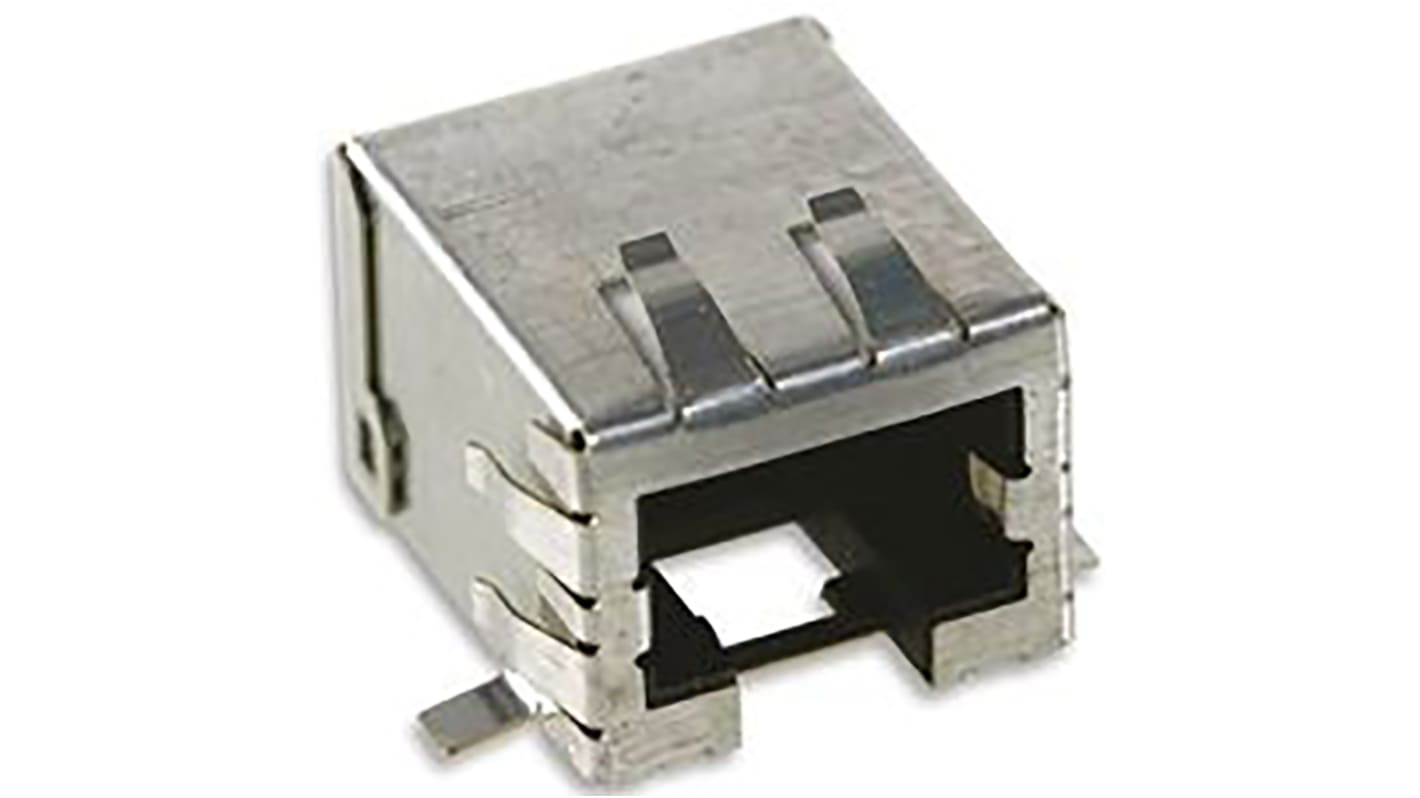

Molex 85543 Series RJ45 Connector Female, Surface, Cat5e Shielded Right Angle 1 Port 8 Way

N° de stock RS:: 188-8787
Référence fabricant:: 85543-7001
Fabricant:: Molex

Molex 85543 Series RJ45 Connector Female, Surface, Cat5e Shielded Right Angle 1 Port 8 Way

Visuel non contractuel

Sous-total (1 bobine de 903 unités)*

2 704,49 €

(TVA exclue)

3 272,47 €

(TVA incluse)

Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard

Unité	Prix par unité	la bobine*
903 +	2,995 €	2 704,49 €

*Prix donné à titre indicatif

N° de stock RS:: 188-8787
Référence fabricant:: 85543-7001
Fabricant:: Molex

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Molex
	Product Type	RJ45 Connector
	Ethernet Connector Type	RJ45
	LAN Category	Cat5e
	Mount Type	Surface
	Number of Ports	1
	Number of Ways	8
	Connector Gender	Female
	Connector Type	Modular Jack
	Shield Type	Shielded
	Magnetic	No
	Orientation	Right Angle
	LED	No
	Light Pipes	No
	Termination Type	Solder
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Width	20.9mm
	Length	22.5mm
	Hazardous Area Certification	No
	Standards/Approvals	No
	Series	85543
	Depth	13.9mm
	Contact Material	Phosphor Bronze
	Contact Plating	Gold over Nickel

	Sélectionner tout
	Marque Molex
	Product Type RJ45 Connector
	Ethernet Connector Type RJ45
	LAN Category Cat5e
	Mount Type Surface
	Number of Ports 1
	Number of Ways 8
	Connector Gender Female
	Connector Type Modular Jack
	Shield Type Shielded
	Magnetic No
	Orientation Right Angle
	LED No
	Light Pipes No
	Termination Type Solder
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Width 20.9mm
	Length 22.5mm
	Hazardous Area Certification No
	Standards/Approvals No
	Series 85543
	Depth 13.9mm
	Contact Material Phosphor Bronze
	Contact Plating Gold over Nickel

Datasheet 85543-7001

Pays d'origine :: IE

Molex 85543 Series Cat 5e Right Angle Shielded RJ45 Modular Jack

85543 series Cat 5e through hole right angle mount high speed fully shielded RJ45 modular jack. This Cat 5e RJ45 modular jack has PCB retention, external shielding for advanced EMI/RFI protection, 0.10mm coplanarity and is SMT compatible. For mating RJ45 plug connectors see 95043 series.

Molex 85543 Series RJ45 Connector Female, Surface, Cat5e Shielded Right Angle 1 Port 8 Way

Molex 85543 Series Cat 5e Right Angle Shielded RJ45 Modular Jack
