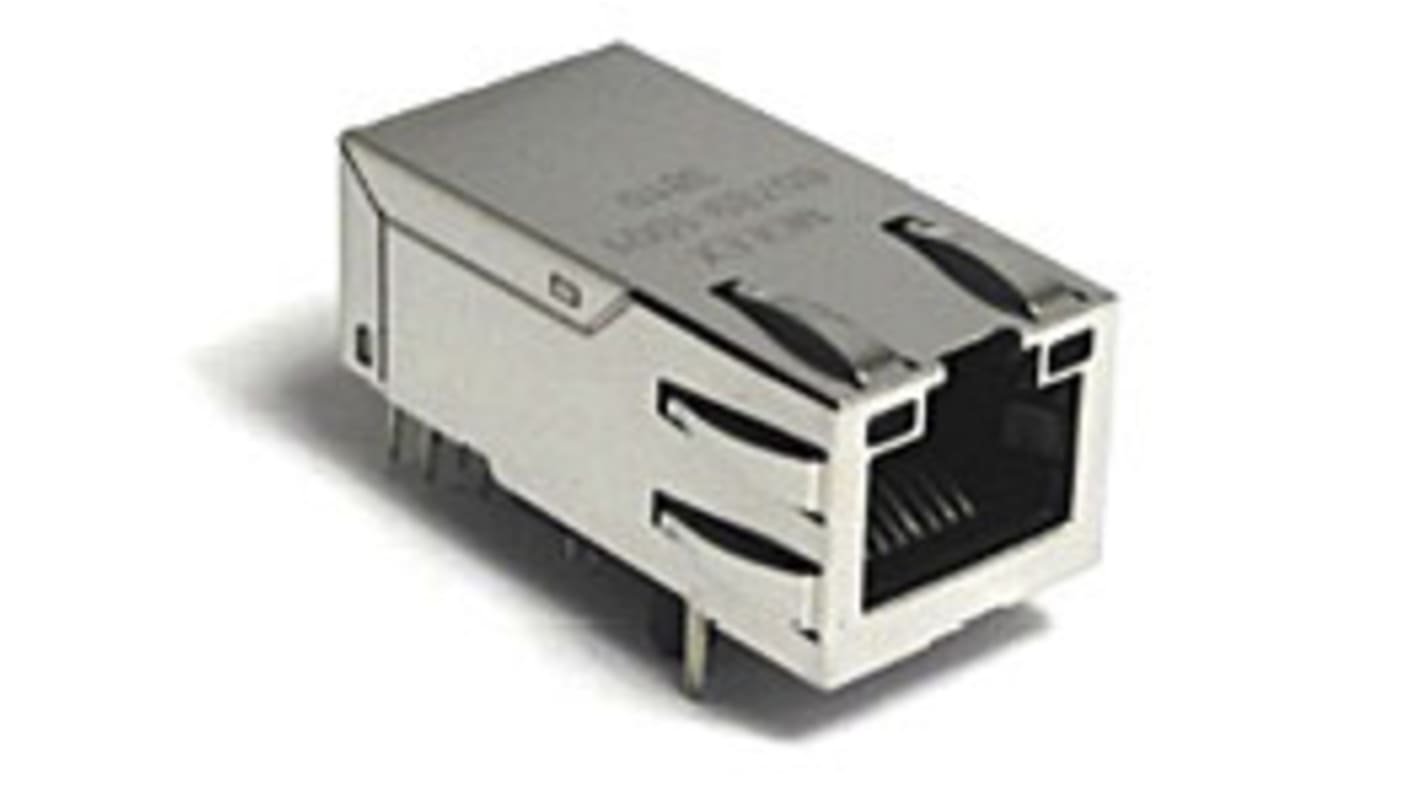

Molex 85793 Series RJ45 Connector Female, Through Hole, Cat5, Cat5e Shielded Right Angle 1 Port 8 Way
- N° de stock RS:
- 178-9329
- Référence fabricant:
- 85793-1012
- Fabricant:
- Molex
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 boîte de 396 unités)*
3 504,60 €
(TVA exclue)
4 241,16 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 19 avril 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | La Boite* |
|---|---|---|
| 396 - 396 | 8,85 € | 3 504,60 € |
| 792 - 1584 | 8,345 € | 3 304,62 € |
| 1980 - 3564 | 8,098 € | 3 206,81 € |
| 3960 + | 7,894 € | 3 126,02 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 178-9329
- Référence fabricant:
- 85793-1012
- Fabricant:
- Molex
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Molex | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat5, Cat5e | |
| Number of Ports | 1 | |
| Mount Type | Through Hole | |
| Number of Ways | 8 | |
| Connector Type | Jack | |
| Connector Gender | Female | |
| Shield Type | Shielded | |
| Orientation | Right Angle | |
| Magnetic | Yes | |
| LED | Yes | |
| Termination Type | Solder | |
| Light Pipes | No | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 13.87mm | |
| Series | 85793 | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Length | 16.79mm | |
| Depth | 33.02mm | |
| Contact Material | Phosphor Bronze, Brass | |
| Contact Plating | Tin, Gold | |
| Sélectionner tout | ||
|---|---|---|
Marque Molex | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat5, Cat5e | ||
Number of Ports 1 | ||
Mount Type Through Hole | ||
Number of Ways 8 | ||
Connector Type Jack | ||
Connector Gender Female | ||
Shield Type Shielded | ||
Orientation Right Angle | ||
Magnetic Yes | ||
LED Yes | ||
Termination Type Solder | ||
Light Pipes No | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Width 13.87mm | ||
Series 85793 | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
Length 16.79mm | ||
Depth 33.02mm | ||
Contact Material Phosphor Bronze, Brass | ||
Contact Plating Tin, Gold | ||
- Pays d'origine :
- CN
Gigabit Magnetic Jack, 1x1 LEDs: Yellow/Green- Green
