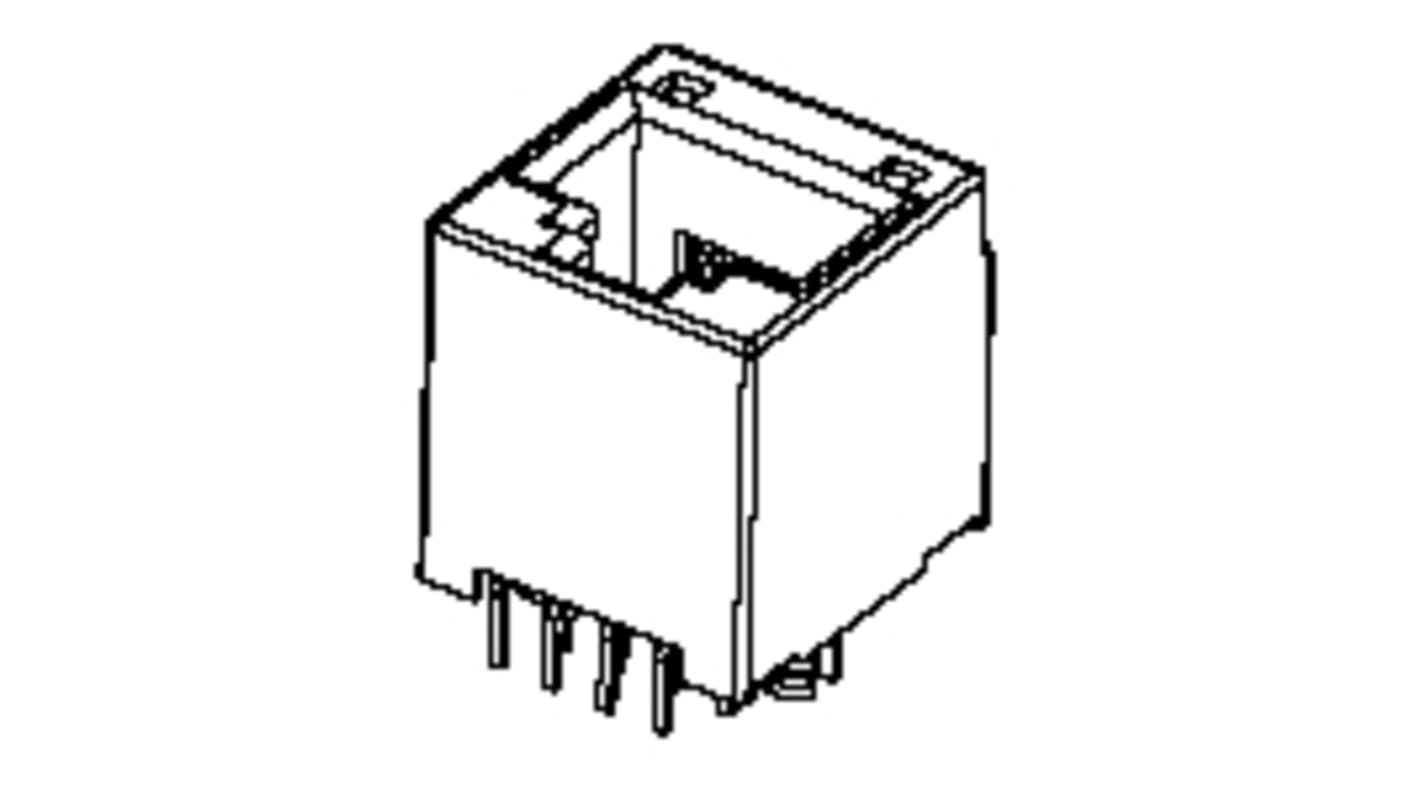

Molex 95503 Series RJ45 Connector Female, Surface, Cat3 Unshielded Vertical 1 Port 6 Way
- N° de stock RS:
- 178-9752
- Référence fabricant:
- 95503-2641
- Fabricant:
- Molex
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 plateau de 1547 unités)*
1 547,00 €
(TVA exclue)
1 871,87 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 11 janvier 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le plateau* |
|---|---|---|
| 1547 - 1547 | 1,00 € | 1 547,00 € |
| 3094 - 6188 | 0,891 € | 1 378,38 € |
| 7735 - 13923 | 0,867 € | 1 341,25 € |
| 15470 + | 0,844 € | 1 305,67 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 178-9752
- Référence fabricant:
- 95503-2641
- Fabricant:
- Molex
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Molex | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat3 | |
| Number of Ports | 1 | |
| Mount Type | Surface | |
| Number of Ways | 6 | |
| Connector Type | Modular Jack | |
| Connector Gender | Female | |
| Shield Type | Unshielded | |
| Orientation | Vertical | |
| Magnetic | No | |
| LED | No | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Light Pipes | No | |
| Maximum Operating Temperature | 85°C | |
| Series | 95503 | |
| Standards/Approvals | No | |
| Width | 15.08mm | |
| Hazardous Area Certification | No | |
| Length | 13.21mm | |
| Depth | 15.7mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin | |
| Sélectionner tout | ||
|---|---|---|
Marque Molex | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat3 | ||
Number of Ports 1 | ||
Mount Type Surface | ||
Number of Ways 6 | ||
Connector Type Modular Jack | ||
Connector Gender Female | ||
Shield Type Unshielded | ||
Orientation Vertical | ||
Magnetic No | ||
LED No | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Light Pipes No | ||
Maximum Operating Temperature 85°C | ||
Series 95503 | ||
Standards/Approvals No | ||
Width 15.08mm | ||
Hazardous Area Certification No | ||
Length 13.21mm | ||
Depth 15.7mm | ||
Contact Material Copper Alloy | ||
Contact Plating Tin | ||
- Pays d'origine :
- IE
Modular Jack, Vertical, Top Entry, Through Hole, 6/4, No Key Version, Tray
