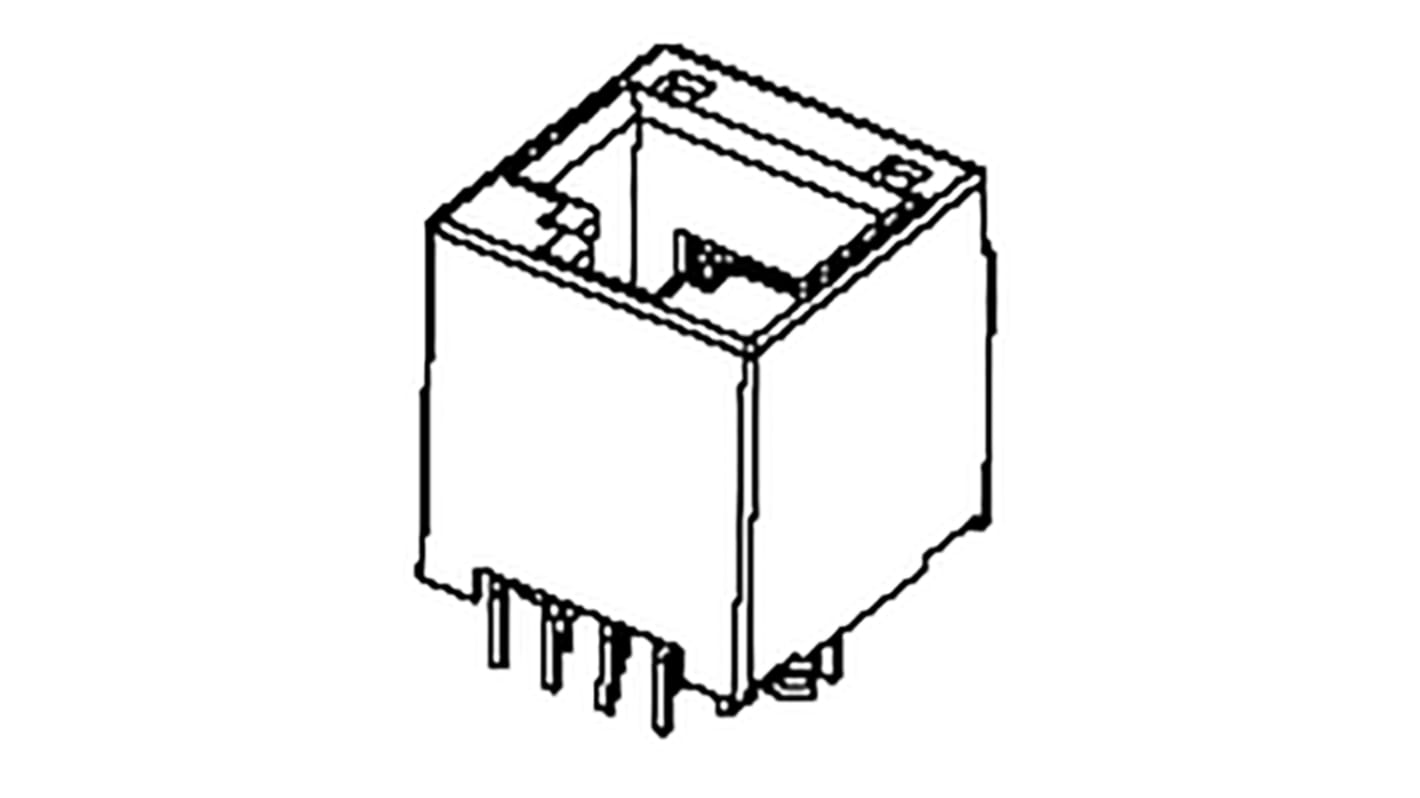

Molex 95503 Series RJ45 Connector Female, Through Hole, Cat3 Unshielded Vertical 1 Port 8 Way
- N° de stock RS:
- 178-9401
- Référence fabricant:
- 95503-2884
- Fabricant:
- Molex
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 paquet de 10 unités)*
10,30 €
(TVA exclue)
12,50 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 120 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 790 unité(s) expédiée(s) à partir du 14 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 10 - 40 | 1,03 € | 10,30 € |
| 50 - 90 | 0,954 € | 9,54 € |
| 100 - 240 | 0,888 € | 8,88 € |
| 250 - 990 | 0,832 € | 8,32 € |
| 1000 + | 0,785 € | 7,85 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 178-9401
- Référence fabricant:
- 95503-2884
- Fabricant:
- Molex
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Molex | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat3 | |
| Number of Ports | 1 | |
| Mount Type | Through Hole | |
| Number of Ways | 8 | |
| Connector Type | Modular Jack | |
| Connector Gender | Female | |
| Shield Type | Unshielded | |
| Orientation | Vertical | |
| Magnetic | No | |
| LED | No | |
| Light Pipes | No | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Length | 15.24mm | |
| Series | 95503 | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Depth | 15.08mm | |
| Width | 15.7mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel Palladium | |
| Sélectionner tout | ||
|---|---|---|
Marque Molex | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat3 | ||
Number of Ports 1 | ||
Mount Type Through Hole | ||
Number of Ways 8 | ||
Connector Type Modular Jack | ||
Connector Gender Female | ||
Shield Type Unshielded | ||
Orientation Vertical | ||
Magnetic No | ||
LED No | ||
Light Pipes No | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Length 15.24mm | ||
Series 95503 | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
Depth 15.08mm | ||
Width 15.7mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel Palladium | ||
- Pays d'origine :
- CN
Modular Jack, Vertical, Top Entry, Through Hole, 8/8, No Key Version, Short, Tray
