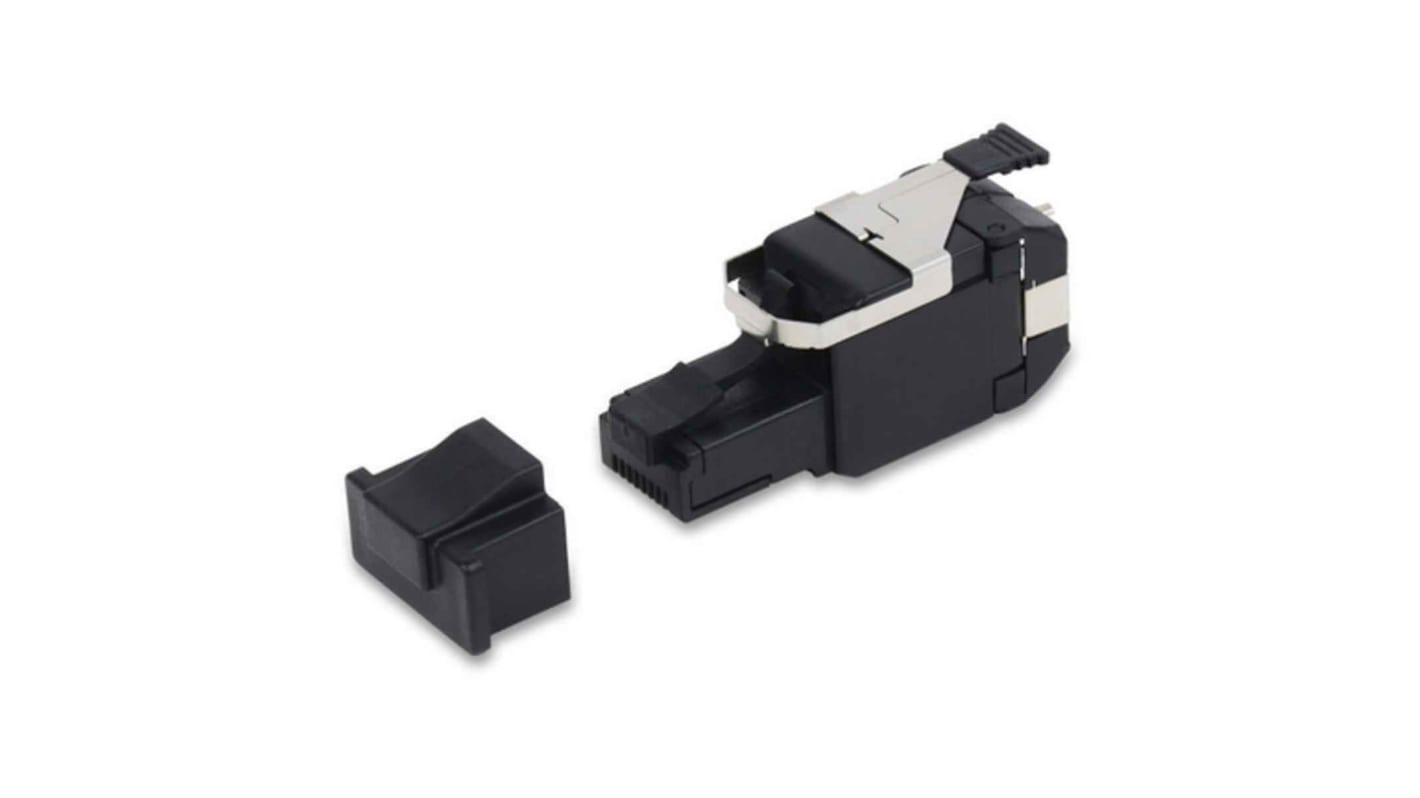

Belden REVConnect Series RJ45 Connector Male, Cable, Cat6a UTP Shield Straight 1 Port
- N° de stock RS:
- 176-3692
- Référence fabricant:
- RVAFPUBK-B24
- Fabricant:
- Belden
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 paquet de 24 unités)*
354,19 €
(TVA exclue)
428,57 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 11 janvier 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 24 - 24 | 14,758 € | 354,19 € |
| 48 - 96 | 13,68 € | 328,32 € |
| 120 - 216 | 12,75 € | 306,00 € |
| 240 - 456 | 11,939 € | 286,54 € |
| 480 + | 11,215 € | 269,16 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 176-3692
- Référence fabricant:
- RVAFPUBK-B24
- Fabricant:
- Belden
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Belden | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat6a | |
| Mount Type | Cable | |
| Number of Ports | 1 | |
| Connector Gender | Male | |
| Connector Type | Field Mount Plug | |
| Shield Type | UTP | |
| Orientation | Straight | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Length | 27.94mm | |
| Width | 45.97mm | |
| Series | REVConnect | |
| Standards/Approvals | No | |
| Depth | 18.54mm | |
| Hazardous Area Certification | No | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold Over Palladium Nickel | |
| Sélectionner tout | ||
|---|---|---|
Marque Belden | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat6a | ||
Mount Type Cable | ||
Number of Ports 1 | ||
Connector Gender Male | ||
Connector Type Field Mount Plug | ||
Shield Type UTP | ||
Orientation Straight | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Length 27.94mm | ||
Width 45.97mm | ||
Series REVConnect | ||
Standards/Approvals No | ||
Depth 18.54mm | ||
Hazardous Area Certification No | ||
Contact Material Copper Alloy | ||
Contact Plating Gold Over Palladium Nickel | ||
- Pays d'origine :
- DK
Belden REVConnect 10GX UTP Field Mount Plug
Field-Mount Plugs are available in unshielded (UTP) and shielded (STP), colour-coded TIA-568 A/B for universal wiring. They come supplied with an insulation piercing contact (IPC) terminated core that provides a quick, easy and reliable termination onto various cable sizes. The new plugs are ideal for direct connections to wireless access points, IP cameras and various IP devices. The REVConnect FlexPlug enables the award-winning REVConnect termination to be deployed in applications where the size of a typical field terminated plug inhibits direct connection to IoT devices with size and cable routing constraints. Indoor/Outdoor FlexPlugs are Outdoor-rated and UV-resistantand can be deployed in applications where typical field-terminated plugs can’t be used.
Features and Benefits:
Reduce Inventory: Intermateable with all modular jacks
REVConnect: Provides material and labour savings
Reliable: Supports the most demanding network applications
REVConnect: Requires no pair separation step, the best connector for bonded and non-bonded cable
REVConnect: Terminates 4 pairs simultaneously with Belden's Universal Termination Tool
