Phoenix Contact CUC-K-J1ZNI-S/R4IDC8 Series RJ45 Connector Female, Panel Mount, Cat6a Shielded Straight 1 Port 8 Way
- N° de stock RS:
- 130-2309
- Référence fabricant:
- 1419021
- Fabricant:
- Phoenix Contact
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
18,34 €
(TVA exclue)
22,19 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 14 octobre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 18,34 € |
| 5 - 24 | 16,07 € |
| 25 - 49 | 14,25 € |
| 50 - 99 | 12,84 € |
| 100 + | 11,67 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 130-2309
- Référence fabricant:
- 1419021
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat6a | |
| Number of Ports | 1 | |
| Mount Type | Panel Mount | |
| Number of Ways | 8 | |
| Connector Type | RJ45 | |
| Connector Gender | Female | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Termination Type | IDC | |
| Maximum Operating Temperature | 70°C | |
| Length | 17.9mm | |
| Depth | 22.4mm | |
| Width | 34.9mm | |
| Series | CUC-K-J1ZNI-S/R4IDC8 | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat6a | ||
Number of Ports 1 | ||
Mount Type Panel Mount | ||
Number of Ways 8 | ||
Connector Type RJ45 | ||
Connector Gender Female | ||
Shield Type Shielded | ||
Orientation Straight | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Termination Type IDC | ||
Maximum Operating Temperature 70°C | ||
Length 17.9mm | ||
Depth 22.4mm | ||
Width 34.9mm | ||
Series CUC-K-J1ZNI-S/R4IDC8 | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
- Pays d'origine :
- PL

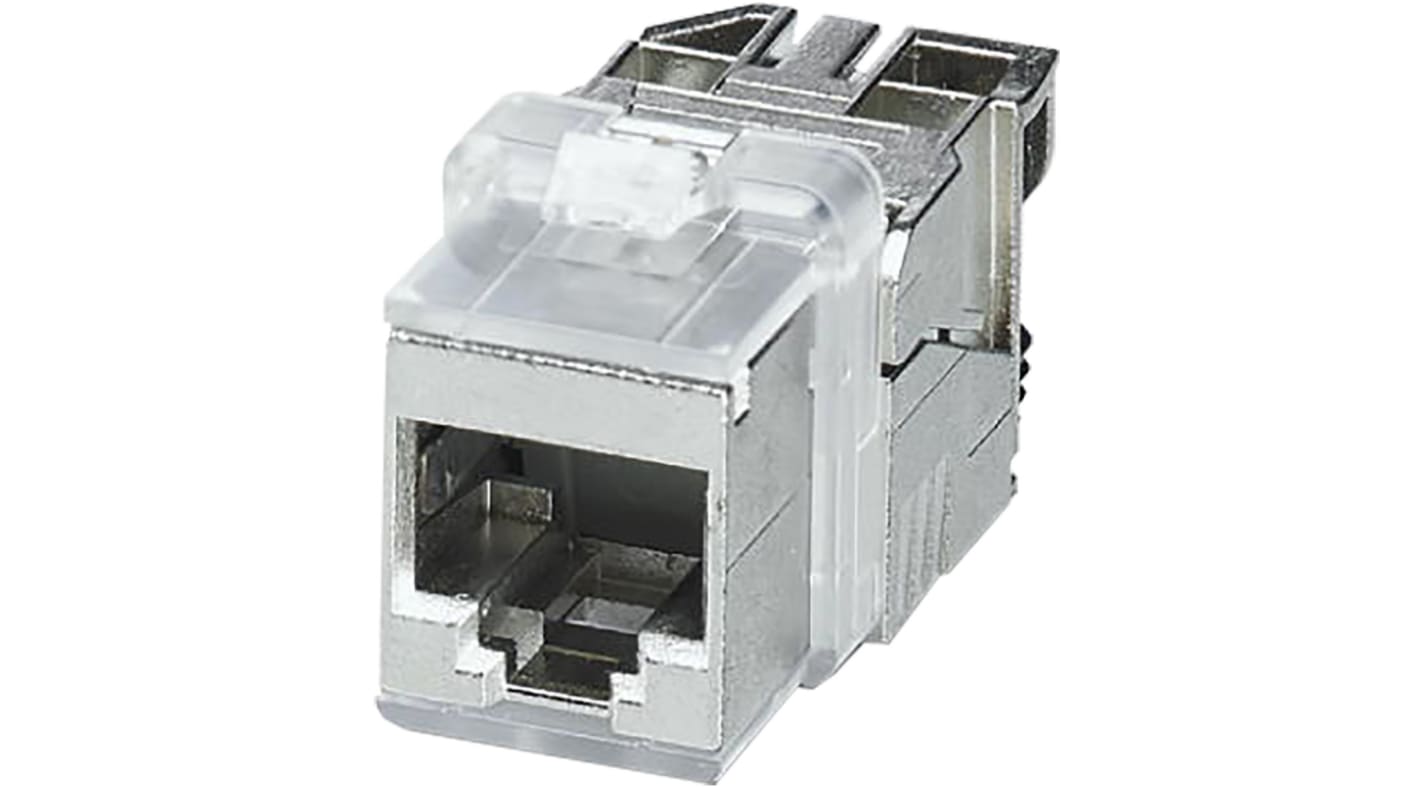

RJ45 Cat6a IP20 Socket Inserts - CUC Series
Professional 8 position RJ45 socket inserts from Phoenix Contact for use with panel mounting frames. The Cat6a 10 Gbit/s socket inserts are constructed from a robust diecast zinc housing and have an IP20 protection class. The RJ45 socket inserts have an IDC connection method and accommodate 26 AWG to 22 AWG solid or stranded wires. All models are highly reliable and excellent quality.
Features and Benefits
Cat6a performance;IP20 ingress protection;IDC connection;10 Gbit/s
Applications
Part number 130-2306 for use with push-pull interlocking;Part number 130-2308 for use with the Freenet system;Part number 130-2309 for use with the Keystone system
