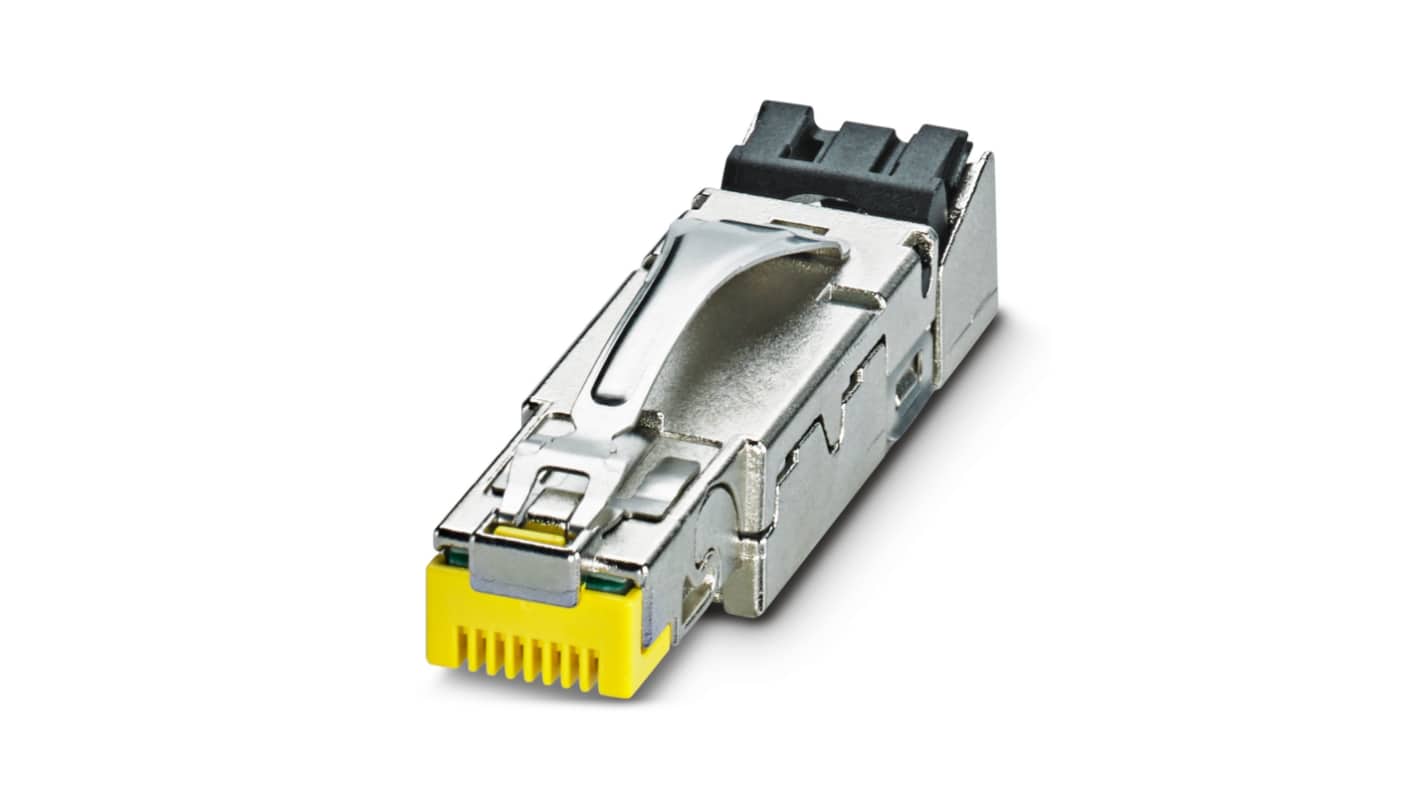

Phoenix Contact CUC-IND-C1ZNI-S/R4IE10G8 Series RJ45 Connector Male, Snap-in, Cat6a Shielded Straight 1 Port 8 Way

N° de stock RS:: 240-1142
Référence fabricant:: 1149846
Fabricant:: Phoenix Contact

Phoenix Contact CUC-IND-C1ZNI-S/R4IE10G8 Series RJ45 Connector Male, Snap-in, Cat6a Shielded Straight 1 Port 8 Way

Sous-total (1 unité)*

28,96 €

(TVA exclue)

35,04 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

Temporairement en rupture de stock

50 unité(s) expédiée(s) à partir du 18 septembre 2026
Plus 23 unité(s) expédiée(s) à partir du 09 octobre 2026
Plus 36 unité(s) expédiée(s) à partir du 30 octobre 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	28,96 €

*Prix donné à titre indicatif

N° de stock RS:: 240-1142
Référence fabricant:: 1149846
Fabricant:: Phoenix Contact

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Phoenix Contact
	Product Type	RJ45 Connector
	Ethernet Connector Type	RJ45
	LAN Category	Cat6a
	Mount Type	Snap-in
	Number of Ports	1
	Number of Ways	8
	Connector Gender	Male
	Connector Type	RJ45
	Shield Type	Shielded
	Magnetic	No
	Orientation	Straight
	IP Rating	IP20
	LED	No
	Minimum Operating Temperature	-40°C
	Light Pipes	No
	Termination Type	Cable
	Maximum Operating Temperature	85°C
	Hazardous Area Certification	No
	Standards/Approvals	RoHS, IEC, EAC, cULus
	Length	53mm
	Depth	13.6mm
	Series	CUC-IND-C1ZNI-S/R4IE10G8
	Width	13.65mm
	Contact Material	Copper Tin
	Contact Plating	Gold over Nickel

	Sélectionner tout
	Marque Phoenix Contact
	Product Type RJ45 Connector
	Ethernet Connector Type RJ45
	LAN Category Cat6a
	Mount Type Snap-in
	Number of Ports 1
	Number of Ways 8
	Connector Gender Male
	Connector Type RJ45
	Shield Type Shielded
	Magnetic No
	Orientation Straight
	IP Rating IP20
	LED No
	Minimum Operating Temperature -40°C
	Light Pipes No
	Termination Type Cable
	Maximum Operating Temperature 85°C
	Hazardous Area Certification No
	Standards/Approvals RoHS, IEC, EAC, cULus
	Length 53mm
	Depth 13.6mm
	Series CUC-IND-C1ZNI-S/R4IE10G8
	Width 13.65mm
	Contact Material Copper Tin
	Contact Plating Gold over Nickel

Se connecter pour voir les modèles CAO

Pays d'origine :: PL

Phoenix Contact CUC-IND-C1ZNI-S/R4IE10G8 Series RJ45 Connector, Cat6a LAN Category, IP20 - 1149846

This RJ45 connector is designed for robust Ethernet connectivity across various applications. Its shielded construction, measuring 53mm in length and 13.65mm in width, ensures reliable data transmission. The connector supports Cat6a performance, enabling high-speed networking up to 10 Gbps while adhering to environmental and safety standards.

Features & Benefits

• Simple assembly using insulation displacement connection technology

• 360° shielding enhances transmission reliability

• Facilitates high-speed data transfer at 10 Gbps

• Suitable for field repairs without special tools

• IP20 rating protects against dust and foreign objects

• Constructed to endure vibrations and shocks

Applications

• Utilised in automation systems for dependable communication

• Ideal for electronics necessitating fast data exchange

• Appropriate for mechanical installations requiring durable connectors

• Effective in electrical fields with significant connectivity needs

Can it handle varying temperature ranges?

Yes, it operates within -40°C to 85°C.

Will it support professional networking equipment?

Yes, it is compatible with devices that require high-speed connections.

Is it appropriate for industrial environments?

Yes, its shielding and durability are suitable for industrial applications.

Does it require specific tools for installation?

No, it can be mounted without any special tools.

Can it be used with flexible cables?

Yes, it accommodates wire sizes from AWG26 to AWG24.
