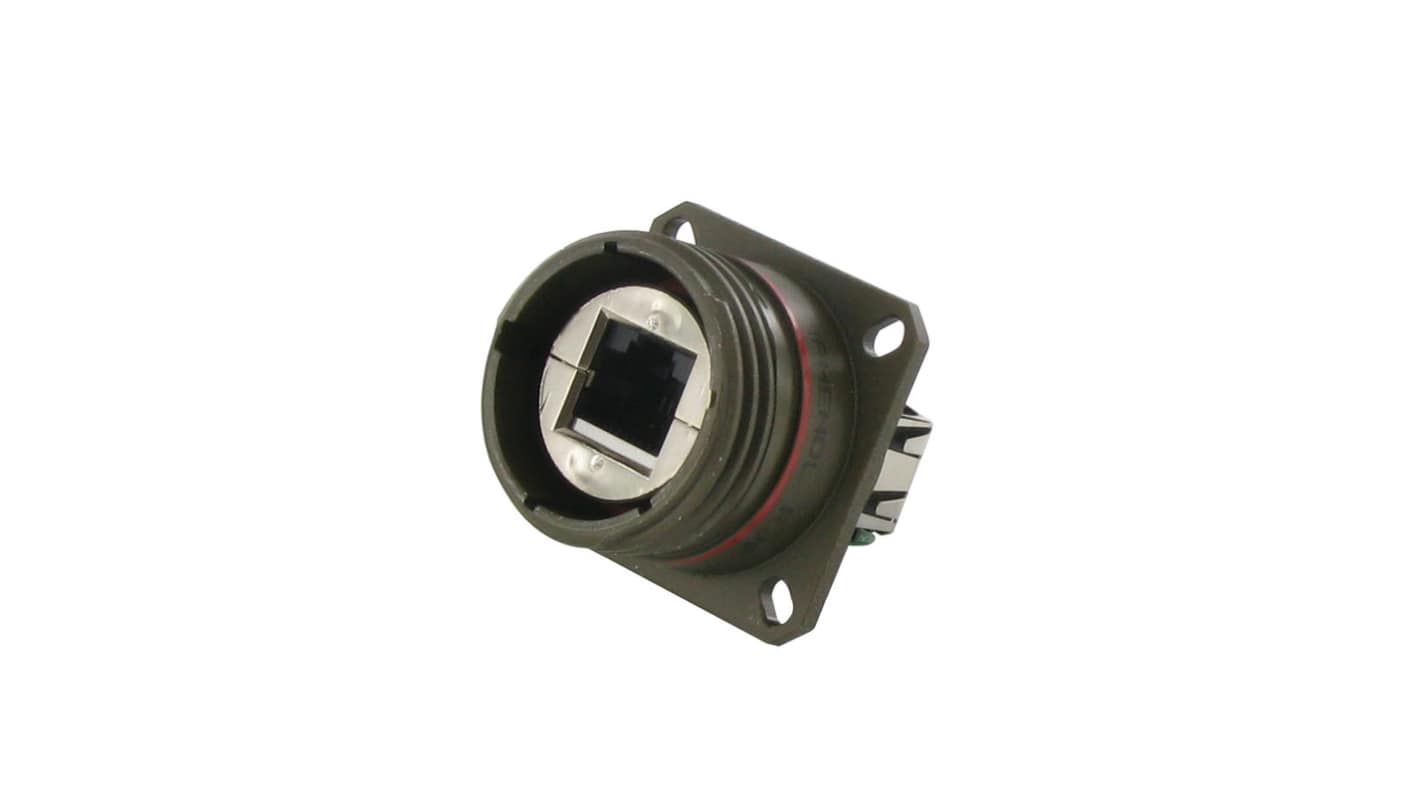

Amphenol Socapex RJF TV6A Series Ethernet Connector Female, Flange, Cat6a Straight 1 Port 8 Way
- N° de stock RS:
- 271-503
- Numéro d'article Distrelec:
- 302-64-085
- Référence fabricant:
- RJFTV6A2SA5NF459
- Fabricant:
- Amphenol Socapex
Sous-total (1 unité)*
265,02 €
(TVA exclue)
320,67 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 11 unité(s) expédiée(s) à partir du 07 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 265,02 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 271-503
- Numéro d'article Distrelec:
- 302-64-085
- Référence fabricant:
- RJFTV6A2SA5NF459
- Fabricant:
- Amphenol Socapex
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Amphenol Socapex | |
| Product Type | Ethernet Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat6a | |
| Mount Type | Flange | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Gender | Female | |
| Connector Type | RJ45 | |
| Orientation | Straight | |
| IP Rating | IP68 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Depth | 35.3mm | |
| Length | 35.3mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | RoHS, ISO/IEC11801 standard | |
| Width | 31.55mm | |
| Series | RJF TV6A | |
| Contact Material | Zinc | |
| Contact Plating | Black Zinc Nickel, Nickel Plated | |
| Sélectionner tout | ||
|---|---|---|
Marque Amphenol Socapex | ||
Product Type Ethernet Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat6a | ||
Mount Type Flange | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Gender Female | ||
Connector Type RJ45 | ||
Orientation Straight | ||
IP Rating IP68 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Depth 35.3mm | ||
Length 35.3mm | ||
Hazardous Area Certification No | ||
Standards/Approvals RoHS, ISO/IEC11801 standard | ||
Width 31.55mm | ||
Series RJF TV6A | ||
Contact Material Zinc | ||
Contact Plating Black Zinc Nickel, Nickel Plated | ||
- Pays d'origine :
- FR
The Amphenol Socapex Cat6A Ethernet Connectors deliver reliable Class Ea/Cat 6A connections for 10 BaseT to 10G BaseT networks up to 500 MHz in harsh conditions. Featuring the patented RJStop system, they ensure secure protection against shocks, dust, and fluids using standard RJ45 cables, eliminating the need for on-field cabling or grounding.
No cabling operation in field and no tools required
Mechanical coding
Improved EMI protection
