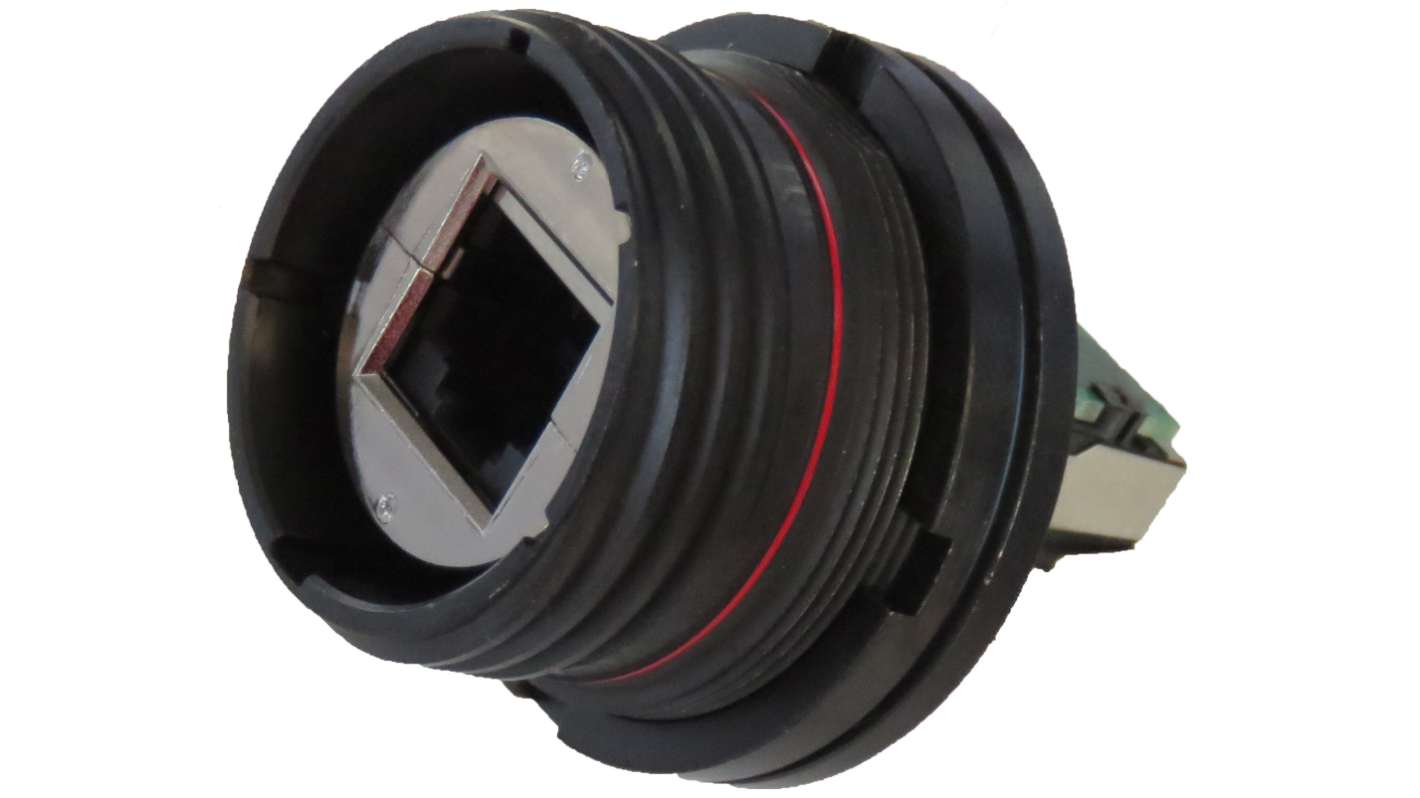

Amphenol Socapex RJF TV6A Series Ethernet Connector Female, Cat6a Straight 1 Port 8 Way
- N° de stock RS:
- 271-516
- Numéro d'article Distrelec:
- 302-64-098
- Référence fabricant:
- RJFTV6A7SA5NF059
- Fabricant:
- Amphenol Socapex
Sous-total (1 unité)*
284,10 €
(TVA exclue)
343,76 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 20 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 284,10 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 271-516
- Numéro d'article Distrelec:
- 302-64-098
- Référence fabricant:
- RJFTV6A7SA5NF059
- Fabricant:
- Amphenol Socapex
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Amphenol Socapex | |
| Ethernet Connector Type | RJ45 | |
| Product Type | Ethernet Connector | |
| LAN Category | Cat6a | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Type | RJ45 | |
| Connector Gender | Female | |
| Orientation | Straight | |
| IP Rating | IP68 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | RJF TV6A | |
| Width | 31.55mm | |
| Standards/Approvals | ISO/IEC11801 standard, RoHS | |
| Hazardous Area Certification | No | |
| Depth | 35.3mm | |
| Length | 35.3mm | |
| Contact Material | Zinc | |
| Contact Plating | Black Zinc Nickel, Nickel Plated | |
| Sélectionner tout | ||
|---|---|---|
Marque Amphenol Socapex | ||
Ethernet Connector Type RJ45 | ||
Product Type Ethernet Connector | ||
LAN Category Cat6a | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Type RJ45 | ||
Connector Gender Female | ||
Orientation Straight | ||
IP Rating IP68 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series RJF TV6A | ||
Width 31.55mm | ||
Standards/Approvals ISO/IEC11801 standard, RoHS | ||
Hazardous Area Certification No | ||
Depth 35.3mm | ||
Length 35.3mm | ||
Contact Material Zinc | ||
Contact Plating Black Zinc Nickel, Nickel Plated | ||
- Pays d'origine :
- FR
The Amphenol Socapex Cat6A Ethernet Connectors deliver reliable Class Ea/Cat 6A connections for 10 BaseT to 10G BaseT networks up to 500 MHz in harsh conditions. Featuring the patented RJStop system, they ensure secure protection against shocks, dust, and fluids using standard RJ45 cables, eliminating the need for on-field cabling or grounding.
No cabling operation in field and no tools required
Mechanical coding
Improved EMI protection
