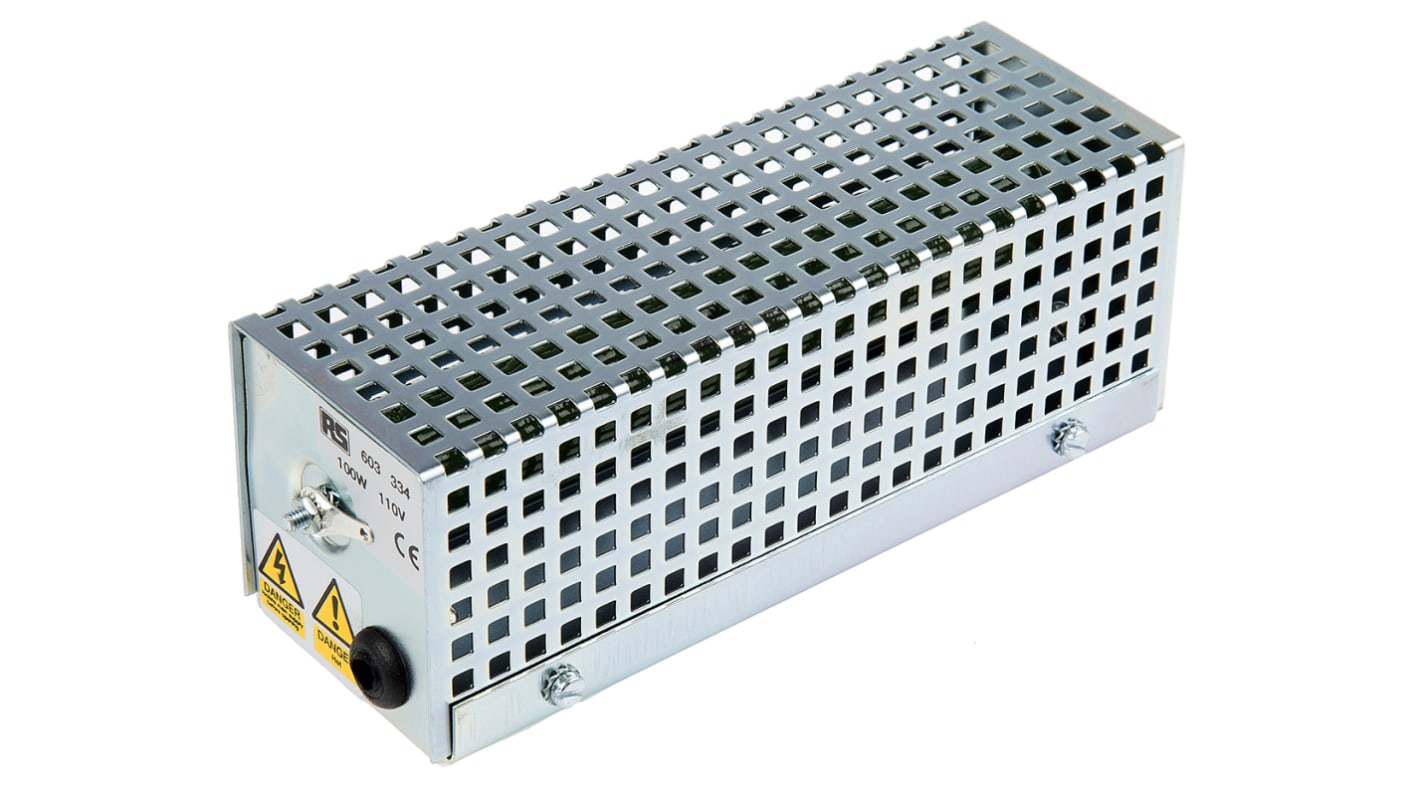

RS PRO, 85 °C Enclosure Heater, 110V ac, 100W Output, 100W Input 191mm x 67 mm
- N° de stock RS:
- 603-334
- Fabricant:
- RS PRO
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
63,58 €
(TVA exclue)
76,93 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 33 unité(s) expédiée(s) à partir du 12 octobre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 63,58 € |
| 5 - 9 | 63,39 € |
| 10 - 24 | 61,36 € |
| 25 - 49 | 60,15 € |
| 50 + | 58,81 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 603-334
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Output Power | 100W | |
| Product Type | Enclosure Heater | |
| Input Power | 100W | |
| Supply Voltage | 110V ac | |
| Surface Temperature | 85°C | |
| Mount Type | Surface | |
| Connection Type | Cable | |
| Depth | 67mm | |
| Width | 191mm | |
| Insulated PTC | No | |
| Mounting Position | Horizontal | |
| Standards/Approvals | RoHS | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Output Power 100W | ||
Product Type Enclosure Heater | ||
Input Power 100W | ||
Supply Voltage 110V ac | ||
Surface Temperature 85°C | ||
Mount Type Surface | ||
Connection Type Cable | ||
Depth 67mm | ||
Width 191mm | ||
Insulated PTC No | ||
Mounting Position Horizontal | ||
Standards/Approvals RoHS | ||
- Pays d'origine :
- GB
RS PRO Anti-Condensation Heaters
A robust anti-condensation heater designed for use in switch gear and control gear cabinets where a low wattage solution is essential to prevent condensation by maintaining the temperature above dew point.
A hardwearing condensation heater constructed from a vitreous enamelled resistor mounted in a sturdy sheet Steel casing surrounded by a protective and removable perforated sheet Steel cover.;Featuring a cable grommet on both ends providing a tight and secure cable terminated with M4 terminal screws for easy installation.
A high-quality low wattage solution to condensation protecting sensitive parts and electronics perfect for switch and control cabinets.
Features and Benefits
Note: The recommended power rating required is 10W per square metre of enclosing surface, excluding the base. They should be mounted on a back surface with the heating element horizontal and the terminals at the bottom
Why RS PRO?
Looking to reduce costs but keep the same quality?
With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.
Trusted by engineers the world over, we want you to be confident that you’re receiving the exceptional quality, reliability and the best value for money.
Note
The recommended power rating required is 10W per square metre of enclosing surface, excluding the base. They should be mounted on a back surface with the heating element horizontal and the terminals at the bottom.
