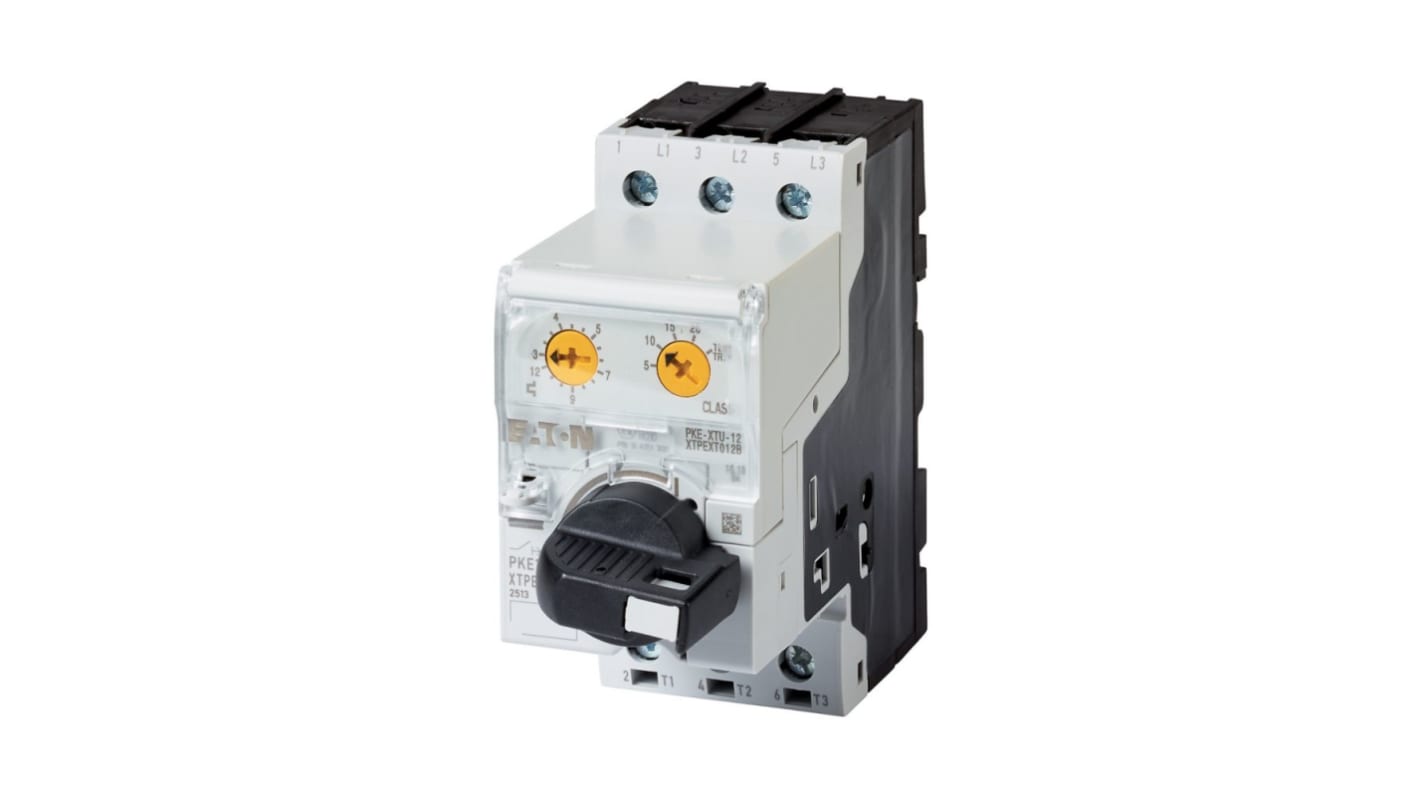

Eaton PKE Electronic Circuit Breaker 12 A 690V, Fixed
- N° de stock RS:
- 120-827
- Référence fabricant:
- 158243 PKE12/AK/XTU-12
- Fabricant:
- Eaton
Sous-total (1 unité)*
158,00 €
(TVA exclue)
191,18 €
(TVA incluse)
Ajouter 1 unité pour bénéficier d'une livraison gratuite
Temporairement en rupture de stock
- Expédition à partir du 13 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 158,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 120-827
- Référence fabricant:
- 158243 PKE12/AK/XTU-12
- Fabricant:
- Eaton
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Eaton | |
| Range | PKE | |
| Product Type | Electronic Circuit Breaker | |
| Series | Moeller | |
| Current Rating | 12 A | |
| Breaking Capacity | 0kA | |
| Voltage | 690V | |
| Mount Type | Fixed | |
| Length | 101mm | |
| Terminal Type | Screw | |
| Width | 45 mm | |
| Depth | 120mm | |
| Standards/Approvals | CSA File No.: 165628IEC/EN 60947IEC/EN 60947-4-1ULCECSA-C22.2 No. 60947-4-1-14UL File No.: E36332CSACSA Class No.: 3211-05UL 60947-4-1UL Category Control No.: NLRVVDE 0660 | |
| Sélectionner tout | ||
|---|---|---|
Marque Eaton | ||
Range PKE | ||
Product Type Electronic Circuit Breaker | ||
Series Moeller | ||
Current Rating 12 A | ||
Breaking Capacity 0kA | ||
Voltage 690V | ||
Mount Type Fixed | ||
Length 101mm | ||
Terminal Type Screw | ||
Width 45 mm | ||
Depth 120mm | ||
Standards/Approvals CSA File No.: 165628IEC/EN 60947IEC/EN 60947-4-1ULCECSA-C22.2 No. 60947-4-1-14UL File No.: E36332CSACSA Class No.: 3211-05UL 60947-4-1UL Category Control No.: NLRVVDE 0660 | ||
- Pays d'origine :
- DE
The Eaton motor-protective circuit-breaker is a reliable and efficient solution for heavy starting duty. With overload release and phase-failure sensitivity, this system-protective circuit-breaker ensures optimal motor protection. The product is designed with a turn button actuator type and comes fitted with an AK lockable rotary handle for added convenience.
Includes overload release and phase-failure sensitivity for comprehensive motor protection
Fitted with AK lockable rotary handle for added security
Three-pole design for enhanced efficiency and performance
Short-circuit release feature for safety preca
