Eaton NZM Electronic Circuit Breaker 12 A 690V, Fixed
- N° de stock RS:
- 120-825
- Référence fabricant:
- 158241 PKE12/AK
- Fabricant:
- Eaton
Sous-total (1 unité)*
61,10 €
(TVA exclue)
73,93 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 06 avril 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 61,10 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 120-825
- Référence fabricant:
- 158241 PKE12/AK
- Fabricant:
- Eaton
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Eaton | |
| Range | NZM | |
| Product Type | Electronic Circuit Breaker | |
| Series | Moeller | |
| Current Rating | 12 A | |
| Breaking Capacity | 0kA | |
| Voltage | 690V | |
| Mount Type | Fixed | |
| Length | 101mm | |
| Terminal Type | Screw | |
| Width | 45 mm | |
| Depth | 102.5mm | |
| Standards/Approvals | CSA-C22.2 No. 60947-4-1-14IEC/EN 60947-4-1CSAIEC/EN 60947UL 60947-4-1ULVDE 0660CSA Class No.: 3211-05CSA File No.: 165628UL File No.: E36332UL Category Control No.: NLRVCE | |
| Sélectionner tout | ||
|---|---|---|
Marque Eaton | ||
Range NZM | ||
Product Type Electronic Circuit Breaker | ||
Series Moeller | ||
Current Rating 12 A | ||
Breaking Capacity 0kA | ||
Voltage 690V | ||
Mount Type Fixed | ||
Length 101mm | ||
Terminal Type Screw | ||
Width 45 mm | ||
Depth 102.5mm | ||
Standards/Approvals CSA-C22.2 No. 60947-4-1-14IEC/EN 60947-4-1CSAIEC/EN 60947UL 60947-4-1ULVDE 0660CSA Class No.: 3211-05CSA File No.: 165628UL File No.: E36332UL Category Control No.: NLRVCE | ||
- Pays d'origine :
- DE

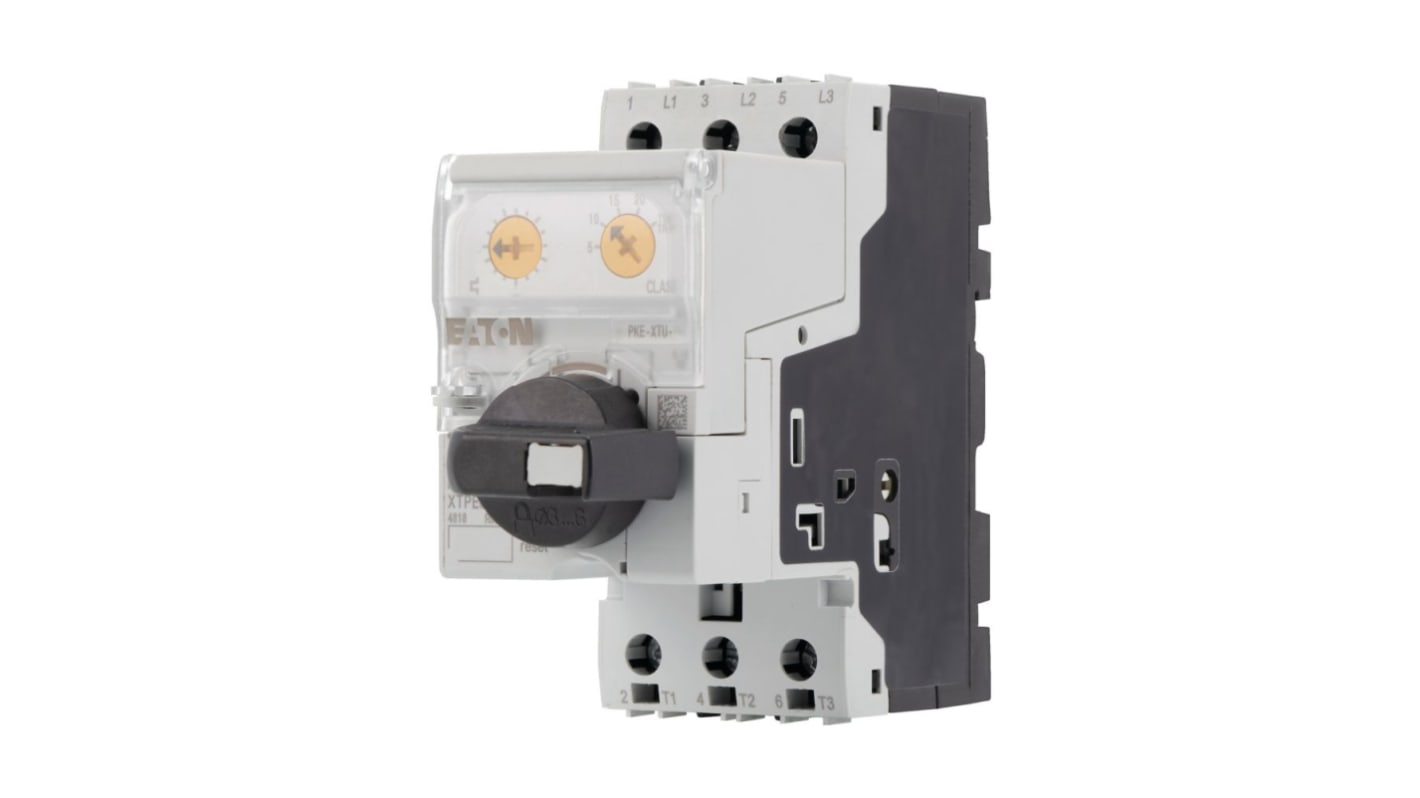

The Eaton Moeller series PKE Motor-protective circuit-breaker is an essential device for motor protection. With a turn button actuator and AK lockable rotary handle, it ensures phase-failure sensitivity according to IEC/EN standards. It has a lifespan of 50,000 operations and a wide operating temperature range from -25 to 55°C. The device features 3 poles and a short-circuit release at 15.5 x Iu, meeting all necessary safety standards.
Turn button for effortless and straightforward operation
Phase-failure sensitivity ensures optimal motor protection
Ideal for heavy starting duty motors with robust functionality
Efficient three-pole design for reliable operational performance
Rated opera
