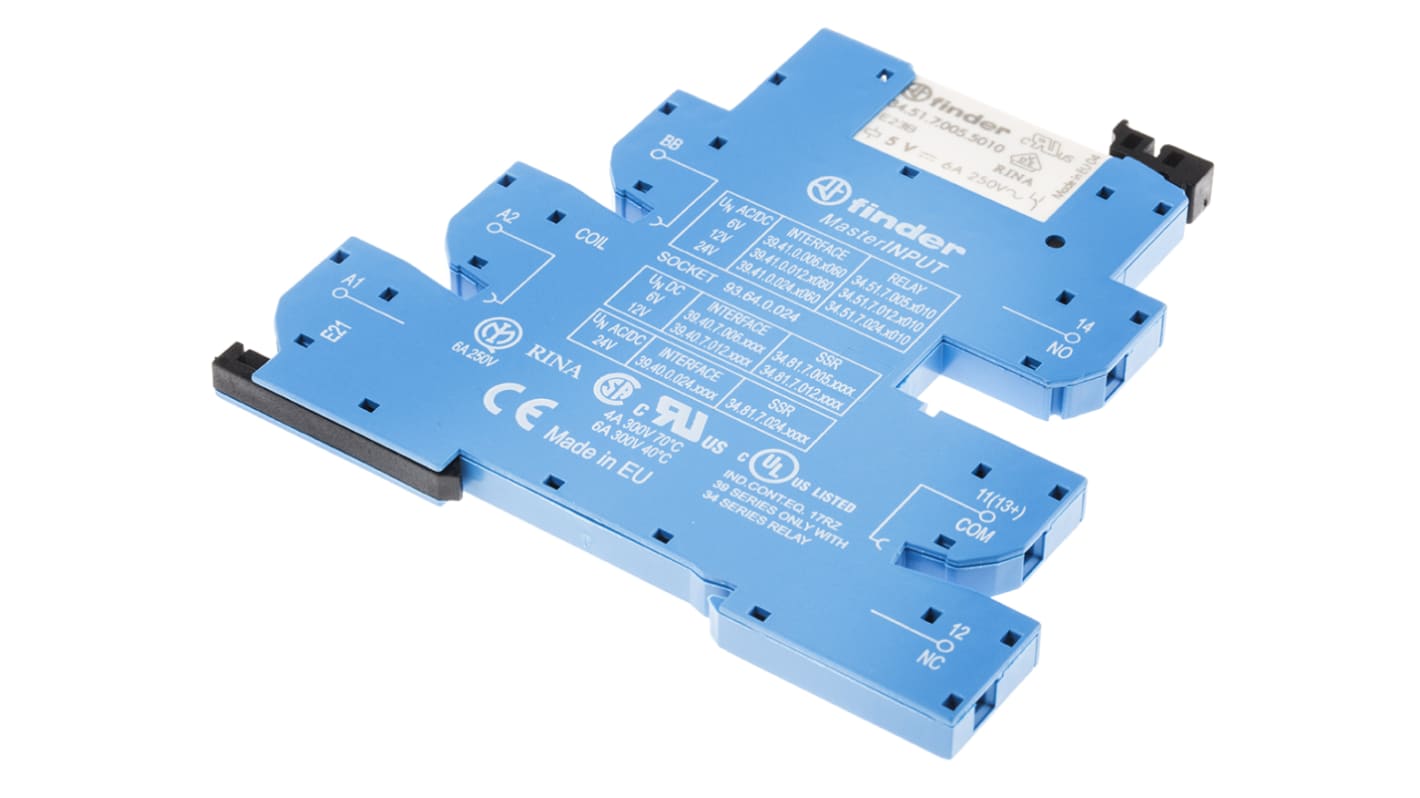

Finder 39 Series Interface Relay, DIN Rail, 6V ac/dc Coil, SPDT
- N° de stock RS:
- 776-1519
- Référence fabricant:
- 39.41.0.006.5060
- Fabricant:
- Finder
Offre groupée disponible
Sous-total (1 unité)*
23,28 €
(TVA exclue)
28,17 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 30 juillet 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 23,28 € |
| 5 - 11 | 22,55 € |
| 12 + | 21,85 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 776-1519
- Référence fabricant:
- 39.41.0.006.5060
- Fabricant:
- Finder
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Finder | |
| Coil Voltage | 6V ac/dc | |
| Product Type | Interface Relay | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Series | 39 | |
| Terminal Type | Screw | |
| Switching Current | 6A | |
| Switching DC Voltage | 6V dc | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Contact Material | Gold Plated | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CE, EAC | |
| Width | 90.7mm | |
| Height | 94.3mm | |
| Length | 6.2mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Finder | ||
Coil Voltage 6V ac/dc | ||
Product Type Interface Relay | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Series 39 | ||
Terminal Type Screw | ||
Switching Current 6A | ||
Switching DC Voltage 6V dc | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Contact Material Gold Plated | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CE, EAC | ||
Width 90.7mm | ||
Height 94.3mm | ||
Length 6.2mm | ||
- Pays d'origine :
- IT
39 Series - EMR Screw Terminals
A range of electromechanical relay interface modules from the 39 series from Finder, these relays have a high switching capability.
Space saving 6.2 mm wide
Connections for 16-way jumper link
Integral coil indication and protection circuit
Secure retention and easy ejection by plastic clip
Dual screw head (blade+cross) terminals
35 mm DIN rail mounting
