Finder 39 Series Interface Relay, DIN Rail, 6V ac/dc Coil, SPST, 35mA
- N° de stock RS:
- 819-8938
- Référence fabricant:
- 39.51.0.006.0060
- Fabricant:
- Finder
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
22,17 €
(TVA exclue)
26,83 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 02 décembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 22,17 € |
| 5 - 11 | 21,50 € |
| 12 + | 20,80 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 819-8938
- Référence fabricant:
- 39.51.0.006.0060
- Fabricant:
- Finder
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Finder | |
| Product Type | Interface Relay | |
| Coil Voltage | 6V ac/dc | |
| Contact Configuration | SPST | |
| Mount Type | DIN Rail | |
| Series | 39 | |
| Terminal Type | Push-in | |
| Switching Current | 6A | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 6V dc | |
| Minimum Operating Temperature | -40°C | |
| Coil Current | 35mA | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EAC, CE | |
| Length | 6.2mm | |
| Height | 87mm | |
| Width | 90.7mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Finder | ||
Product Type Interface Relay | ||
Coil Voltage 6V ac/dc | ||
Contact Configuration SPST | ||
Mount Type DIN Rail | ||
Series 39 | ||
Terminal Type Push-in | ||
Switching Current 6A | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 6V dc | ||
Minimum Operating Temperature -40°C | ||
Coil Current 35mA | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EAC, CE | ||
Length 6.2mm | ||
Height 87mm | ||
Width 90.7mm | ||
- Pays d'origine :
- IT

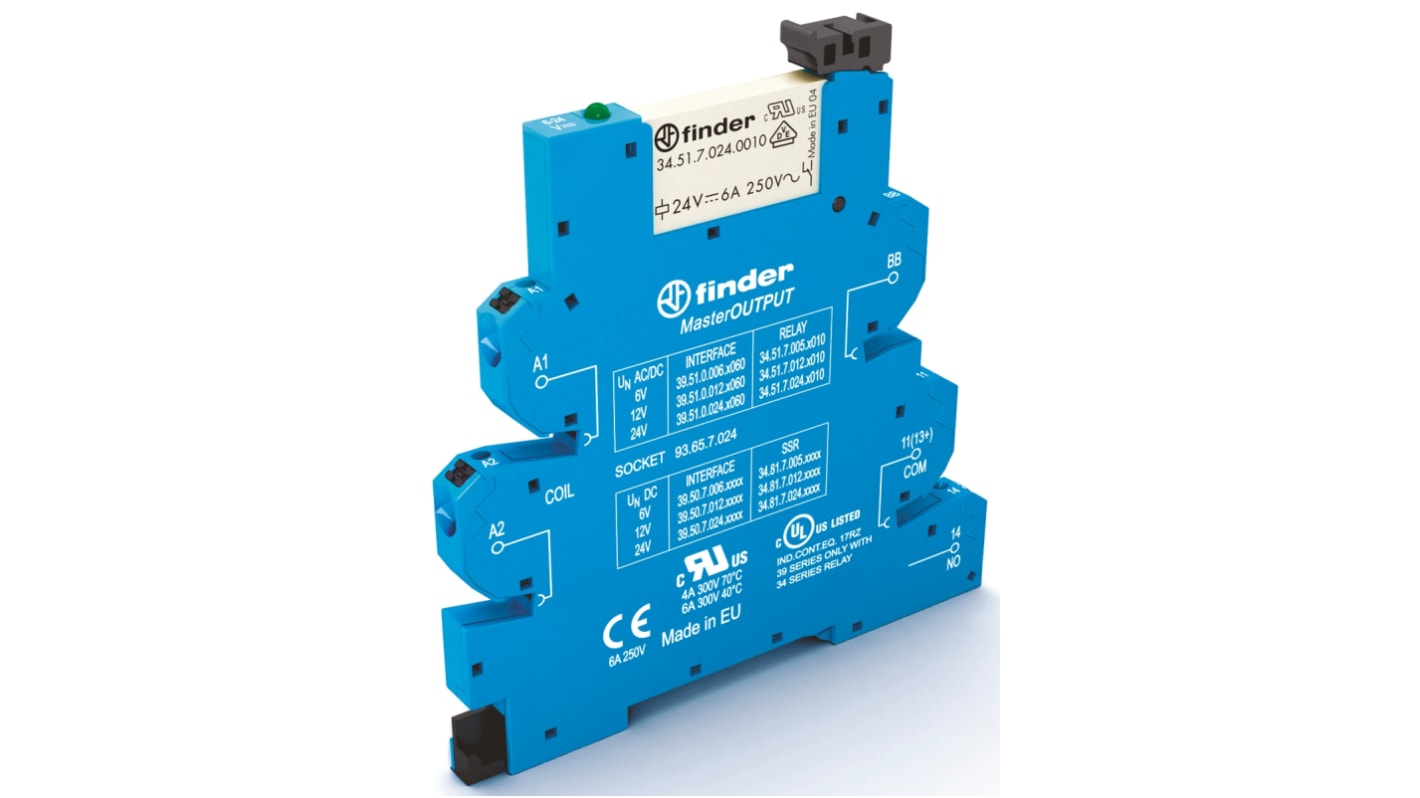

39 Series - EMR Screw Terminals
A range of electromechanical relay interface modules from the 39 series from Finder, these relays have a high switching capability.
Space saving 6.2 mm wide
Connections for 16-way jumper link
Integral coil indication and protection circuit
Secure retention and easy ejection by plastic clip
Dual screw head (blade+cross) terminals
35 mm DIN rail mounting
