Phoenix Contact PLC-RPT-24DC/21/EX Series Interface Relay, DIN Rail, 24 V dc Coil, SPDT, 9 mA

N° de stock RS:: 175-0503
Référence fabricant:: 2909528
Fabricant:: Phoenix Contact

Phoenix Contact PLC-RPT-24DC/21/EX Series Interface Relay, DIN Rail, 24 V dc Coil, SPDT, 9 mA

Sous-total (1 unité)*

15,32 €

(TVA exclue)

18,54 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 75,00 €

En stock

1 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Plus 20 unité(s) expédiée(s) à partir du 12 mars 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	15,32 €

*Prix donné à titre indicatif

N° de stock RS:: 175-0503
Référence fabricant:: 2909528
Fabricant:: Phoenix Contact

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Phoenix Contact
	Coil Voltage	24 V dc
	Product Type	Interface Relay
	Contact Configuration	SPDT
	Mount Type	DIN Rail
	Series	PLC-RPT-24DC/21/EX
	Terminal Type	Push-in
	Switching Current	100 mA
	Coil Current	9 mA
	Switching AC Voltage	250 V ac
	Switching DC Voltage	250 V dc
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	60°C
	Contact Material	Silver Alloy
	Length	6.2mm
	Standards/Approvals	IEC 60947-5-1
	Width	94 mm
	Height	80mm

	Sélectionner tout
	Marque Phoenix Contact
	Coil Voltage 24 V dc
	Product Type Interface Relay
	Contact Configuration SPDT
	Mount Type DIN Rail
	Series PLC-RPT-24DC/21/EX
	Terminal Type Push-in
	Switching Current 100 mA
	Coil Current 9 mA
	Switching AC Voltage 250 V ac
	Switching DC Voltage 250 V dc
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 60°C
	Contact Material Silver Alloy
	Length 6.2mm
	Standards/Approvals IEC 60947-5-1
	Width 94 mm
	Height 80mm

Se connecter pour voir les modèles CAO

Pays d'origine :: DE

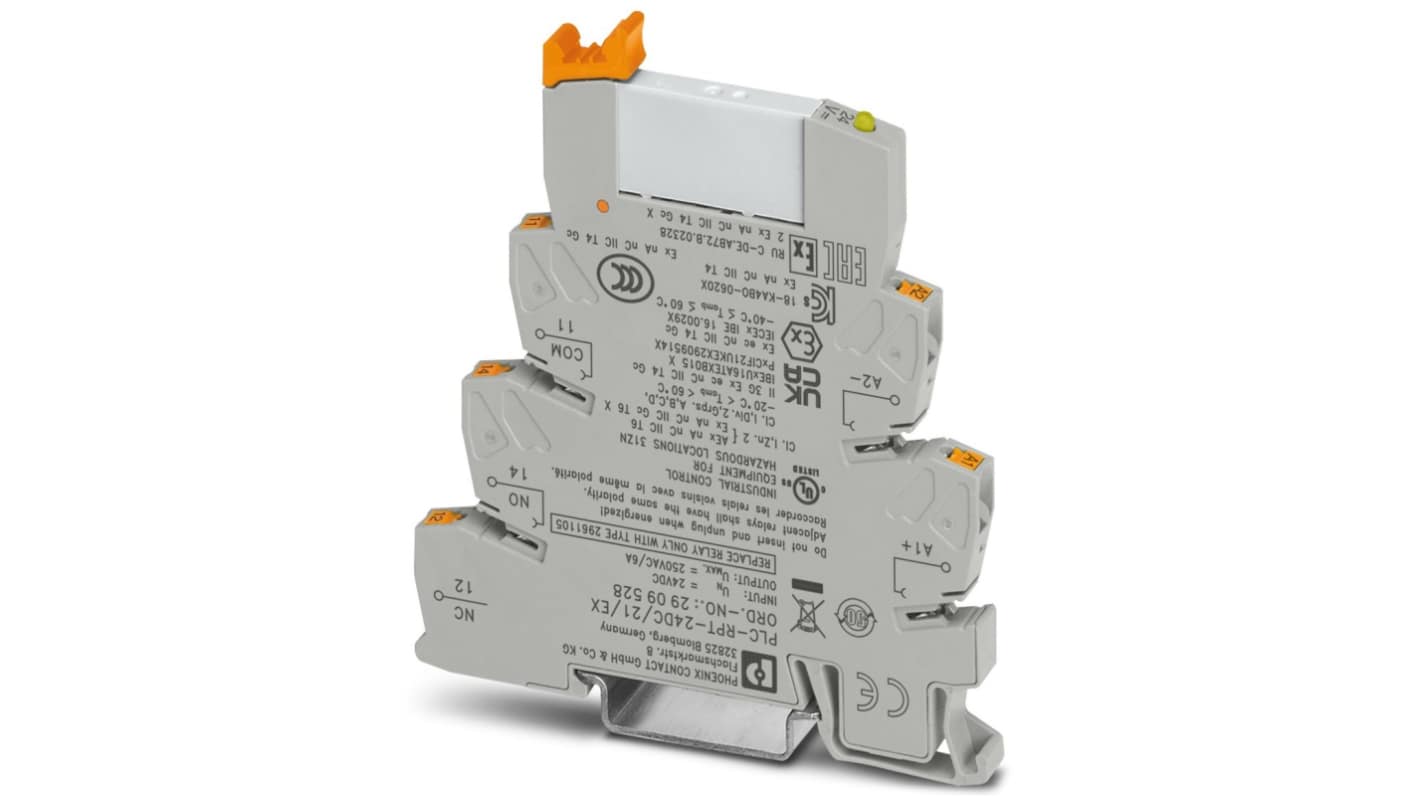

Phoenix Contact Interface Relay Module, Push-In, SPDT - PLC-RPT-24DC/21/EX - 2909528

Use this relay from Phoenix Contact to open and close electrical circuits in hazardous areas. It's specifically designed to let you safely disconnect and switch signals in potentially explosive environments, such as chemical works.

The unit has a low operating temperature, so it can be closely assembled with other relays without the risk of overheating. Its push-in technology means you can quickly plug in wires without needing specialist tools. A freewheeling diode protects the unit from damage in the event of an abrupt reduction in the circuit current.

You can visually check the working function of this relay thanks to its yellow LED (light-emitting diode). This unit clips simply onto a DIN rail for quick installation.

• Coil voltage of 24 V DC

• Input current of 9 mA

• Life of 2 x 10^7 mechanical cycles

• Switching current of 10 mA

• Switching voltage of 250 V A/DC

• SPDT (single pole, double throw) contact configuration

• Silver alloy contact material

• 1 pole

• IP20 (ingress protection) rating for protection against solid objects

• Dimensions of 6.2 (length) x 94 (depth) x 80 mm (height)

• Operating temperature range of -40°C to +60°C

Phoenix PLC-RPT Series Push In Contact

The Phoenix PLC-RPT Series of relay modules features terminal blocks with push-in connection and plug-in miniature relay, suitable for DIN-rail mounting.

Features and Benefits

With the use of a v8 adapter, this relay module offers efficient connection to system cabling

The module offers safe isolation between the coil and contact

Functional plug-in bridges

Operating temperature range of -40 ºC to 60 ºC

What is a relay module used for?

A relay is a switch that can be turned on and off, determining whether the current can pass through. Relay modules are used to control and protect against emergency conditions in applications such as modern power, large radio-electronic, electrophysical and X-ray installations.
