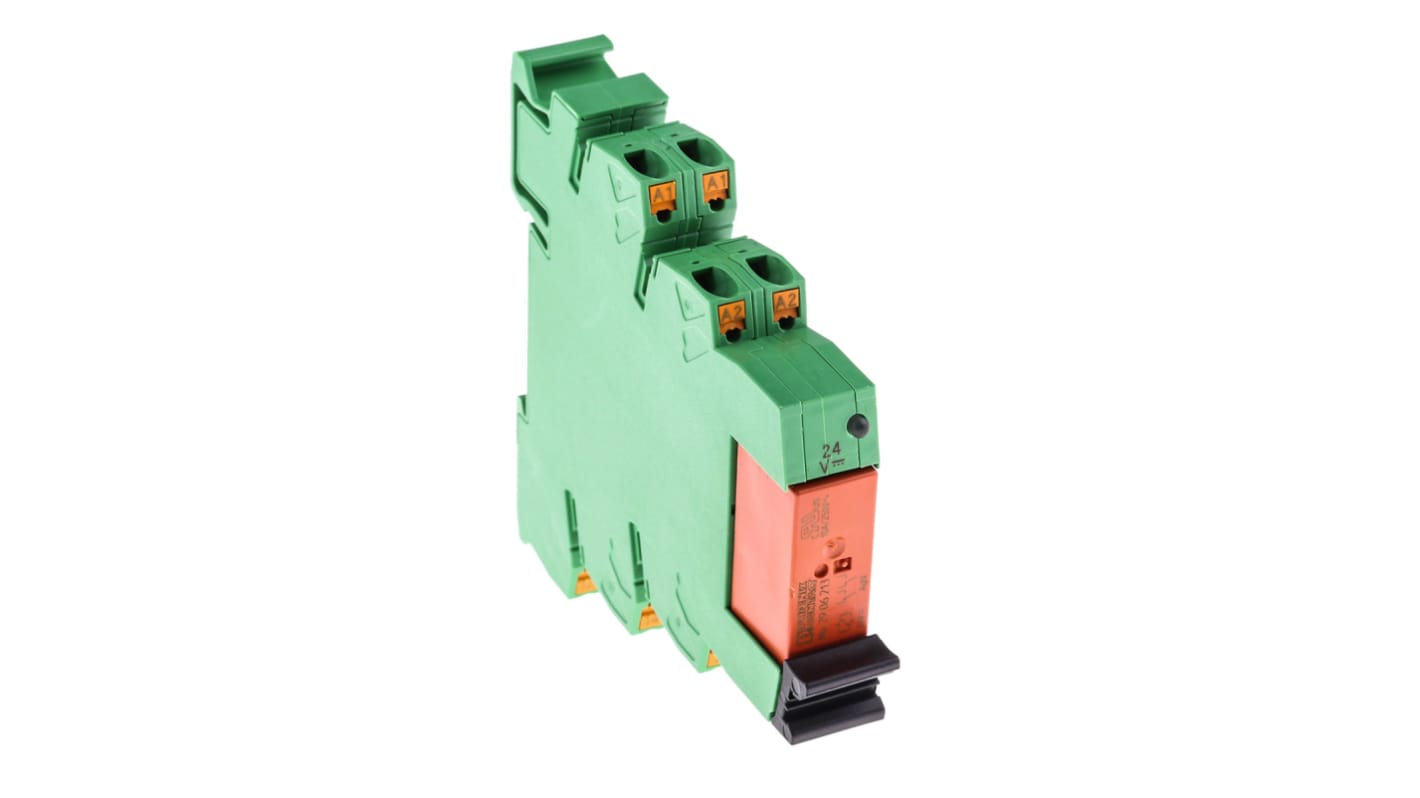

Phoenix Contact PLC-RPT- 24DC/21-21/EX Series Interface Relay, DIN Rail Mount, 24V dc Coil, DPDT, 2-Pole

Voir la catégorie

Sous-total (1 unité)*

18,87 €

(TVA exclue)

22,83 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • Plus 7 unité(s) expédiée(s) à partir du 15 décembre 2025
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +18,87 €

*Prix donné à titre indicatif

N° de stock RS:
175-0498
Référence fabricant:
2909514
Fabricant:
Phoenix Contact
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Phoenix Contact

Coil Voltage

24V dc

Contact Configuration

DPDT

Mounting Type

DIN Rail

Series

PLC-RPT- 24DC/21-21/EX

Number of Poles

2

Maximum Input Voltage

24V dc

Minimum Input Voltage

24V dc

Switching Voltage

250V ac/dc

Terminal Type

Push In

Depth

94mm

Height

80mm

Length

14mm

Contact Material

Silver Alloy

Input Current

18mA

Operating Temperature Range

-20 → +60 °C, -40 → +60°C

Dimensions

14 x 94 x 80mm

Special Features

IP20 Relay Base, Reinforced Insulation, Safe Isolation

Maximum Operating Temperature

+60°C

Minimum Operating Temperature

-40 °C, -20°C

Standards Met

CE Compliant, EN 50178, EN 60079-0, -7, -15, IEC 60664, UL Listed, USA Certified

Relay Switching Classification

Interface Relay Module

Life

3 x 10^7 (Mechanical) cycles

Pays d'origine :
DE

Phoenix PLC-RPT Series Push In Contact


The Phoenix PLC-RPT Series of relay modules features terminal blocks with push-in connection and plug-in miniature relay, suitable for DIN-rail mounting.

Features and Benefits


  • With the use of a v8 adapter, this relay module offers efficient connection to system cabling

  • The module offers safe isolation between the coil and contact

  • Functional plug-in bridges

  • Operating temperature range of -40 ºC to 60 ºC

What is a relay module used for?


A relay is a switch that can be turned on and off, determining whether the current can pass through. Relay modules are used to control and protect against emergency conditions in applications such as modern power, large radio-electronic, electrophysical and X-ray installations.

Phoenix Contact PLC-RPT- 24DC/21-21/EX 2909514


  • The PLC interface consists of a basic terminal block with power contact and two changeover contacts

  • The product features a slim design and a yellow LED operating voltage display with 24 V DC input voltage

  • Approved according to ATEX/IECEx (Zone 2) and Ex Zone Class I, Div. 2
