Lascar EL-GFX-DTC Temperature Data Logger, USB, 2 Input Channel(s)

Sous-total (1 unité)*

172,09 €

(TVA exclue)

208,23 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En voie de retrait du marché
  • 6 dernière(s) unité(s), prête(s) à l'envoi d'un autre centre de distribution
Unité
Prix par unité
1 +172,09 €

*Prix donné à titre indicatif

N° de stock RS:
775-1073
Référence fabricant:
EL-GFX-DTC
Fabricant:
Lascar
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Lascar

Model Number

EL-GFX-DTC

Number of Input Channels

2

Measurement Parameters

Temperature

Sensor Type

J, K, T, Thermocouple

Interface Type

USB

Data Logger Type

Temperature

Maximum Temperature Measurement

+1350 (K) °C, +1190 (J) °C, +400 (T) °C. +200 °C K-Type Probe Supplied

Power Source

Battery

Best Temperature Measurement Accuracy

±1°C

IP Rating

IP67

Minimum Operating Temperature

-35°C

Maximum Operating Temperature

+80°C

Display Type

LCD

Number of Readings Per Channel

252928

Includes

2x Probes, 2x Batteries, USB Cover, Mounting Clip, Micro USB Cable

Alarm

Yes

Temperature Measurement Resolution

0.1°C

Battery Life

4 Months

Battery Type

1/2AA

Dimensions

48.5 x 30.5 x 102mm

Pays d'origine :
CN

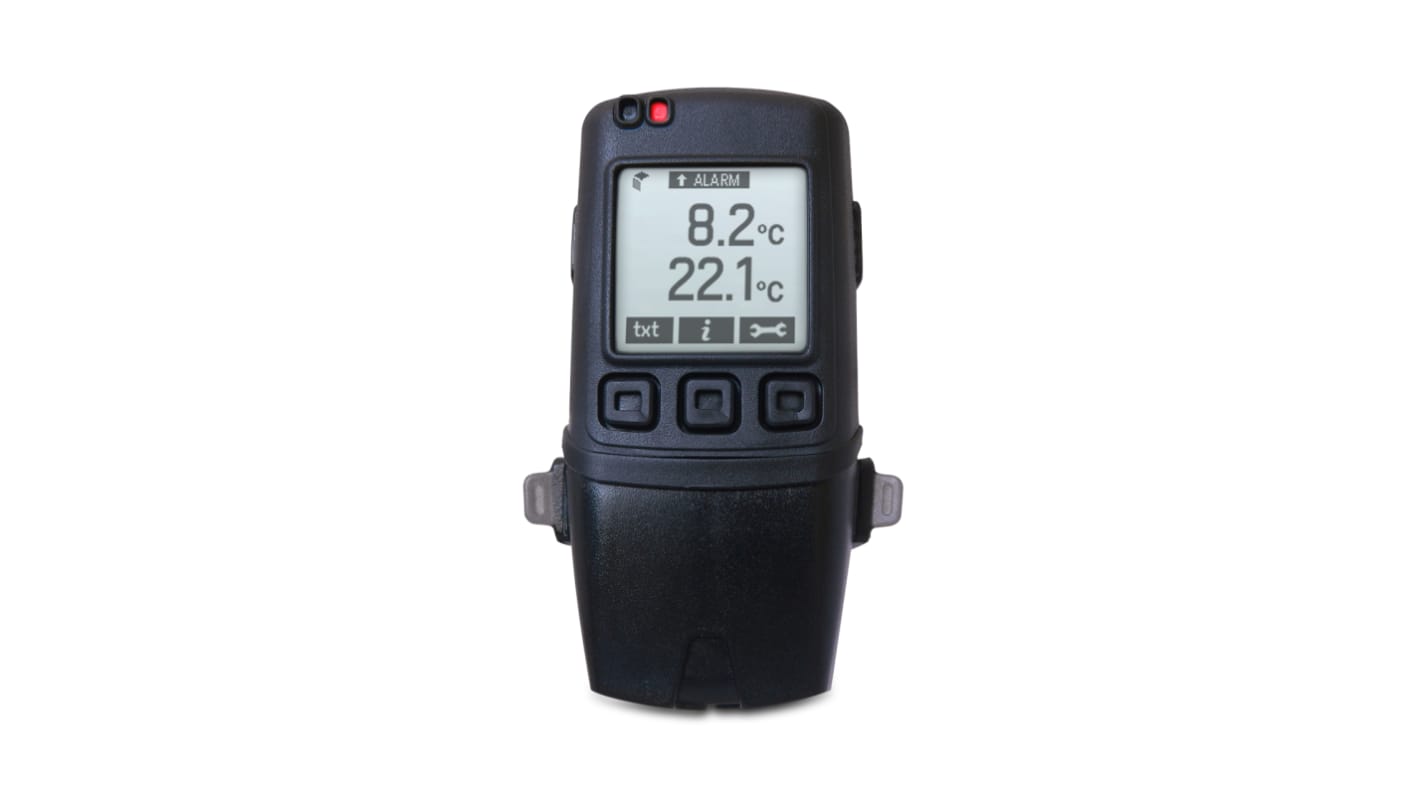

Dual-Channel Thermocouple Data Logger


Introducing Lascar's EL-GFX-DTC standalone, USB data logger. This device can record over 250,000 temperature readings from two K, J or T-type thermocouple probes in one or more sessions for up to 4 months.

Your application will determine which probe is the most suitable based on the temperature range, accuracy, form and price needed.

Everything is all in one place with the EasyLog software. Set up your device and in the same place view all your data, graph, print and export recorded data, it's that simple.

The device features a high contrast dot-matrix LCD and three buttons for you to easily navigate through the on-screen menu. The on-screen menu provides you with access to real-time trend analysis, data summaries and the ability to start, stop and restart the data logger without the need to connect the data logger to the host PC. In the device, you can even reset your minimum and maximum readings. This produces an event marker, which can be viewed later in the graphing software and in the data file after download.

Features and Benefits


Compatible with K, J and T-type thermocouples with miniature thermocouple plug connections
Stores over 250,000 readings
EasyLog software available as a free download
Logging rates between 2 seconds and 1 hour
Supplied with a pair of 1.5m K-type thermocouples with 0 to 200°C (32 to 392°F) measurement range
On-screen graphing, and menu options to start, stop, review and restart the logger in the field
Immediate, delayed, push-button or temperature triggered start mode

Applications


Food Temperature Monitoring
Facilities Management

Note

The data logger is supplied complete with two lithium metal batteries.
