Lascar EL-GFX-DTP Temperature Data Logger, USB
- N° de stock RS:
- 161-2901
- Référence fabricant:
- EL-GFX-VAC2
- Fabricant:
- Lascar
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau en stock, il n'est plus vendu par le fabricant.
- N° de stock RS:
- 161-2901
- Référence fabricant:
- EL-GFX-VAC2
- Fabricant:
- Lascar
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Lascar | |
| Product Type | Data Logger | |
| Model Number | EL-GFX-DTP | |
| Accuracy | ±0.1°C, ±0.1 °C | |
| Number of Channels | 1 | |
| Measurement Parameters | Temperature | |
| Interface Type | USB | |
| Data Logger Type | Temperature | |
| Power Source | Battery | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | CE | |
| Hazardous Area Certification | No | |
| Length | 101mm | |
| Height | 30.5mm | |
| Width | 48.5mm | |
| Display Type | LCD | |
| Alarm | Yes | |
| Battery Type | AA | |
| Battery Life | 4months | |
| Number of Readings per Channel | 250000 | |
| Sélectionner tout | ||
|---|---|---|
Marque Lascar | ||
Product Type Data Logger | ||
Model Number EL-GFX-DTP | ||
Accuracy ±0.1°C, ±0.1 °C | ||
Number of Channels 1 | ||
Measurement Parameters Temperature | ||
Interface Type USB | ||
Data Logger Type Temperature | ||
Power Source Battery | ||
IP Rating IP67 | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals CE | ||
Hazardous Area Certification No | ||
Length 101mm | ||
Height 30.5mm | ||
Width 48.5mm | ||
Display Type LCD | ||
Alarm Yes | ||
Battery Type AA | ||
Battery Life 4months | ||
Number of Readings per Channel 250000 | ||
- Pays d'origine :
- CN

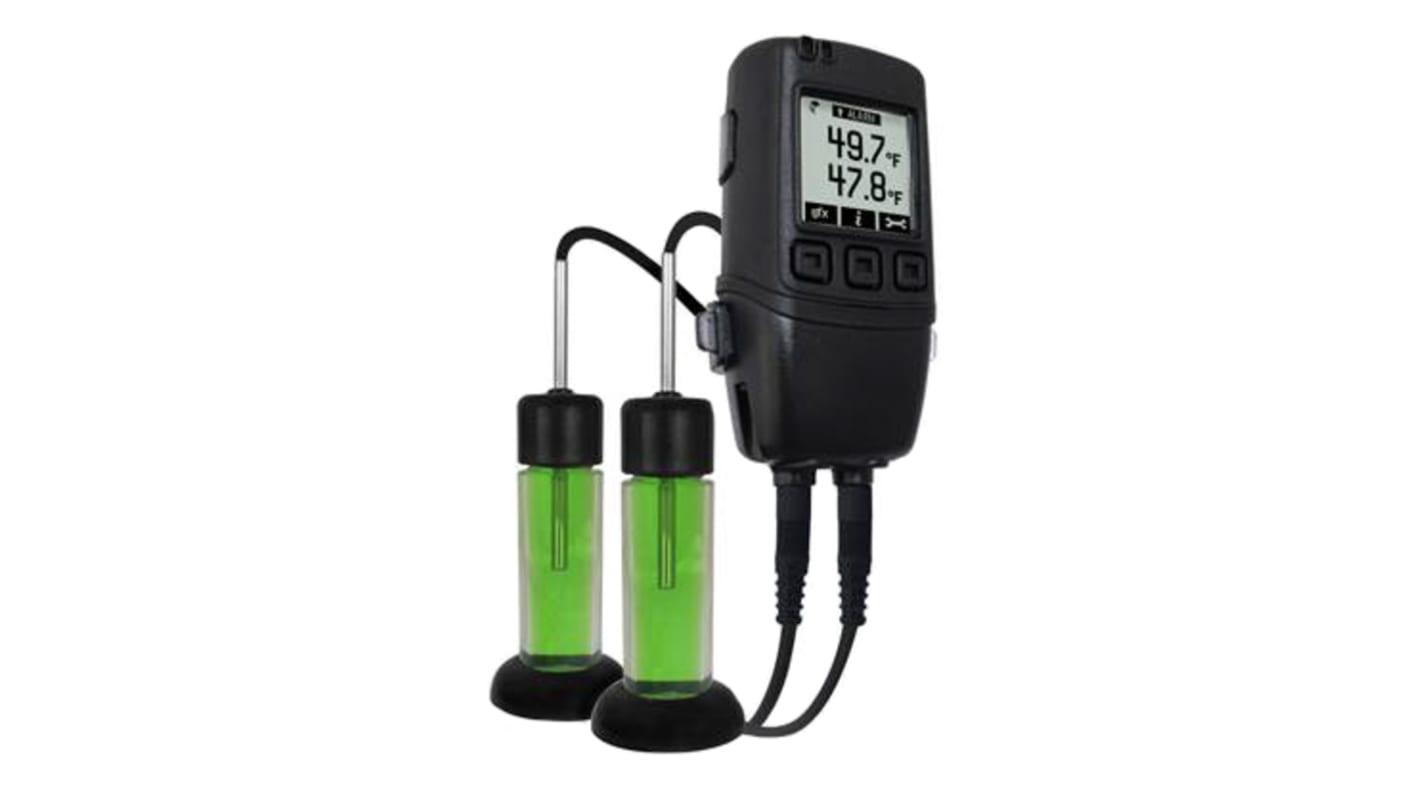

Dual Channel GFX Vaccine Monitoring Kit with Graphic Screen and Audible Alarm
The EL-GFX-DTP-PROBE-G is a vaccination monitoring kit combining a USB dual channel data logger with two glycol bottle probes. The unit stores over 250,000 readings, has an on-screen display showing max, min and last log as well as an on-board graph of the data collected. Buttons allow the user to start, stop and restart the logger in the field and alarm breaches can be registered with both LED and audible alarms. The logger can be battery powered or used with a USB wall adapter. Two channels allow measurement of two areas of a refrigerator or a refrigerator and freezer at the same time
Features and Benefits
-40 to +125°C measurement range
Stores over 250,000 readings
Logging rates between 2 seconds and 1 hour
On screen menu and graphing to start, stop, review and restart the logger in the field
User-programmable audible alarm thresholds with highly visible confidence/alarm LEDs
Applications
This data logger has been specifically designed for the pharmaceutical industry but it is also suitable for other applications such as medical, transportation, food and cold chain.
