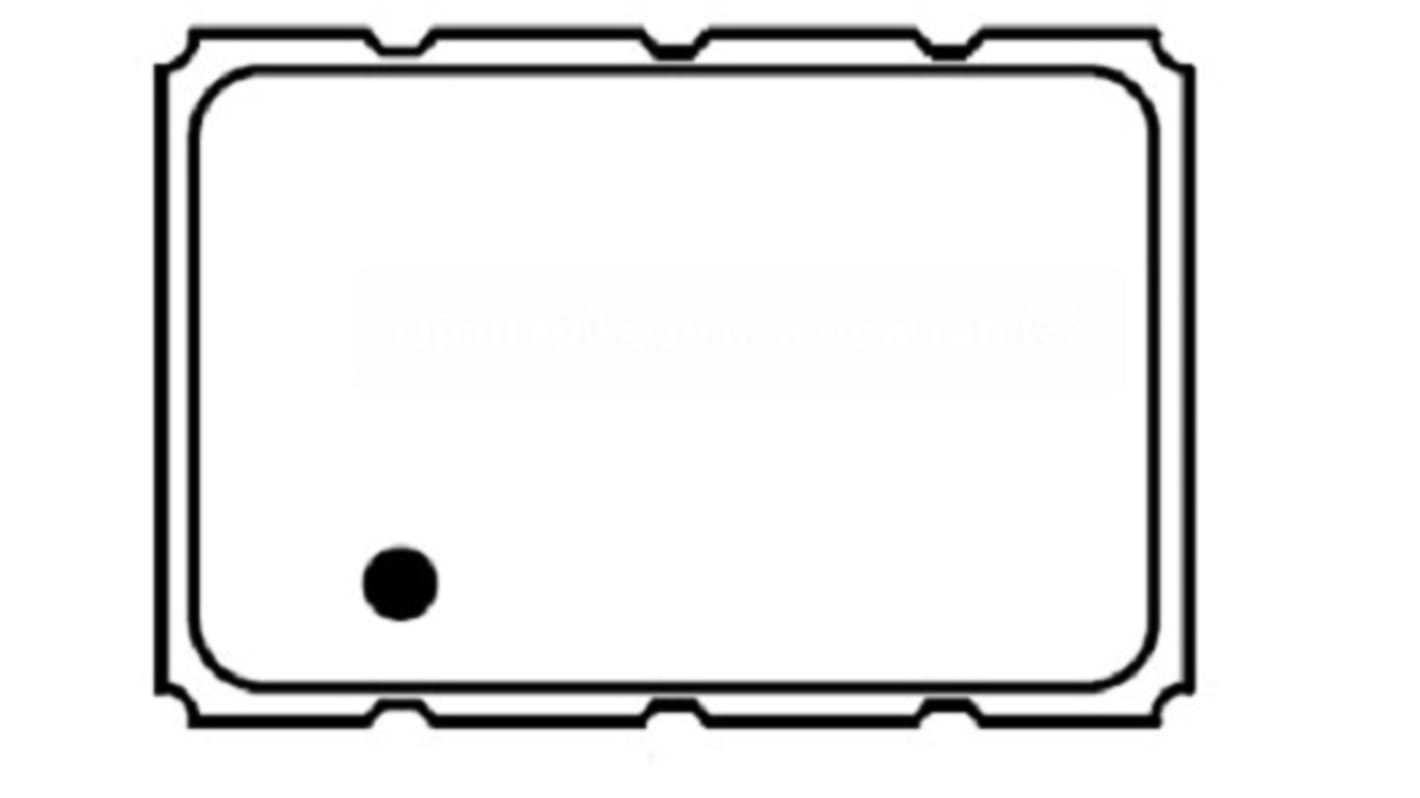

Renesas Electronics Crystal Oscillator Crystal Oscillator, ±50 ppm LVCMOS, 6-Pin XLH535033.333330I

Voir la catégorie
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
Options de conditionnement :
N° de stock RS:
262-9038
Référence fabricant:
XLH535033.333330I
Fabricant:
Renesas Electronics
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Renesas Electronics

Oscillator Type

Crystal Oscillator

Product Type

Crystal Oscillator

Frequency Stability

±50 ppm

Packaging

Cut Tape

Load Capacitance

15pF

Minimum Supply Voltage

3.14V

Output Level

LVCMOS

Maximum Supply Voltage

3.47V

Pin Count

6

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Width

5mm

Standards/Approvals

REACH, RoHS

Series

XL

Length

7mm

Automotive Standard

No

The Renesas Electronics XL devices are ultra-precision crystal oscillators with 750 to 890fs typical phase jitter over 12kHz to 20MHz bandwidth. Available in a wide frequency range from 0.750MHz to 1350MHz, the XL series crystal oscillators utilize a family of proprietary ASICs, with a key focus on noise reduction technologies. The 3rd order delta sigma modulator reduces noise to the levels that are comparable to traditional Bulk Quartz and SAW oscillators. With short lead-time, low cost, low noise, wide frequency range, excellent ambient performance, the XL devices are an excellent choice over the conventional technologies.

Output types is LVDS, LVPECL, LVCMOS

Phase jitter is 750fs to 890fs typical
