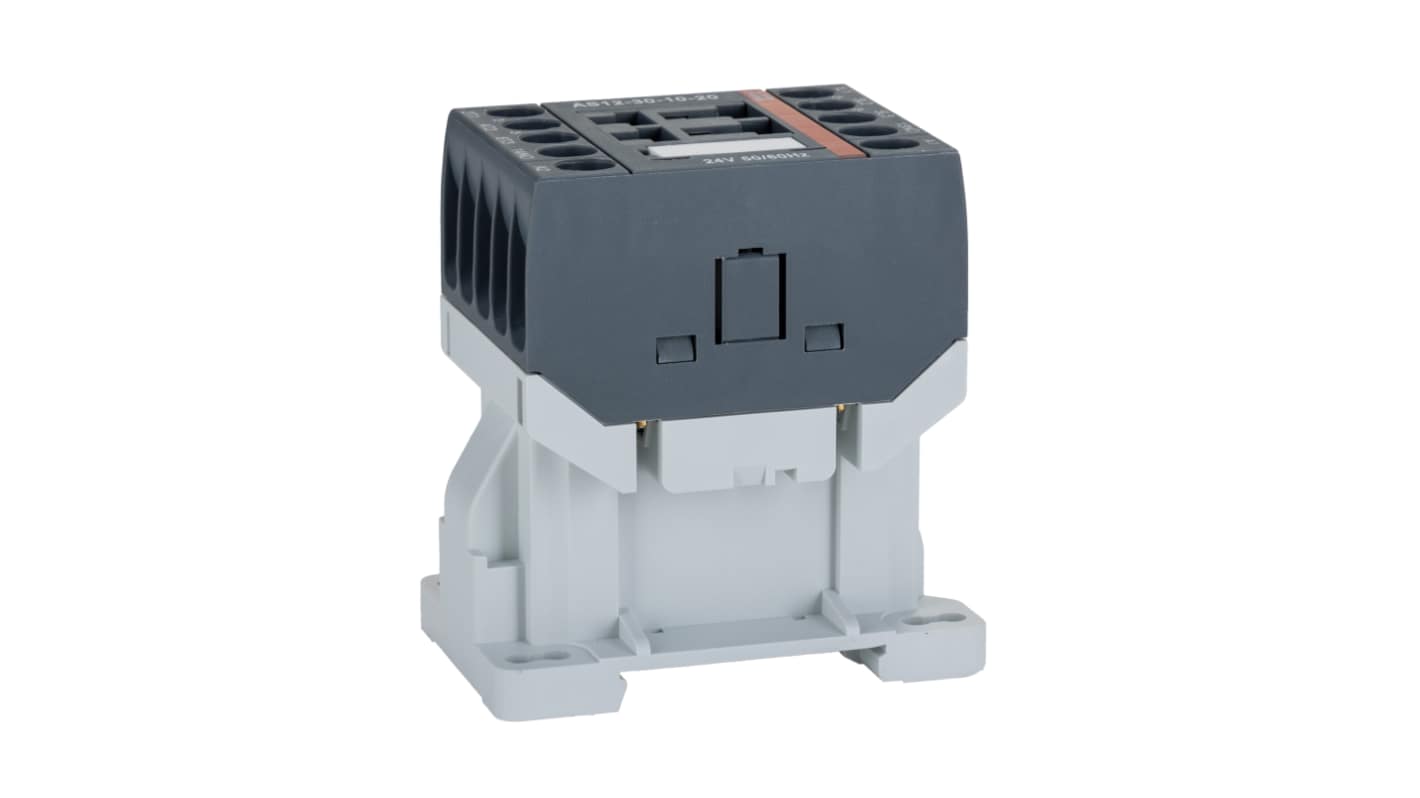

ABB A Line Contactor, 24V Coil, 3-Pole, 24 A, 3 kW 24V, 3 NO
- N° de stock RS:
- 225-5837
- Référence fabricant:
- 1SBL111001R2010 AS12-30-10-20
- Fabricant:
- ABB
Sous-total (1 unité)*
46,80 €
(TVA exclue)
56,63 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 10 unité(s) prête(s) à être expédiée(s)
- Plus 16 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 46,80 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 225-5837
- Référence fabricant:
- 1SBL111001R2010 AS12-30-10-20
- Fabricant:
- ABB
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | ABB | |
| Product Type | Contactor | |
| Coil Voltage | 24V | |
| Number of Poles | 3 | |
| Contact Current | 24A | |
| Series | A Line | |
| Power Rating | 3kW | |
| Function | Motor Control | |
| Mount Type | Front | |
| Normal State Configuration | 3 NO | |
| Auxiliary Contact Configuration | 1 NO | |
| Number of Auxiliary Contacts | 1 | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Operational Current Ie | 20A | |
| Control Circuit Voltage Uc | 24V | |
| Maximum Operating Temperature | 60°C | |
| Width | 45mm | |
| Length | 72.5mm | |
| Depth | 68mm | |
| Standards/Approvals | IEC 60947-5-1 | |
| Pole and Throw Configuration | 3 | |
| Sélectionner tout | ||
|---|---|---|
Marque ABB | ||
Product Type Contactor | ||
Coil Voltage 24V | ||
Number of Poles 3 | ||
Contact Current 24A | ||
Series A Line | ||
Power Rating 3kW | ||
Function Motor Control | ||
Mount Type Front | ||
Normal State Configuration 3 NO | ||
Auxiliary Contact Configuration 1 NO | ||
Number of Auxiliary Contacts 1 | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Operational Current Ie 20A | ||
Control Circuit Voltage Uc 24V | ||
Maximum Operating Temperature 60°C | ||
Width 45mm | ||
Length 72.5mm | ||
Depth 68mm | ||
Standards/Approvals IEC 60947-5-1 | ||
Pole and Throw Configuration 3 | ||
ABB Contactor, DIN Rail Mounting, 690V AC Contact Voltage Rating - A Line Series - 1SBL111001R2010 AS12-30-10-20
Fly through switching your system's electrical loads with this contactor from ABB. By managing motors rated up to 3kW, the device drives high-power equipment without a hitch. Thanks to a response time between 5 and 24ms, it's ideal for any setup where quick switching is essential. Labelled conductor terminals make identifying your connections a breeze. As the contactor comes with pre-drilled holes and supports either DIN-rail or surface mounting, it's highly versatile and easy to install.
Features & Benefits
• Protected against surge voltages up to 6kV to minimise the risk of damage from electrical faults
• Insulating plastic housing for effective user protection against dangerous loads
• Works in temperatures between -40°C and +70°C, so it's tough enough for industrial applications
Applications
• Woodworking facilities
• Machining equipment
• Battery production
• HVAC systems
Can I use this component around moving machinery?
Yes, this device clamps its conductors using screw terminals, so it has good resistance against vibration and jostling.
How big is this device?
It measures 78 (W) x 80 (L) x 48mm (H), so it takes up minimal space in a busy enclosure.
