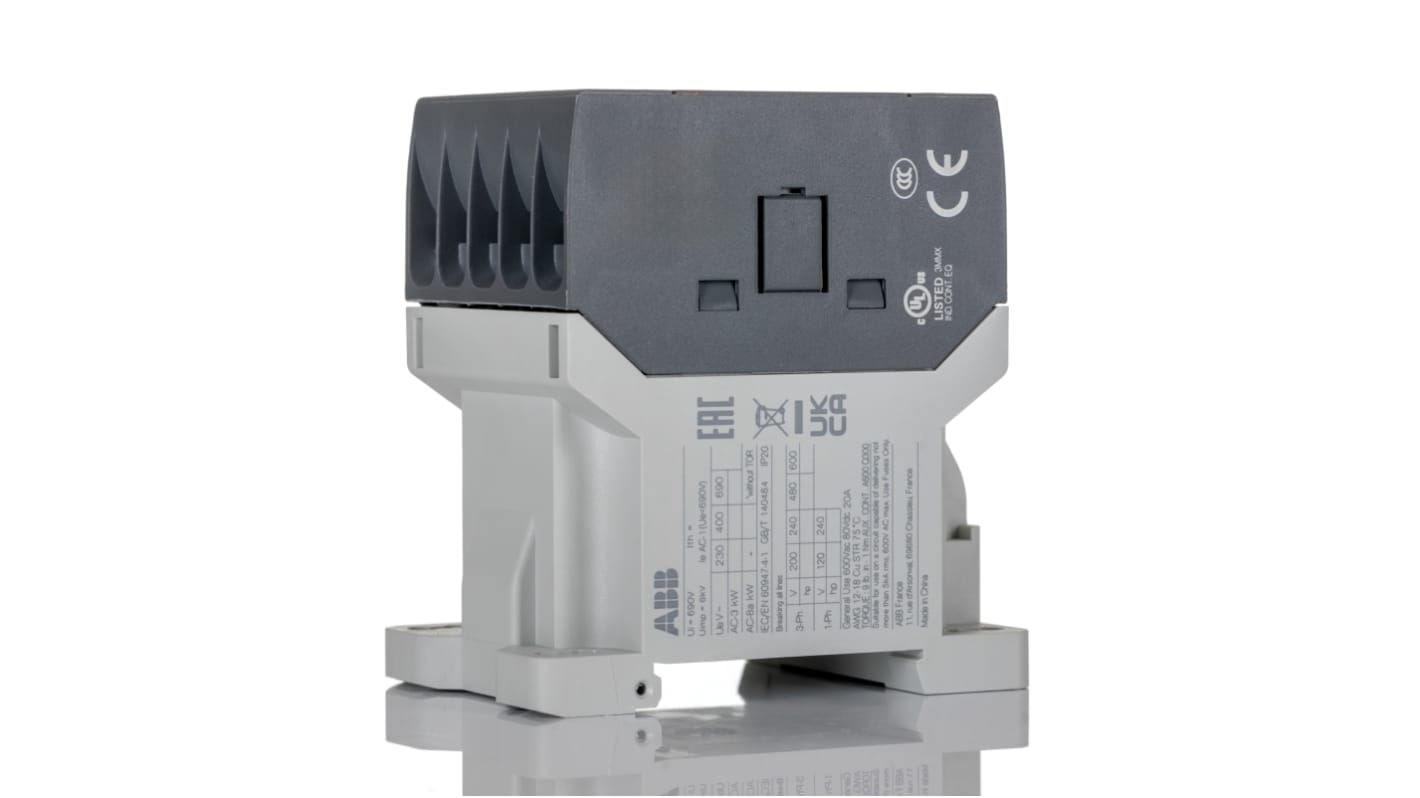

ABB Contactor, 24V Coil, 3-Pole, 24 A, 3 kW 24V, 3 NO
- N° de stock RS:
- 225-5836
- Numéro d'article Distrelec:
- 304-22-282
- Référence fabricant:
- 1SBL111001R2001 AS12-30-01-20
- Fabricant:
- ABB
Sous-total (1 unité)*
65,51 €
(TVA exclue)
79,27 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 40 unité(s) prête(s) à être expédiée(s)
- Plus 6 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 65,51 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 225-5836
- Numéro d'article Distrelec:
- 304-22-282
- Référence fabricant:
- 1SBL111001R2001 AS12-30-01-20
- Fabricant:
- ABB
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | ABB | |
| Coil Voltage | 24V | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Current | 24A | |
| Power Rating | 3kW | |
| Function | Motor Control | |
| Mount Type | Front | |
| Normal State Configuration | 3 NO | |
| Auxiliary Contact Configuration | 1 NC | |
| Number of Auxiliary Contacts | 1 | |
| Terminal Type | Screw | |
| Control Circuit Voltage Uc | 24V | |
| Minimum Operating Temperature | -25°C | |
| Operational Current Ie | 20A | |
| Maximum Operating Temperature | 60°C | |
| Depth | 68mm | |
| Width | 45mm | |
| Standards/Approvals | IEC 60947-5-1 | |
| Length | 73mm | |
| Pole and Throw Configuration | 3 | |
| Sélectionner tout | ||
|---|---|---|
Marque ABB | ||
Coil Voltage 24V | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Current 24A | ||
Power Rating 3kW | ||
Function Motor Control | ||
Mount Type Front | ||
Normal State Configuration 3 NO | ||
Auxiliary Contact Configuration 1 NC | ||
Number of Auxiliary Contacts 1 | ||
Terminal Type Screw | ||
Control Circuit Voltage Uc 24V | ||
Minimum Operating Temperature -25°C | ||
Operational Current Ie 20A | ||
Maximum Operating Temperature 60°C | ||
Depth 68mm | ||
Width 45mm | ||
Standards/Approvals IEC 60947-5-1 | ||
Length 73mm | ||
Pole and Throw Configuration 3 | ||
ABB Contactor, Screw Terminals, 690V AC Contact Voltage Rating - A Line Series - 1SBL111001R2001 AS12-30-01-20
Looking to switch your workspace's lighting setup in a flash? Fit this contactor from ABB. A built-in auxiliary contact means it signals a control device to switch linked equipment for smooth automated processing. As the unit operates in less than 24ms, it quickly responds to control signals to provide speedy system management. Compatibility with current up to 24A means it makes light work of demanding power distribution tasks. Screw terminals securely hold the unit's conductors to provide a high level of vibration resistance.
Features & Benefits
• Switches up to 1,200 times an hour to manage fast-moving control jobs
• Labelled terminals for clear identification of connections and easier maintenance
• Plastic insulation boosts electrical safety
• Weighs just 220g, so it's easy to handle and can be safely mounted on thin-gauge material
Applications
• Aerospace industry
• HVAC systems
• Material handling
• Factory floors
Can I fit this contactor in my low-profile control cabinet?
Yes, the device's compact dimensions of 45 (W) x 72.5 (H) x 68mm (D) ensure it slots neatly into slim enclosures where space is at a premium.
