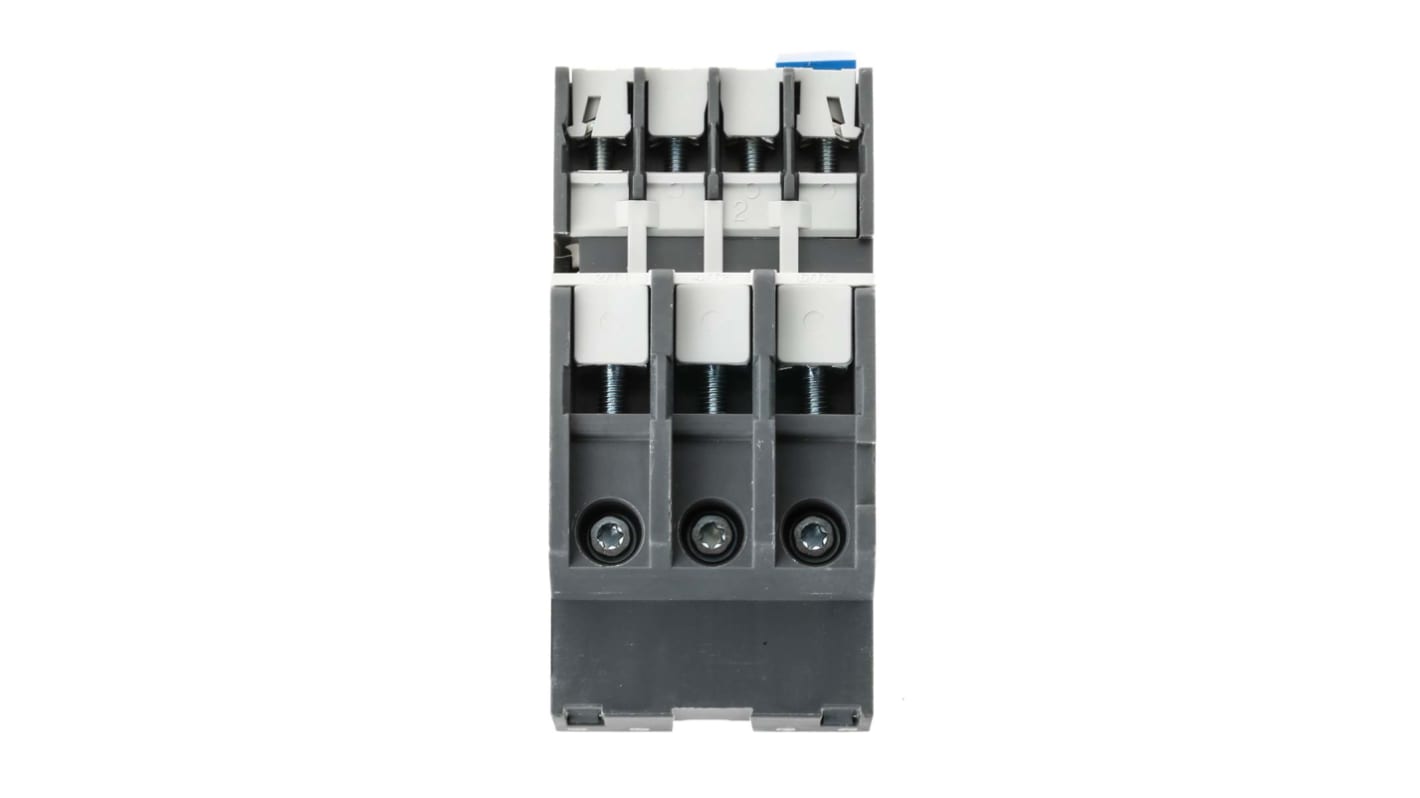

ABB TA25 Thermal Overload Relay 1NO + 1NC, 7.5 → 11 A F.L.C, 11 A Contact Rating, 2.2 W, 3P, A Line

Voir la catégorie
Indisponible
RS n'aura plus ce produit en stock.

Produit de remplacement

Ce produit n'est pas disponible actuellement. Voici notre produit de remplacement:

presentation
ABB TF42 Thermal Overload Relay 1NO + 1NC, 10 → 13 A F.L.C, 13 A Contact Rating, 2.2 W, 3P, AF Range
N° de stock RS
711-6644

la pièce

182,75 €

(TVA exclue)

221,13 €

(TVA incluse)

N° de stock RS:
445-7826
Référence fabricant:
1SAZ211201R1043
Fabricant:
ABB
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

ABB

FLC Motor Rating

7.5 → 11 A

Contact Current Rating

11 A

Range

A Line

Pole Configuration

3P

Series

TA25

Mounting Style

Clip On

Power Rating

2.2 W

Normal State Configuration

1NO + 1NC

Reset Method

Automatic, Manual

Terminal Type

Screw

Width

44mm

Number Of Auxiliary Contacts

2

Length

80mm

Depth

94mm

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+55°C

Operating Temperature Range

-25 → +55 °C

Contact Voltage Rating

690 V ac

Statut RoHS non applicable

ABB Thermal Overload Relay, Clip-On Mounting, 10A Trip Class - TA25 Series - 1SAZ211201R1043


Shield your electronic device from faults using this thermal overload relay from ABB. When the motor draws excess current, the unit protects the circuit and windings from overheating. You can adjust the motor rating between 7.5 and 11A to meet your equipment's demands. The housing is rated IP20, meaning your fingers are protected from live parts so there's no risk of getting a shock. Mount this relay in a jiffy by clipping it to your contactor in a vertical position. It's resistant to mechanical shock for durability in challenging operations.

Features & Benefits


• Rated impulse withstand voltage of 6kV assures you it can withstand high-voltage fault currents
• STOP and test function for quick troubleshooting
• Trip indicator lets you check the unit's status at a glance
• Operational current rating of 11A for safe use in heavy-duty equipment

Applications


• Electrical engineering
• HVAC systems
• Conveyor belts
• Construction sites

What type of contactor can I use this relay with?


To complete the setup, use this relay with a block contactor from the A9 to A40 ranges.

Can I reset this relay?


Yes, you can reset this relay using the automatic or manual reset mechanism.
