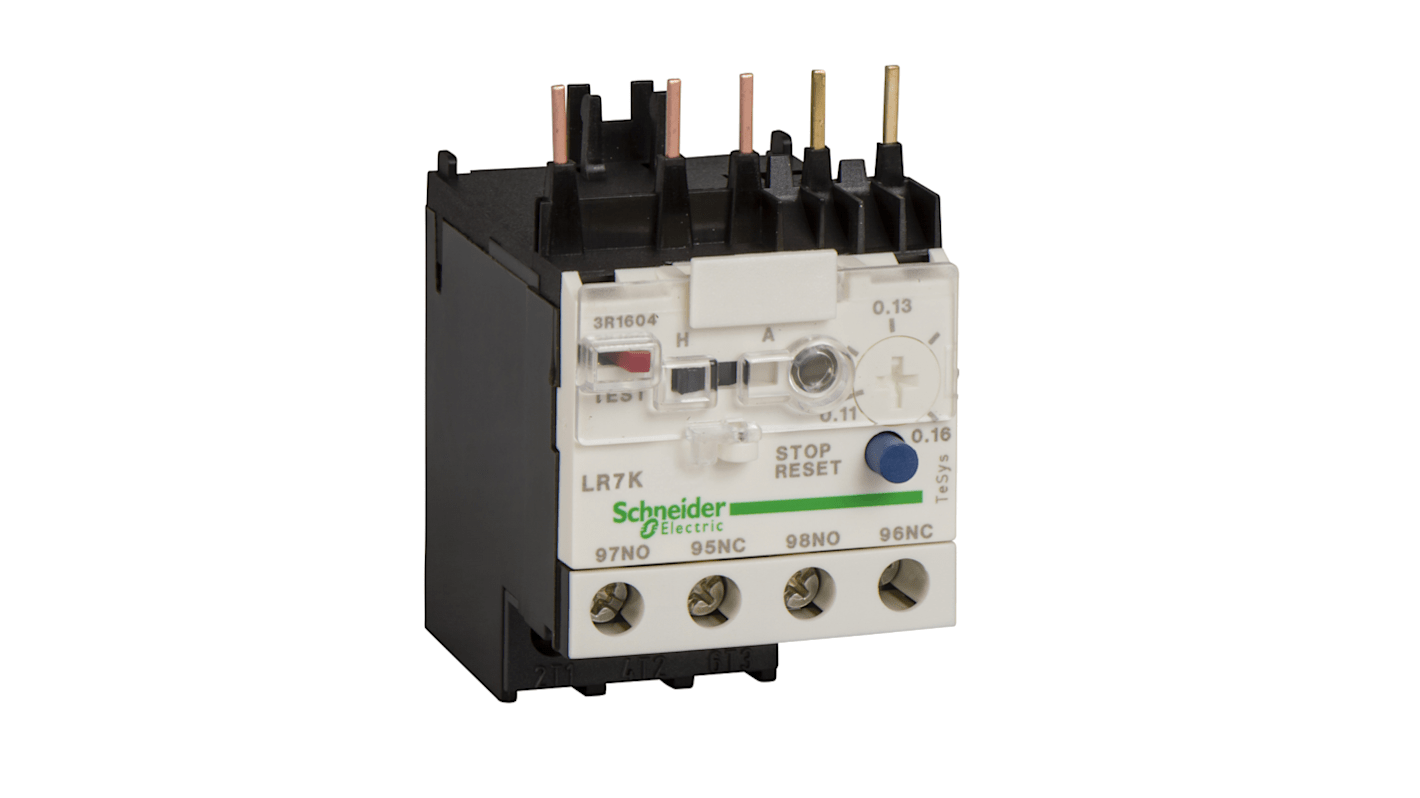

Schneider Electric, TeSyS LR Thermal Overload Relay 1 NO/1 NC, 3.7A, 5.5 A F.L.C, 6A Contact Rating, 2 W
- N° de stock RS:
- 256-6657
- Référence fabricant:
- LR7K0312
- Fabricant:
- Schneider Electric
Sous-total (1 unité)*
104,28 €
(TVA exclue)
126,18 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 5 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 104,28 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 256-6657
- Référence fabricant:
- LR7K0312
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Product Type | Thermal Overload Relay | |
| FLC Motor Rating | 3.7, 5.5A | |
| Relay Contact Current | 6A | |
| Mount Type | Plate, Rail | |
| Series | TeSyS LR | |
| Power Rating | 2W | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw Clamp | |
| IP Rating | IP2X | |
| Reset Method | Push Button or Electric | |
| Number of Auxiliary Contacts | 2 | |
| Minimum Operating Temperature | -20°C | |
| Width | 45mm | |
| Maximum Operating Temperature | 55°C | |
| Length | 58mm | |
| Depth | 65mm | |
| Standards/Approvals | IEC, VDE | |
| Supply Voltage | 690V ac | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Product Type Thermal Overload Relay | ||
FLC Motor Rating 3.7, 5.5A | ||
Relay Contact Current 6A | ||
Mount Type Plate, Rail | ||
Series TeSyS LR | ||
Power Rating 2W | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw Clamp | ||
IP Rating IP2X | ||
Reset Method Push Button or Electric | ||
Number of Auxiliary Contacts 2 | ||
Minimum Operating Temperature -20°C | ||
Width 45mm | ||
Maximum Operating Temperature 55°C | ||
Length 58mm | ||
Depth 65mm | ||
Standards/Approvals IEC, VDE | ||
Supply Voltage 690V ac | ||
- Pays d'origine :
- CZ
The Schneider Electric non differential thermal overload relay for protection of 3-phase motors. Non differential device, it can be used with unbalanced loads. It provides a thermal adjustment dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons and a flag indicator. Settings are protected by a transparent cover lockable by sealing.
Easy to separate
Designed for simple control systems
Relay trip indicator to facilitate motor status monitoring
