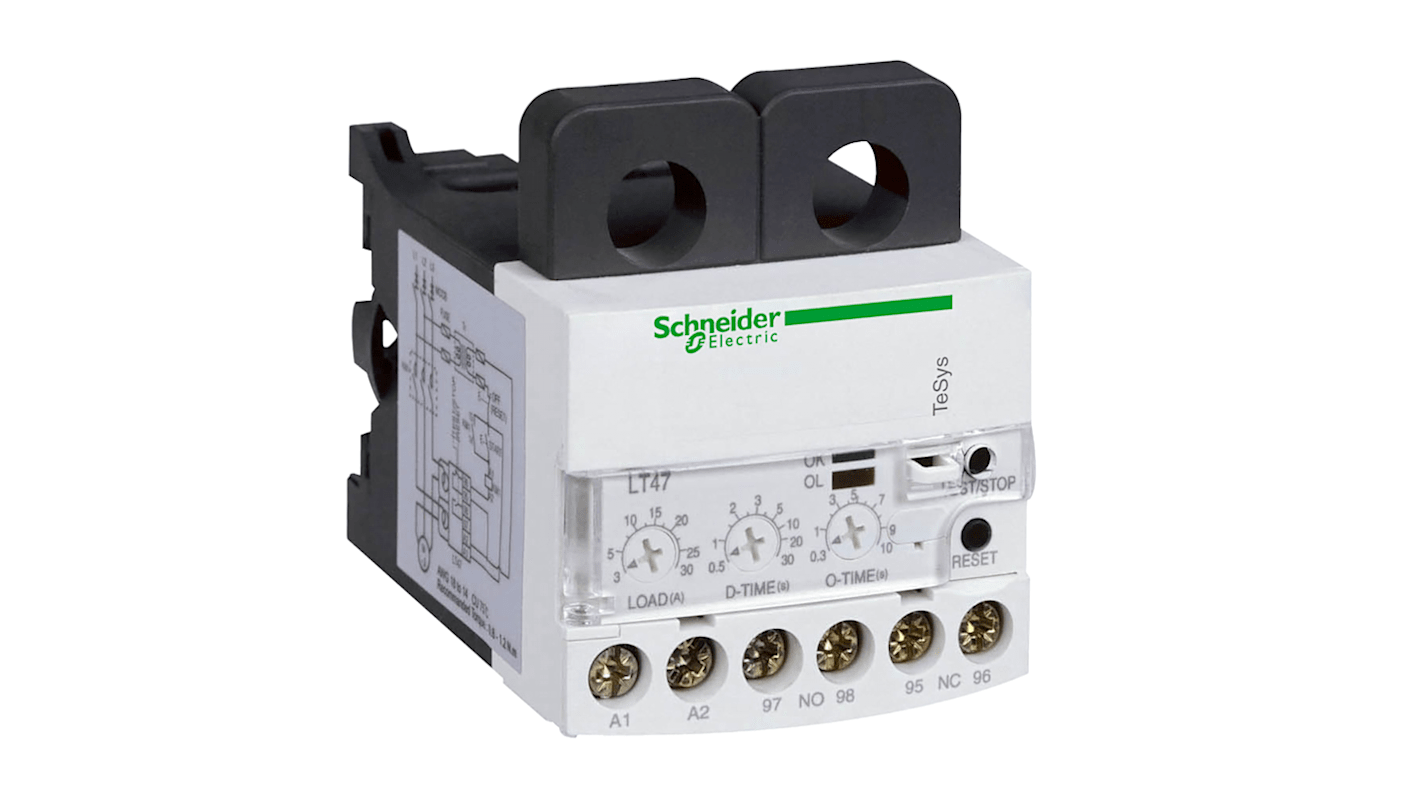

Schneider Electric, TeSyS LR Electronic Overload Relay 1 NO/1 NC, 6A F.L.C, 6A Contact Rating, 240V ac
- N° de stock RS:
- 211-1848
- Référence fabricant:
- LT4706M7S
- Fabricant:
- Schneider Electric
Sous-total (1 unité)*
81,13 €
(TVA exclue)
98,17 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 8 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 81,13 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 211-1848
- Référence fabricant:
- LT4706M7S
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| FLC Motor Rating | 6A | |
| Product Type | Electronic Overload Relay | |
| Relay Contact Current | 6A | |
| Series | TeSyS LR | |
| Mount Type | Rail | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw Clamp Terminal | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Adjustable Current Range | 0.5 → 6 A | |
| Number of Auxiliary Contacts | 2 | |
| Width | 71mm | |
| Contact Voltage | 690V | |
| Maximum Operating Temperature | 60°C | |
| Length | 70.3mm | |
| Depth | 77.2mm | |
| Standards/Approvals | IEC 60255-6, UL CSA, IEC 60947 | |
| Control Voltage | 240V ac | |
| Supply Voltage | 200, 240V ac | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
FLC Motor Rating 6A | ||
Product Type Electronic Overload Relay | ||
Relay Contact Current 6A | ||
Series TeSyS LR | ||
Mount Type Rail | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw Clamp Terminal | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Adjustable Current Range 0.5 → 6 A | ||
Number of Auxiliary Contacts 2 | ||
Width 71mm | ||
Contact Voltage 690V | ||
Maximum Operating Temperature 60°C | ||
Length 70.3mm | ||
Depth 77.2mm | ||
Standards/Approvals IEC 60255-6, UL CSA, IEC 60947 | ||
Control Voltage 240V ac | ||
Supply Voltage 200, 240V ac | ||
- Pays d'origine :
- KR
The Schneider Electric TeSys Series is best suited for applications involving Motor Control and Starting of Motor. The Schneider Electric series is known for providing a better compatibility which makes it The Schneider Electric best choice for this application.
Easy maintenance checks, check The Schnieder Electric's tightening of cables through conducting thermographic testing and checking The Schnieder Electric's mechanical operation of The Schnieder Electric's product through manually operating The Schnieder E
