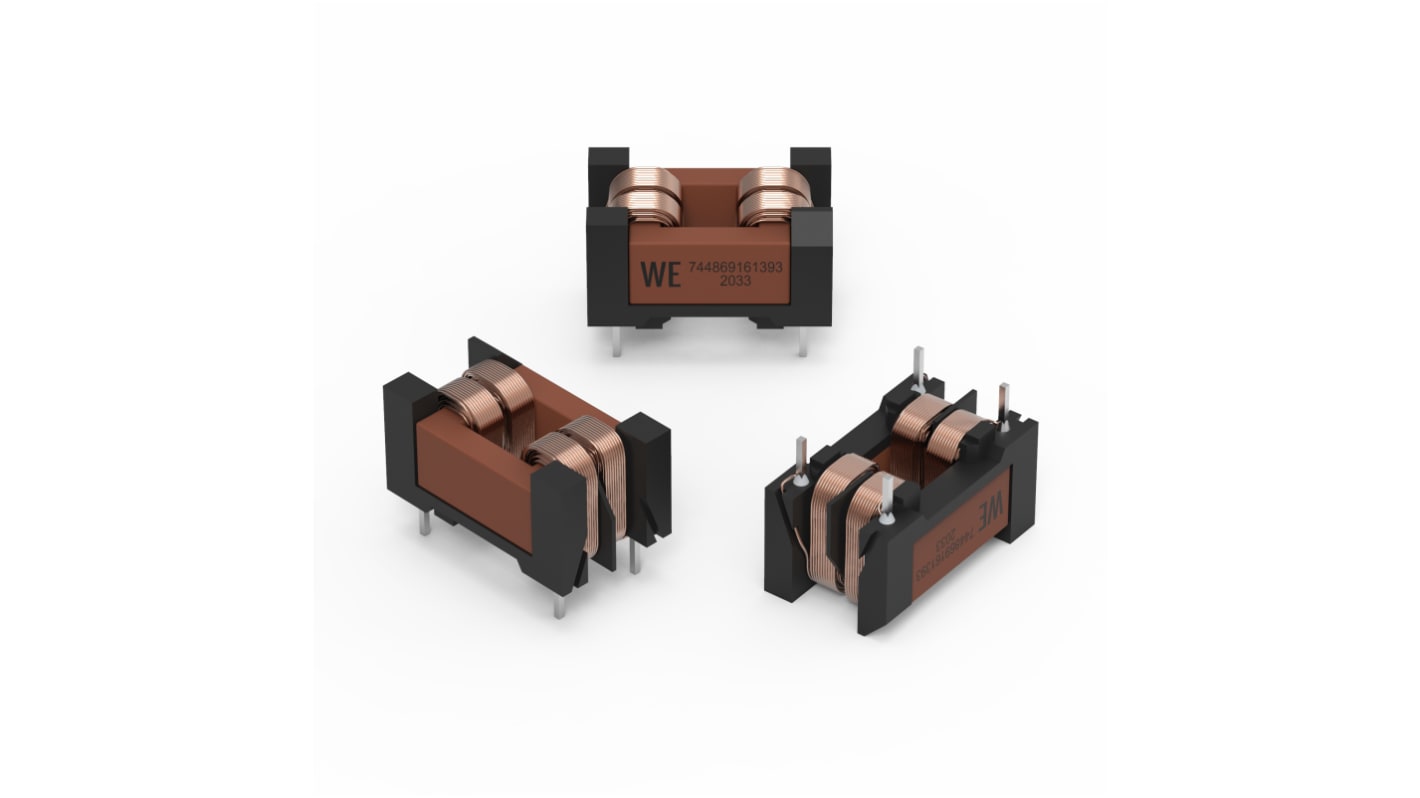

Wurth Elektronik 100 mH 400 mA Common Mode Choke 3470 mΩ 250V
- N° de stock RS:
- 245-8557
- Numéro d'article Distrelec:
- 302-54-230
- Référence fabricant:
- 744869161104
- Fabricant:
- Wurth Elektronik
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
3,02 €
(TVA exclue)
3,65 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 67 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 3,02 € |
| 10 - 19 | 2,74 € |
| 20 + | 2,50 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 245-8557
- Numéro d'article Distrelec:
- 302-54-230
- Référence fabricant:
- 744869161104
- Fabricant:
- Wurth Elektronik
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Wurth Elektronik | |
| Inductance | 100mH | |
| Product Type | Common Mode Choke | |
| Series | WE-FCLP | |
| Maximum DC Current | 400mA | |
| Packaging | Tray | |
| Test Frequency | 10kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Automotive Standard | No | |
| Choke Voltage | 250V | |
| Pin Count | 4 | |
| Mount Type | Through Hole | |
| Inductance Tolerance | -30 → 50 % | |
| Maximum DC Resistance | 3470mΩ | |
| Standards/Approvals | RoHS, REACH | |
| Height | 14.5mm | |
| Length | 24.5mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Wurth Elektronik | ||
Inductance 100mH | ||
Product Type Common Mode Choke | ||
Series WE-FCLP | ||
Maximum DC Current 400mA | ||
Packaging Tray | ||
Test Frequency 10kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Automotive Standard No | ||
Choke Voltage 250V | ||
Pin Count 4 | ||
Mount Type Through Hole | ||
Inductance Tolerance -30 → 50 % | ||
Maximum DC Resistance 3470mΩ | ||
Standards/Approvals RoHS, REACH | ||
Height 14.5mm | ||
Length 24.5mm | ||
- Pays d'origine :
- CN
Wurth Elektronik WE-FCLP Series Common Mode Choke, 100mH Inductance, 250V Choke Voltage - 744869161104
This common mode choke is a through-hole electromagnetic component designed to suppress interference between conductors in signal and power circuits. It operates across a wide temperature range and is supplied in tray packaging for orderly handling. The component is suitable for applications requiring modest current capacity and specific inductance characteristics while meeting contemporary material-substance restrictions.
Features and Benefits:
• 100mH inductance reduces differential noise in paired lines
• -30 to +50% inductance tolerance supports broad design margins
• 0.4A maximum DC current prevents overheating under light loads
• 3470mΩ maximum DC resistance minimises voltage drop
• 125°C maximum operating temperature sustains elevated thermal environments
• -30 to +50% inductance tolerance supports broad design margins
• 0.4A maximum DC current prevents overheating under light loads
• 3470mΩ maximum DC resistance minimises voltage drop
• 125°C maximum operating temperature sustains elevated thermal environments
Applications
• Suitable for EMI suppression in low-current power rails
• Ideal for filtering in industrial control interfaces
• Used with signal lines requiring common-mode attenuation
• Can be used for noise reduction in instrumentation circuits
• Ideal for filtering in industrial control interfaces
• Used with signal lines requiring common-mode attenuation
• Can be used for noise reduction in instrumentation circuits
What are the permitted environmental limits for this component?
It operates between -40°C and 125°C as its minimum and maximum temperatures.
How is the component supplied for assembly processes?
It is provided in trays to facilitate storage and through-hole insertion workflows.
What frequency was used to verify its inductance behaviour?
Measurements were conducted at a 10kHz test frequency.
Are there any substance-restriction compliances associated with it?
It conforms to RoHS and REACH requirements.
