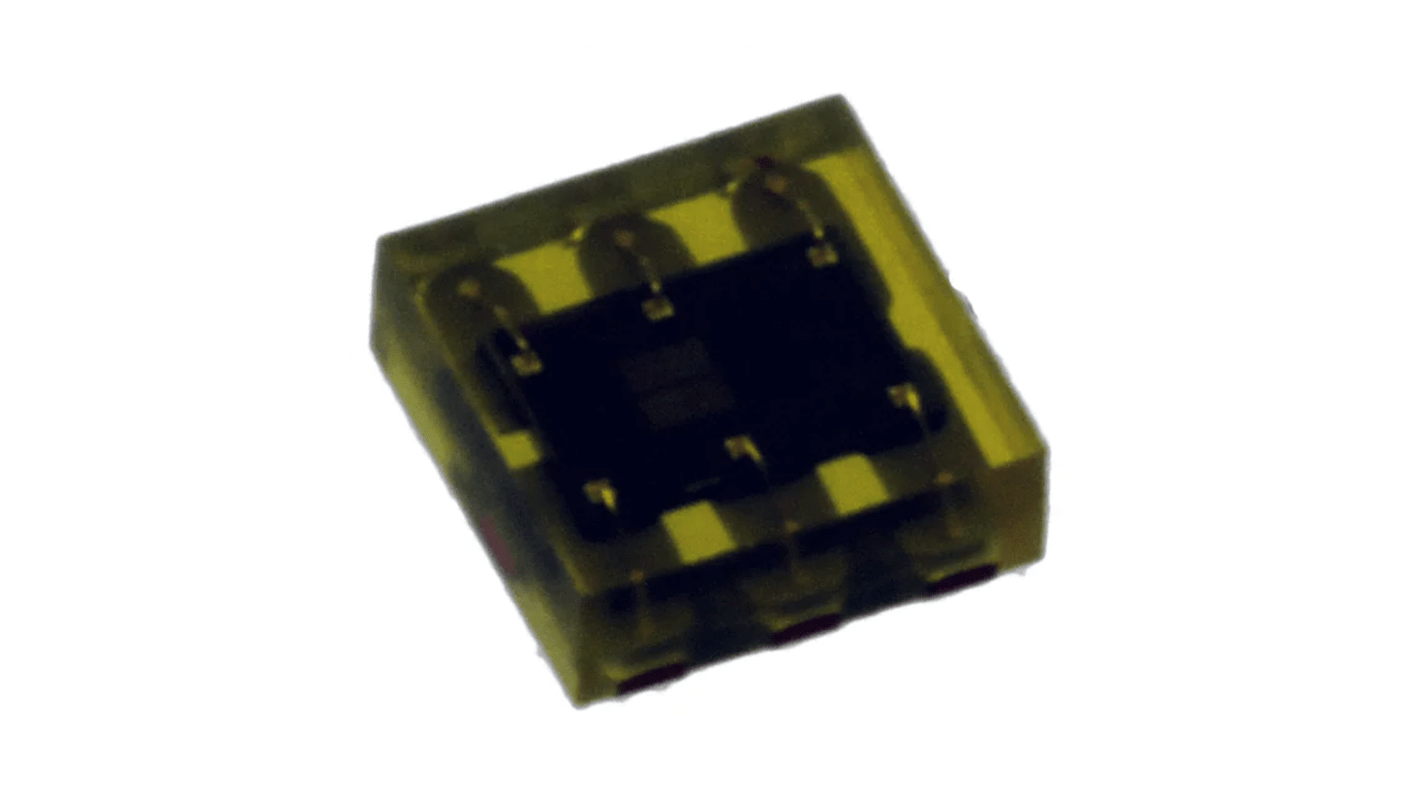

ams OSRAM Colour & Light Sensor Colour Light 615 nm 6-Pin FN
- N° de stock RS:
- 232-9715P
- Référence fabricant:
- TCS34001FNM
- Fabricant:
- ams OSRAM
Offre groupée disponible
Consulter les options de prix de grosSous-total 10 unités (conditionné en bande continue)*
25,25 €
(TVA exclue)
30,55 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 374 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 10 - 48 | 2,525 € |
| 50 - 98 | 1,81 € |
| 100 - 248 | 1,765 € |
| 250 + | 1,67 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 232-9715P
- Référence fabricant:
- TCS34001FNM
- Fabricant:
- ams OSRAM
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | ams OSRAM | |
| Product Type | Colour & Light Sensor | |
| Sub Type | Colour Light | |
| Peak Wavelength | 615nm | |
| Mount Type | Surface | |
| Package Type | FN | |
| Maximum Frequency | 400kHz | |
| Pin Count | 6 | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | No | |
| Width | 2mm | |
| Series | TCS3400 | |
| Length | 2.4mm | |
| Height | 0.65mm | |
| Maximum Operating Temperature | 70°C | |
| Supply Current | 330μA | |
| Automotive Standard | No | |
| Technology | Digital | |
| Sélectionner tout | ||
|---|---|---|
Marque ams OSRAM | ||
Product Type Colour & Light Sensor | ||
Sub Type Colour Light | ||
Peak Wavelength 615nm | ||
Mount Type Surface | ||
Package Type FN | ||
Maximum Frequency 400kHz | ||
Pin Count 6 | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals No | ||
Width 2mm | ||
Series TCS3400 | ||
Length 2.4mm | ||
Height 0.65mm | ||
Maximum Operating Temperature 70°C | ||
Supply Current 330μA | ||
Automotive Standard No | ||
Technology Digital | ||
- Pays d'origine :
- TH
The ams TCS3400 device family provides colour and IR ambient light sensing. The improved accuracy lux and colour temperature measurement from colour sensing is typically used to adjust the backlight intensity and correct the display colour gamut. Additionally it can be used for light source type detection as it reports the IR content of the light.
1M:1 dynamic range
360⁰ circular RGBC photodiodes
Clear and IR reference channels
Integrated single device optical solution
Enables IR light measurement for light-source detection
Enables accurate colour sensing and ALS under varying lighting conditions
E
