RS PRO 500VA 2 Output Chassis Mounting Transformer, 2 x 12V ac, IEC 61558-2-6

Voir la catégorie

Sous-total (1 unité)*

218,72 €

(TVA exclue)

264,65 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 7 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +218,72 €

*Prix donné à titre indicatif

N° de stock RS:
123-4148
Fabricant:
RS PRO
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

RS PRO

Primary Voltage Rating

230 → 400V ac

Secondary Voltage Rating

2 x 12V ac

Power Rating

500VA

Number of Outputs

2

Mounting Type

DIN Rail, Panel

Primary Winding Resistance

2.0/4.9Ω

Efficiency

90%

Length

120mm

Width

124mm

Depth

125mm

Dimensions

120 x 124 x 125mm

Fixing Hole Diameter

5.8 x 12mm

Weight

6.9kg

Minimum Operating Frequency

50Hz

Standards Met

IEC 61558-2-6

Maximum Operating Frequency

60Hz

Maximum Temperature

(Ambient) 70°C

Minimum Temperature

-30°C

Pays d'origine :
PL

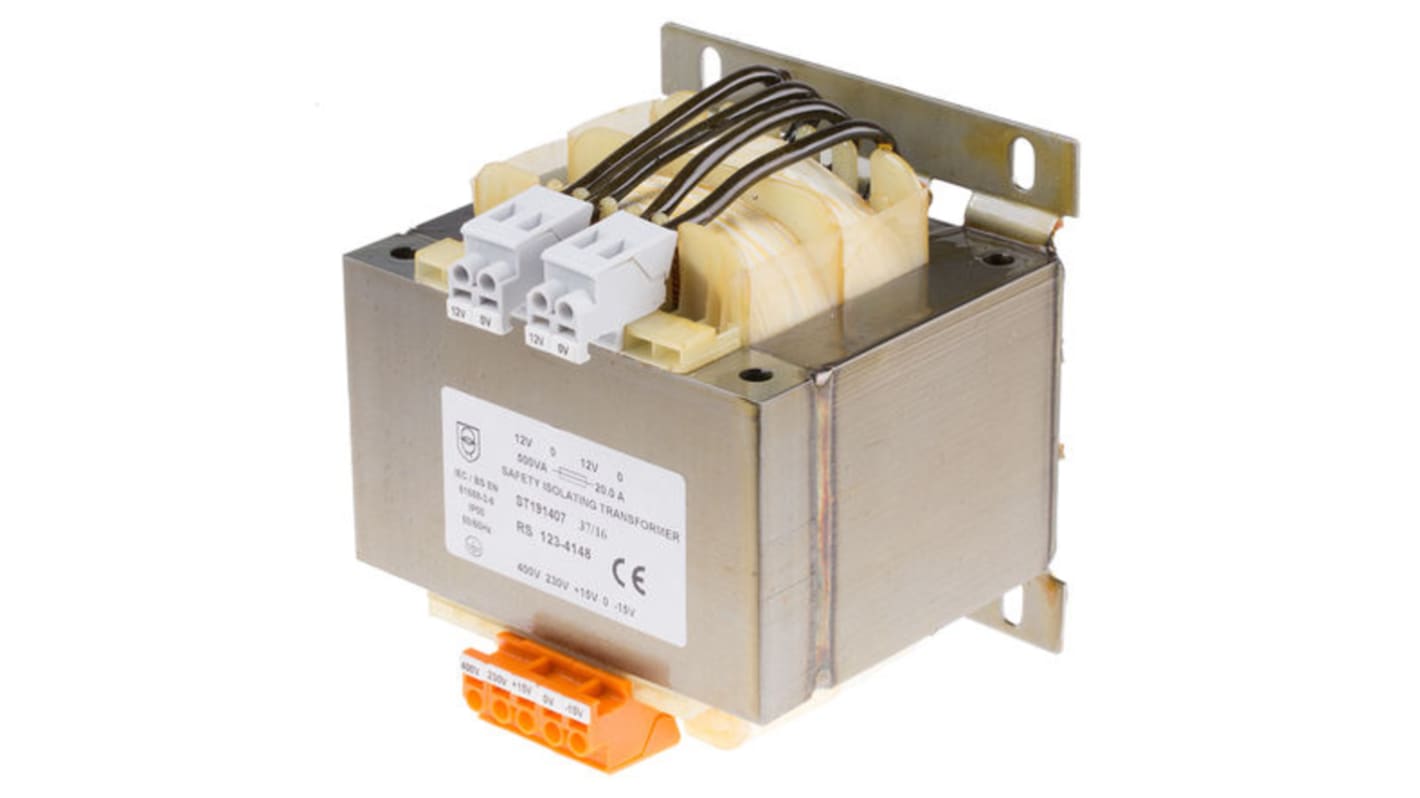

RS PRO 2 x 12V Single Phase DIN Rail Mount Isolation Transformer (500VA)


A high quality and reliable DIN rail mount transformer suitable for use in general purpose applications. A 500VA single phase transformer with screw connectors for multiple input and standard primary windings 0-230-400Vac with a possible +/-15V adjustment around 0.

Built for high efficiency with a low regulation design the DIN rail mount transformer has been 100% electrical and flash tested and features full vanish impregnation.

The isolating transformer is suitable for a wide range of applications including electrical control panels, electromagnetic applications, control systems, relays, pumps and heating elements.

Features and Benefits


Isolating transformer
DIN rail mount
Primary winding 0-230/400V ac (-/+15V adjustment around 0)
2 section bobbin
Earth terminal provided
Multiple input
Low noise laminations
Full varnish impregnation
100% electrical and flash tested

Standards and Approvals: IEC/BS/EN 61558-1, AS/NZS 61558.1, IEC/BS/EN 61558-2-6
