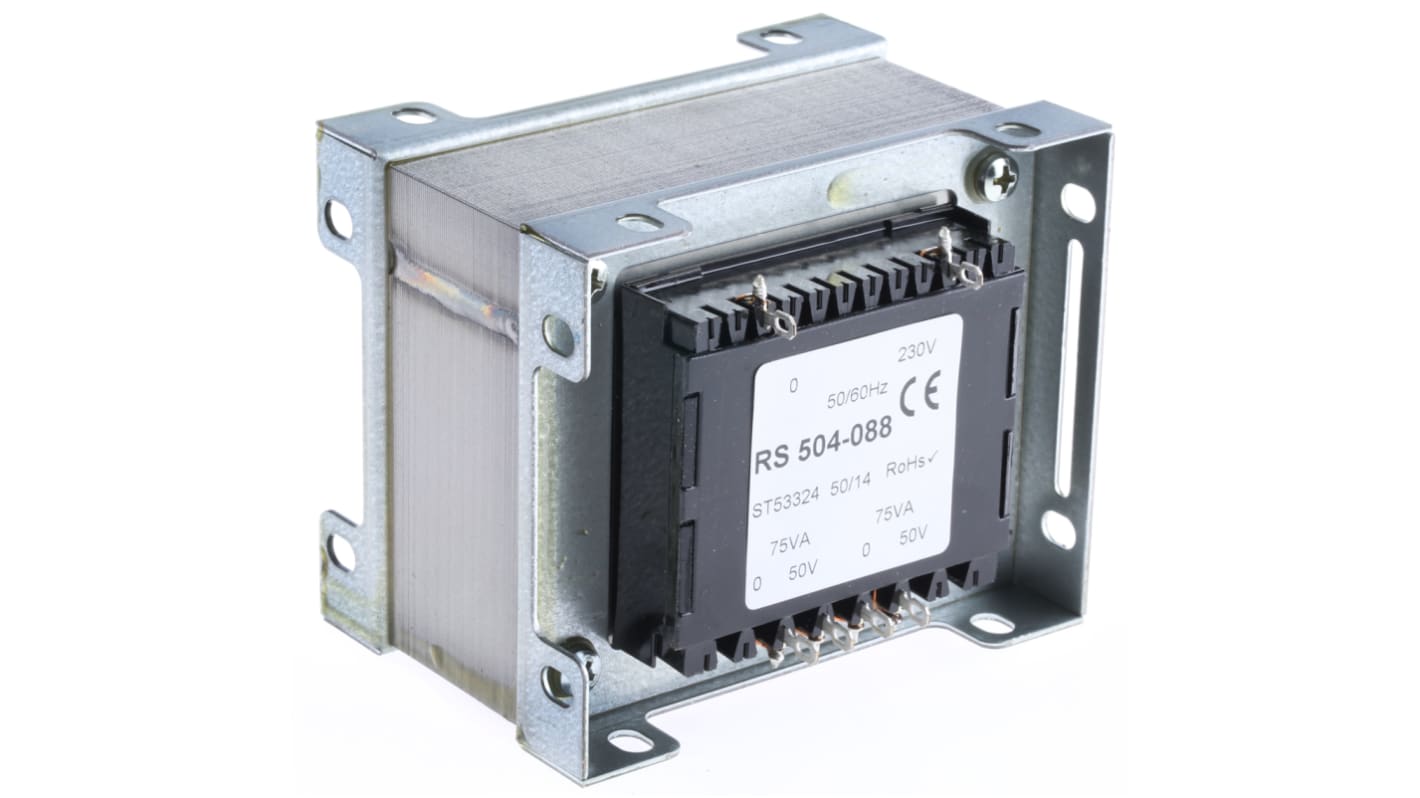

RS PRO 150VA 2 Output Chassis Mounting Transformer, 50V ac, IEC 61558-2-4
- N° de stock RS:
- 504-088
- Fabricant:
- RS PRO
Offre groupée disponible
Sous-total (1 unité)*
84,18 €
(TVA exclue)
101,86 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 9 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 84,18 € |
| 10 + | 75,85 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 504-088
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Primary Voltage Rating | 230V ac | |
| Secondary Voltage Rating | 50V ac | |
| Power Rating | 150VA | |
| Number of Outputs | 2 | |
| Mounting Type | Chassis | |
| Primary Winding Resistance | 10.8Ω | |
| Efficiency | 90% | |
| Length | 100mm | |
| Width | 82mm | |
| Depth | 82mm | |
| Dimensions | 100 x 82 x 82mm | |
| Fixing Hole Diameter | 5.5 x 8.5mm | |
| Weight | 2kg | |
| Minimum Operating Frequency | 50Hz | |
| Standards Met | IEC 61558-2-4 | |
| Maximum Operating Frequency | 60Hz | |
| Minimum Temperature | -30°C | |
| Maximum Temperature | (Ambient) 70°C | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Primary Voltage Rating 230V ac | ||
Secondary Voltage Rating 50V ac | ||
Power Rating 150VA | ||
Number of Outputs 2 | ||
Mounting Type Chassis | ||
Primary Winding Resistance 10.8Ω | ||
Efficiency 90% | ||
Length 100mm | ||
Width 82mm | ||
Depth 82mm | ||
Dimensions 100 x 82 x 82mm | ||
Fixing Hole Diameter 5.5 x 8.5mm | ||
Weight 2kg | ||
Minimum Operating Frequency 50Hz | ||
Standards Met IEC 61558-2-4 | ||
Maximum Operating Frequency 60Hz | ||
Minimum Temperature -30°C | ||
Maximum Temperature (Ambient) 70°C | ||
- Pays d'origine :
- PL
Chassis Mount Frame 75VA to 200VA
The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Optional terminal shrouds for 75VA and 100VA
Chassis Mount Frame 75VA to 200VA
The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Optional terminal shrouds for 75VA and 100VA(503-928)
The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Optional terminal shrouds for 75VA and 100VA(503-928)
Standards
BS3535; EN 60 742
