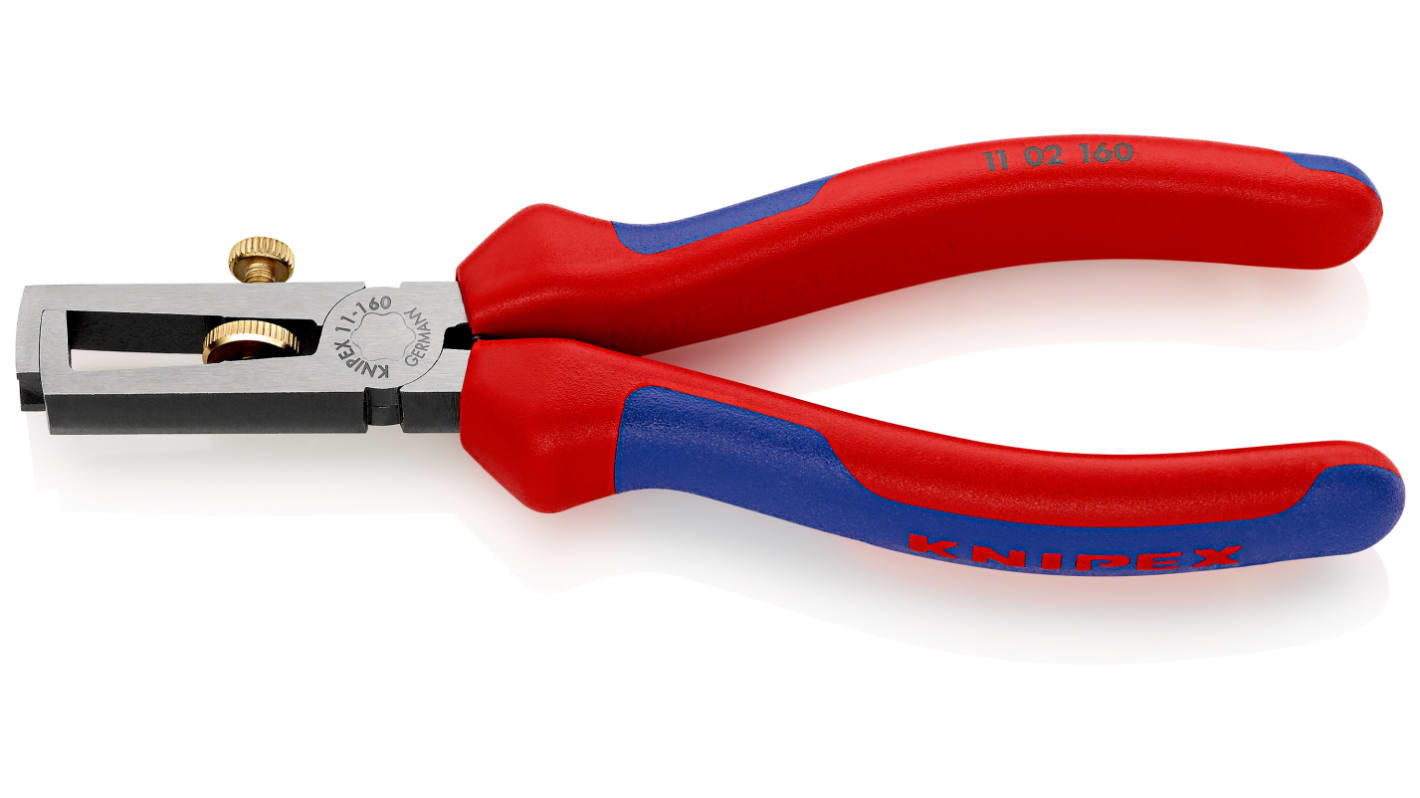

Knipex 11 02 160 Series Universal stripping pliers, 0.1 mm² Min, 10 mm² Max, 160 mm Overall
- N° de stock RS:
- 158-5518
- Référence fabricant:
- 11 02 160
- Fabricant:
- Knipex
Indisponible
RS n'aura plus ce produit en stock.
Produit de remplacement
Ce produit n'est pas disponible actuellement. Voici notre produit de remplacement:
la pièce
28,60 €
(TVA exclue)
34,61 €
(TVA incluse)
- N° de stock RS:
- 158-5518
- Référence fabricant:
- 11 02 160
- Fabricant:
- Knipex
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Knipex | |
| Cable Type | Multicore, Single core | |
| Stripping Range | 0.1 → 10mm² | |
| Minimum Size | 0.1 mm² | |
| Maximum Size | 10 mm² | |
| Overall Length | 160 mm | |
| Series | 11 02 160 | |
| Sélectionner tout | ||
|---|---|---|
Marque Knipex | ||
Cable Type Multicore, Single core | ||
Stripping Range 0.1 → 10mm² | ||
Minimum Size 0.1 mm² | ||
Maximum Size 10 mm² | ||
Overall Length 160 mm | ||
Series 11 02 160 | ||
Statut RoHS : Exempté
Stripping pliers 160mm with spring
For single and multi-wire conductors and fine wires, max. plastic or rubber insulation - Ø 5.0 mm and 10 mm² cross-section
Features and benefits
Particularly practical thanks to dual component handles.
Can be used up to 10 mm².
Easy adjustment of the cable or wire diameter with knurled nut and lock nut.
Total length: 160 mm.
With this classic wire stripper, there will be no damage to the wire lamination film due to its V-shape, but the adjustment of the stripper will have to be precise.
Can be used up to 10 mm².
Easy adjustment of the cable or wire diameter with knurled nut and lock nut.
Total length: 160 mm.
With this classic wire stripper, there will be no damage to the wire lamination film due to its V-shape, but the adjustment of the stripper will have to be precise.
Special tool steel, forged, oil-hardened.
