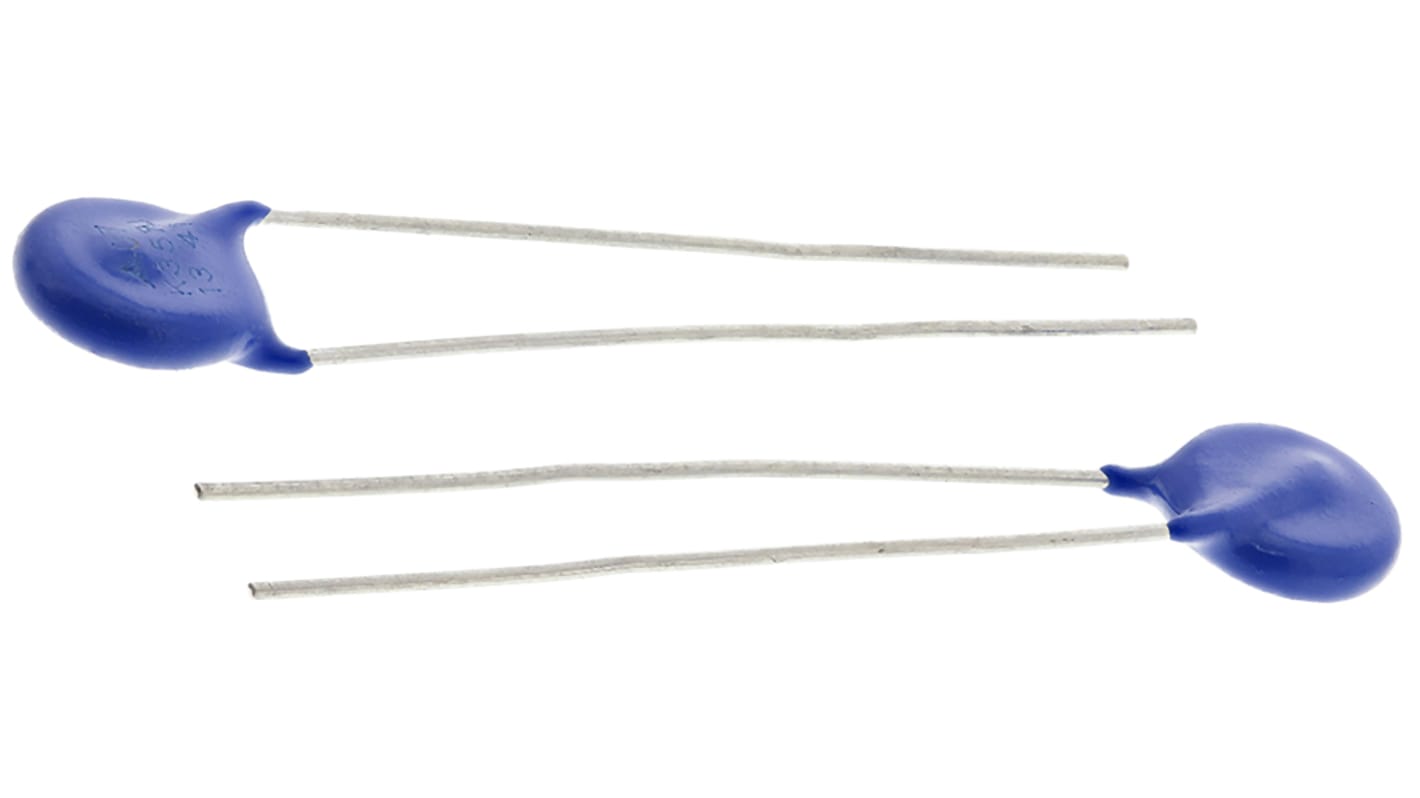

EPCOS, Standard Metal Oxide Varistor 1.05nF 2.5A, Clamping 110V, Varistor 35V
- N° de stock RS:
- 289-7496P
- Référence fabricant:
- B72207S0350K101
- Fabricant:
- EPCOS
Offre groupée disponible
Sous-total 50 unités (conditionné en sac)*
19,10 €
(TVA exclue)
23,10 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 465 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
---|---|
50 - 95 | 0,382 € |
100 - 245 | 0,352 € |
250 - 495 | 0,332 € |
500 + | 0,30 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 289-7496P
- Référence fabricant:
- B72207S0350K101
- Fabricant:
- EPCOS
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
---|---|---|
Marque | EPCOS | |
Varistor Voltage | 35V | |
Maximum AC Voltage Rating | 35V | |
Maximum DC Voltage Rating | 45V | |
Clamping Voltage | 110V | |
Clamping Current | 2.5A | |
Energy | 2.5J | |
Material | Metal | |
Series | Standard | |
Diameter | 9mm | |
Maximum Surge Current | 250A | |
Capacitance | 1.05nF | |
Length | 36mm | |
Thickness | 3.9mm | |
Dimensions | 9 (Dia.) x 3.9mm | |
Lead Pitch | 5mm | |
Sélectionner tout | ||
---|---|---|
Marque EPCOS | ||
Varistor Voltage 35V | ||
Maximum AC Voltage Rating 35V | ||
Maximum DC Voltage Rating 45V | ||
Clamping Voltage 110V | ||
Clamping Current 2.5A | ||
Energy 2.5J | ||
Material Metal | ||
Series Standard | ||
Diameter 9mm | ||
Maximum Surge Current 250A | ||
Capacitance 1.05nF | ||
Length 36mm | ||
Thickness 3.9mm | ||
Dimensions 9 (Dia.) x 3.9mm | ||
Lead Pitch 5mm | ||
