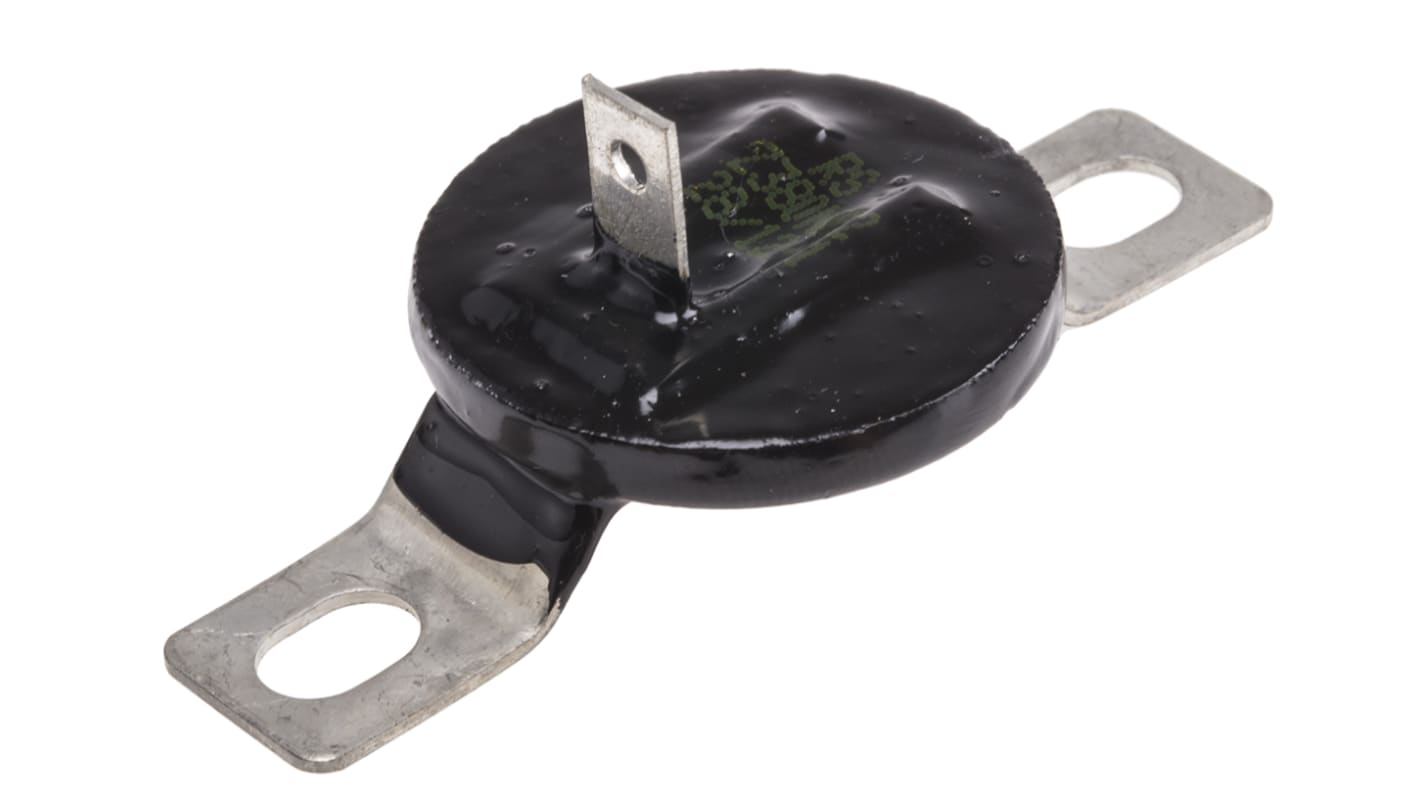

RS PRO, High Power Metal Oxide Varistor 1.71 nF, Clamping 1050 V, Varistor 610 V
- N° de stock RS:
- 240-185
- Fabricant:
- RS PRO
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau en stock, il n'est plus vendu par le fabricant.
- N° de stock RS:
- 240-185
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Product Type | Metal Oxide Varistor | |
| Varistor Voltage | 610 V | |
| Clamping Voltage VC | 1050V | |
| Series | High Power | |
| Diameter | 32mm | |
| Maximum AC Voltage | 420V ac | |
| Maximum Surge Current | 10000A | |
| Maximum DC Voltage | 560V dc | |
| Capacitance | 1.71nF | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Thickness | 5.5mm | |
| Energy Rating | 260J | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Product Type Metal Oxide Varistor | ||
Varistor Voltage 610 V | ||
Clamping Voltage VC 1050V | ||
Series High Power | ||
Diameter 32mm | ||
Maximum AC Voltage 420V ac | ||
Maximum Surge Current 10000A | ||
Maximum DC Voltage 560V dc | ||
Capacitance 1.71nF | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Thickness 5.5mm | ||
Energy Rating 260J | ||
Automotive Standard No | ||
- Pays d'origine :
- GB
Metal Oxide Varistors High Power
High power metal oxide varistors suitable for reducing transient voltage spikes in industrial power applications.
Single and two-hole fixing types for distribution bus-bar mounting
Insulated plastic case types for flat surface mounting
High-mass large-diameter zinc oxide element
Repeatable protection against high-energy transient voltages
Operating Temperature Range: -40°C → +85°C
