Norgren Pneumatic Sensor Relative Pressure
- N° de stock RS:
- 220-3388
- Référence fabricant:
- 34D-P016G-DD1-AA
- Fabricant:
- Norgren
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
427,34 €
(TVA exclue)
517,08 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 25 janvier 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 427,34 € |
| 5 + | 418,77 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 220-3388
- Référence fabricant:
- 34D-P016G-DD1-AA
- Fabricant:
- Norgren
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Norgren | |
| Product Type | Pneumatic Sensor | |
| Accuracy | 5 %FS | |
| Switch Output | 2 x PNP | |
| Pressure Type | Relative Pressure | |
| Electrical Connection Type | M12X1 | |
| Mount Type | Optional | |
| Connection Thread Size | G 1/4 | |
| Minimum Set Pressure | -1bar | |
| Series | 34D | |
| Maximum Set Pressure | 600bar | |
| Connection Thread Standard | DIN ISO 228 | |
| Number of Display Digits | 4 | |
| Maximum Operating Temperature | 80°C | |
| Depth | 49.4mm | |
| Width | 34mm | |
| Standards/Approvals | UL | |
| Height | 90.7mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Norgren | ||
Product Type Pneumatic Sensor | ||
Accuracy 5 %FS | ||
Switch Output 2 x PNP | ||
Pressure Type Relative Pressure | ||
Electrical Connection Type M12X1 | ||
Mount Type Optional | ||
Connection Thread Size G 1/4 | ||
Minimum Set Pressure -1bar | ||
Series 34D | ||
Maximum Set Pressure 600bar | ||
Connection Thread Standard DIN ISO 228 | ||
Number of Display Digits 4 | ||
Maximum Operating Temperature 80°C | ||
Depth 49.4mm | ||
Width 34mm | ||
Standards/Approvals UL | ||
Height 90.7mm | ||
- Pays d'origine :
- DE

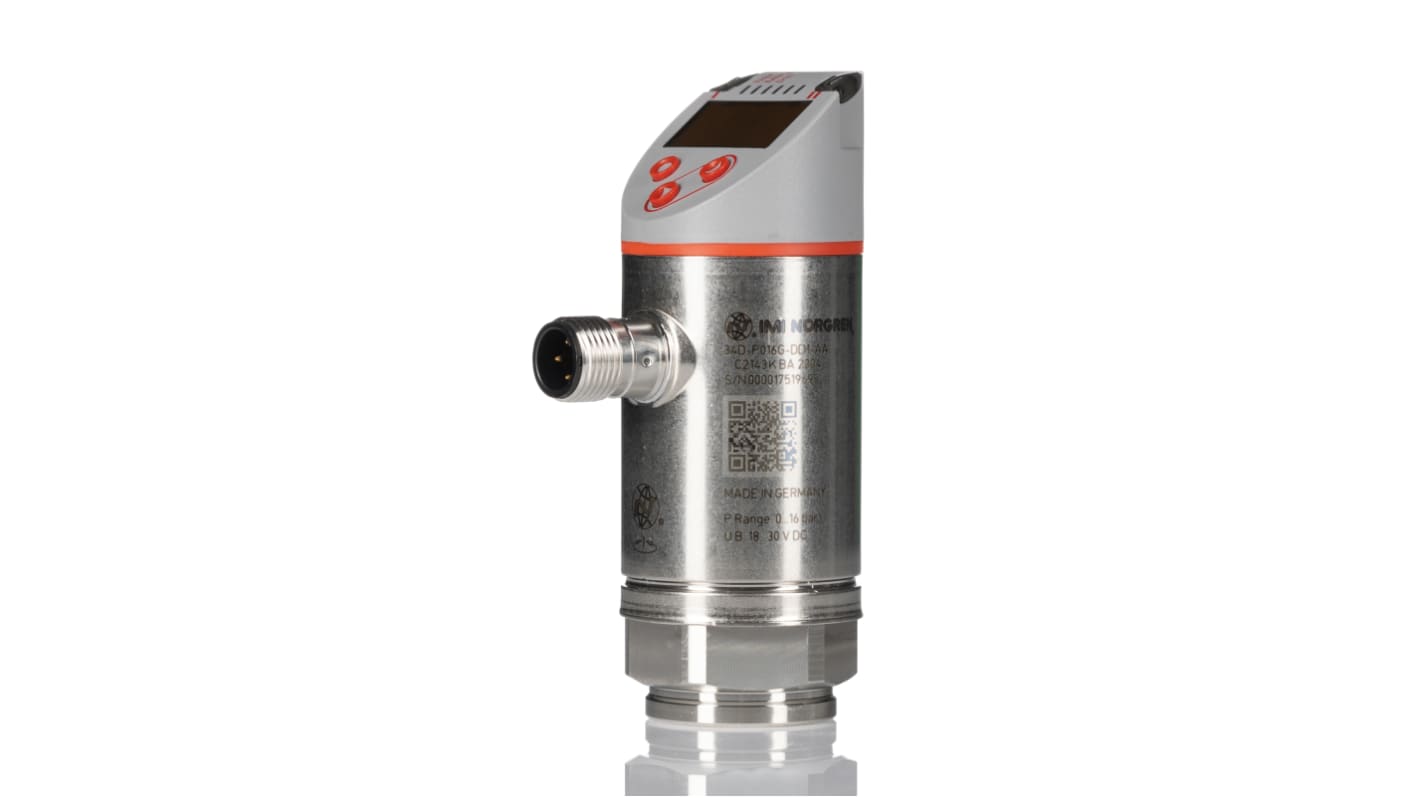

IMI Norgren Pneumatic Sensor, G1/4 Port Size, 2 x PNP Output Signal Type - 34D Series - 34D-P016G-DD1-AA
Take the pressure out of fluid monitoring with this pneumatic sensor from IMI Norgren. When connected to a source of compressed fluid, it measures the pressure and converts it into an electrical signal. An alphanumeric screen then displays the results in up to four digits, so it's a breeze to grab readings when you're on the go. The unit's PBT and stainless steel housing is strong, non-corroding and impact-resistant, so it shrugs off knocks in harsh and damp environments.
Features & Benefits
• Broad operating temperature range between -25°C and +80°C so you can use it in demanding conditions
• ±0.5% accuracy of full scale indicates reliability
• Programmable pressure units include bar, PSI and MPa for easy use
• Rotatable upper body for hassle-free viewing of the display screen
Applications
• Medical technology
• Aviation sector
• Automotive industry
What fluids can I measure with this pneumatic sensor?
For versatility, the device is designed for measuring neutral or aggressive fluids in a wide pressure range between 0 and 16 bar, including liquids and gases.
How much does this sensor weigh?
The unit's weight is 260g, so it won't drag on the mounting surface.
