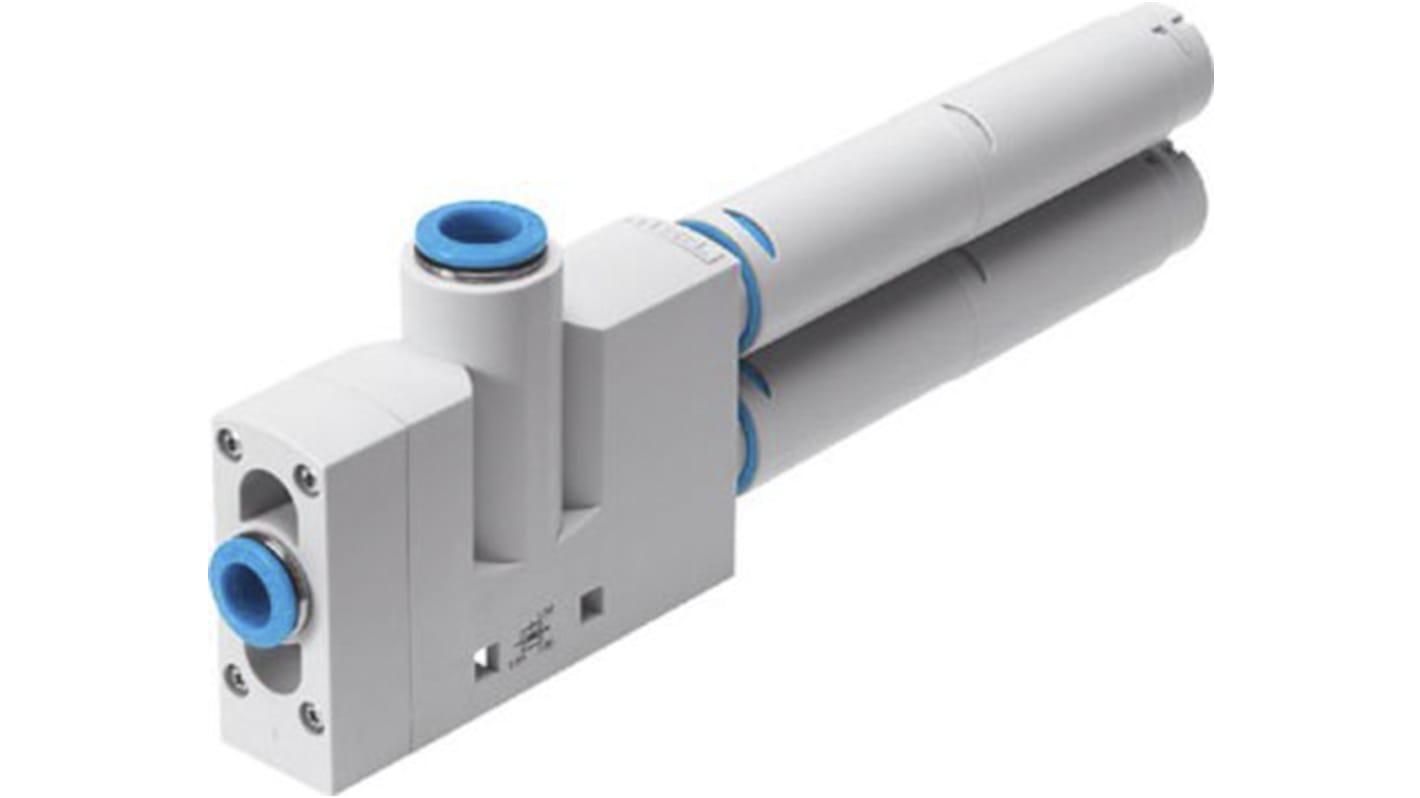

Festo Vacuum Pump, 2 mm nozzle, 3 bar 188 L/min, VN series
- N° de stock RS:
- 203-6273
- Référence fabricant:
- VN-20-L-T6-PQ4-VQ5-RO2
- Fabricant:
- Festo
Sous-total (1 unité)*
126,96 €
(TVA exclue)
153,62 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 4 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 126,96 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 203-6273
- Référence fabricant:
- VN-20-L-T6-PQ4-VQ5-RO2
- Fabricant:
- Festo
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Festo | |
| Product Type | Vacuum Pump | |
| Maximum Suction Flow | 188L/min | |
| Maximum Vacuum Pressure | 3bar | |
| Nozzle Diameter | 2mm | |
| Series | VN | |
| Silencer | Yes | |
| Inlet Thread Standard | QS | |
| Maximum Operating Temperature | 60°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | RoHS | |
| Sélectionner tout | ||
|---|---|---|
Marque Festo | ||
Product Type Vacuum Pump | ||
Maximum Suction Flow 188L/min | ||
Maximum Vacuum Pressure 3bar | ||
Nozzle Diameter 2mm | ||
Series VN | ||
Silencer Yes | ||
Inlet Thread Standard QS | ||
Maximum Operating Temperature 60°C | ||
Hazardous Area Certification No | ||
Standards/Approvals RoHS | ||
- Pays d'origine :
- HU
Festo Series VN Vacuum Pump, 188L/min Maximum Suction Flow, 3 Bar Maximum Vacuum Pressure - VN-20-L-T6-PQ4-VQ5-RO2, Numeric Part Number: 193578
This vacuum pump is a Compact pneumatic device designed to generate negative pressure for handling and process tasks in industrial settings. It is intended for integration with automated and mechanical systems where quiet operation and controlled suction are required, operating within typical industrial temperature ranges.
Features and Benefits:
• Maximum suction flow 188 L/min delivers high throughput for Rapid pick-and-place
• Maximum vacuum pressure 3 bar provides a strong grip for handling applications
• Nozzle diameter 2mm enables precise vacuum connection for small tools
• QS inlet thread standard allows quick hose and fitting installation
• Built-in silencer reduces operational noise in production environments
• Maximum operating temperature 60°C supports elevated ambient conditions
• Maximum vacuum pressure 3 bar provides a strong grip for handling applications
• Nozzle diameter 2mm enables precise vacuum connection for small tools
• QS inlet thread standard allows quick hose and fitting installation
• Built-in silencer reduces operational noise in production environments
• Maximum operating temperature 60°C supports elevated ambient conditions
Applications
• Suitable for pick-and-place in automation lines for electronics assembly
• Ideal for component handling in mechanical manufacturing cells
• Used with vacuum grippers for lightweight part transfer in packaging
• Can be used for panel mounting in electrical control cabinets
• Suitable for use in pneumatic tooling for assembly automation
• Ideal for component handling in mechanical manufacturing cells
• Used with vacuum grippers for lightweight part transfer in packaging
• Can be used for panel mounting in electrical control cabinets
• Suitable for use in pneumatic tooling for assembly automation
What connection type does it use for tubing and fittings?
It uses a QS inlet thread standard that permits push-in style connections compatible with common pneumatic tubing.
How does it perform where heat is present?
It is rated for continuous operation up to a maximum operating temperature of 60°C, allowing use near warm machinery or in heated enclosures.
Is the pump acceptable for environments with noise constraints?
Yes, it includes an integrated silencer to reduce exhaust noise during operation.
What environmental or material restrictions apply to the device?
The pump conforms to RoHS requirements, indicating restrictions on certain hazardous substances in its materials.
