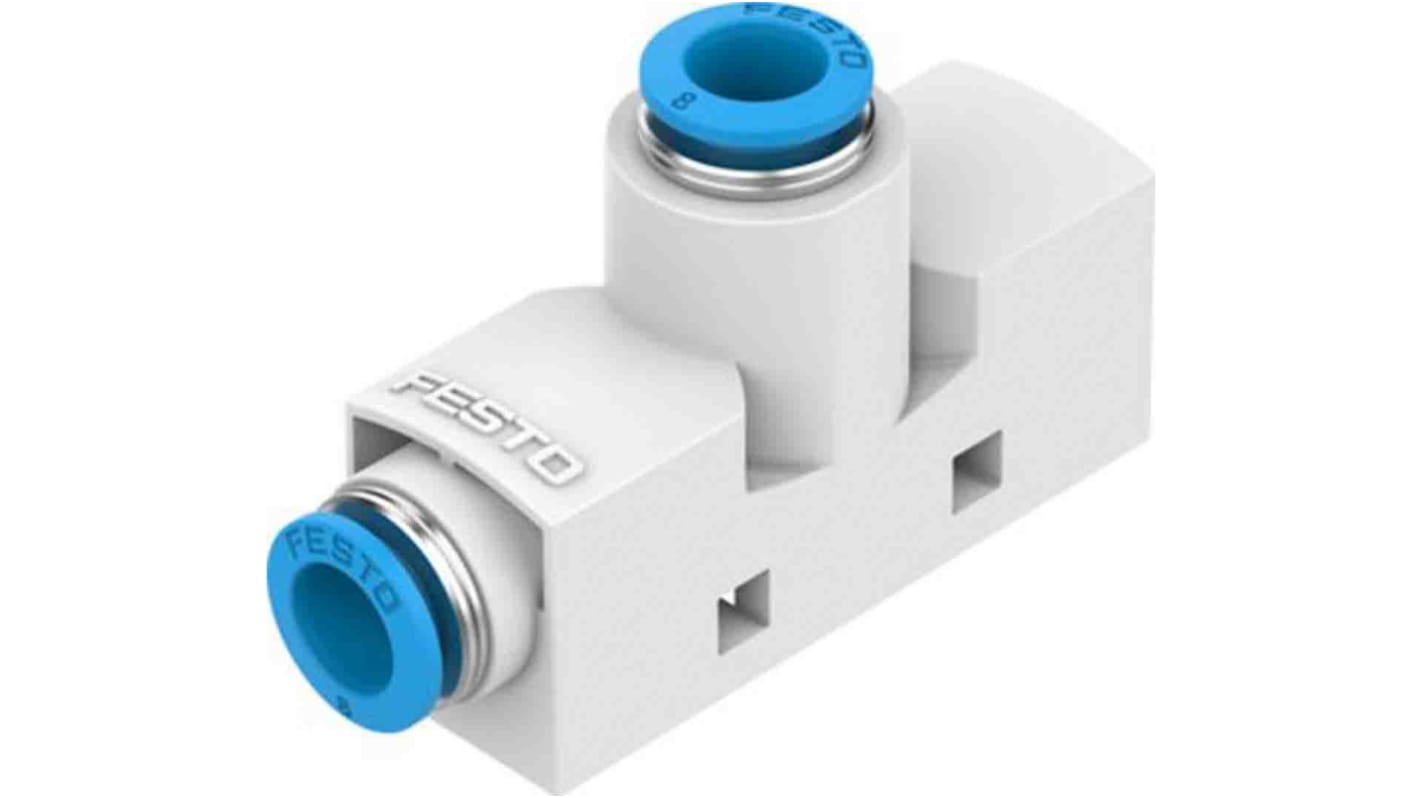

Festo Vacuum Pump, 1.4mm nozzle , -0.88bar 90L/min, VN series

Voir la catégorie

Sous-total (1 unité)*

39,44 €

(TVA exclue)

47,72 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 15 unité(s) prête(s) à être expédiée(s)
  • Plus 3 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +39,44 €

*Prix donné à titre indicatif

N° de stock RS:
202-2418
Référence fabricant:
VN-14-L-T4-PQ2-VQ3-RQ3
Fabricant:
Festo
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Festo

Maximum Suction Flow

90L/min

Maximum Vacuum Pressure

-0.88bar

Nozzle Diameter

1.4mm

Manufacturer Series

VN

Maximum Input Pressure

6bar

Maximum Operating Temperature

+60°C

Minimum Operating Temperature

0°C

Outlet Port Size

8 mm

Operating Pressure

1-8bar

Inlet Port Size

6 mm

Pays d'origine :
HU

Festo Vacuum Pump, 6 Bar Nominal Operating Pressure, T-Shape Design - VN-14-L-T4-PQ2-VQ3-RQ3


Give the efficiency of your pneumatic application a boost with this vacuum pump by Festo. It does this by removing molecules of air and gas from a sealed volume. As it can handle operating pressures between 1 and 8 bar, you can deploy it in many different applications, from filtration to distillation. The push-in QS-6 and QS-8 connectors make it simple to get this device up and running in a flash.

Features & Benefits


• Aluminium alloy nozzle is corrosion-resistant, ensuring it can withstand harsh industrial settings
• Robust NBR seals prevent leaks from disrupting your system
• Ambient operating pressure between 0°C and +60°C means you can use it in demanding environments
• High suction flow rate of up to 90L/min results in fast evacuation times
• POM-reinforced housing is strong and impervious to chemicals, delivering a long service life

Applications


• Water treatment facilities
• Manufacturing industry
• Medical equipment
• Energy generation

Is this vacuum pump easy to mount?


Yes, you can mount this vacuum pump directly into your setup using screws or by snapping it onto a DIN-rail mounting plate.
