Festo Vacuum Pump, 0.95mm nozzle , -0.89bar 62.7L/min, VN series

Voir la catégorie

Sous-total (1 unité)*

35,86 €

(TVA exclue)

43,39 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 7 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +35,86 €

*Prix donné à titre indicatif

N° de stock RS:
202-2417
Référence fabricant:
VN-10-L-T3-PQ2-VQ2-RQ2
Fabricant:
Festo
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Festo

Maximum Suction Flow

62.7L/min

Maximum Vacuum Pressure

-0.89bar

Nozzle Diameter

0.95mm

Manufacturer Series

VN

Maximum Input Pressure

6bar

Operating Pressure

1-8bar

Pays d'origine :
HU

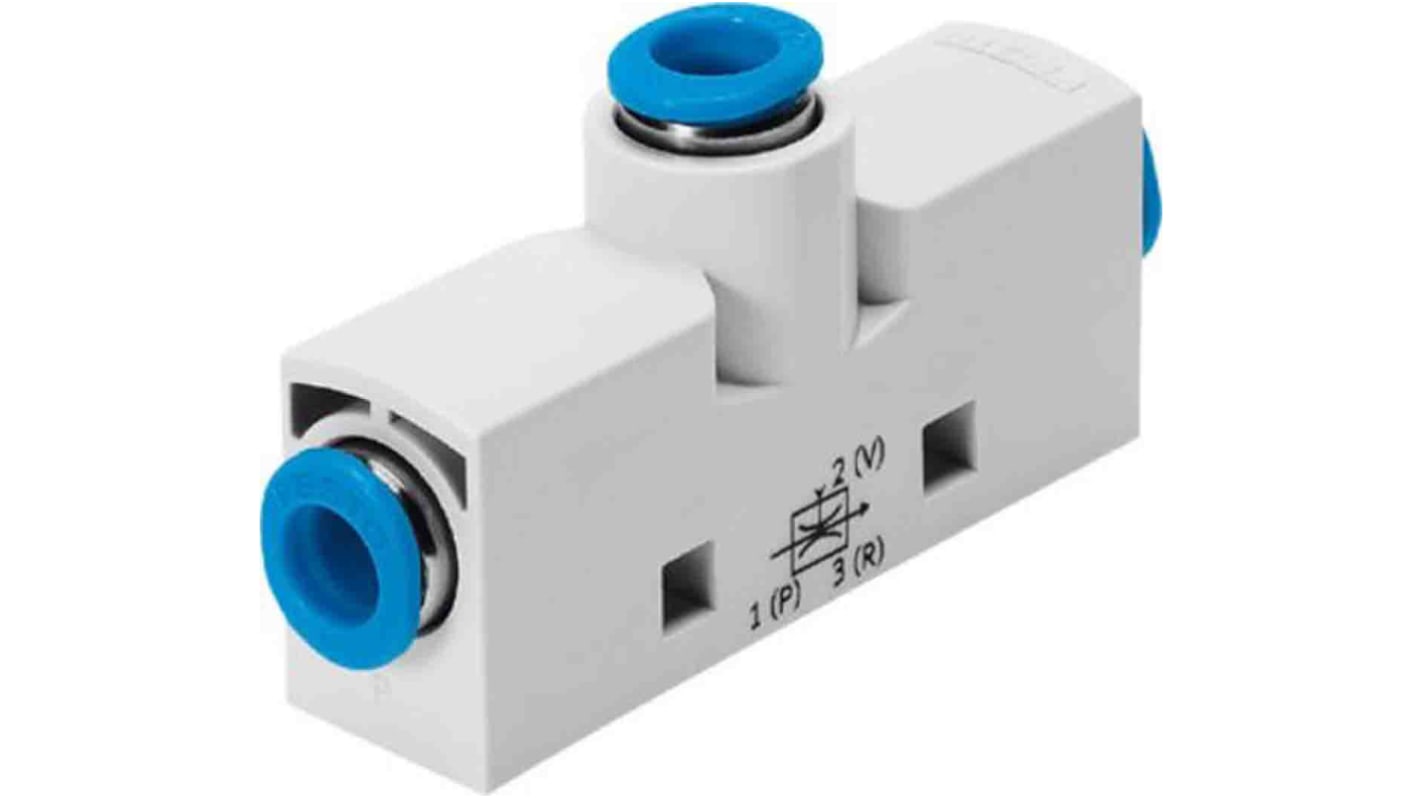

Festo Series VN Vacuum Pump, 62.7 L/min Maximum Suction Flow, -0.89 bar Maximum Vacuum Pressure - VN-10-L-T3-PQ2-VQ2-RQ2, Numeric Part Number: 193563


This vacuum pump is designed for high-performance applications within the automation and industrial sectors. The compact design allows for versatile mounting positions while maintaining an operational range between 1 and 8 bar. With a maximum suction flow rate of 62.7 L/min and a high vacuum pressure of -0.89 bar, it is a reliable choice for a variety of tasks involving compressed air.

Features & Benefits


• High suction rate enables efficient operation in demanding tasks
• T-shaped design supports flexible integration into existing systems
• Adjustable operating pressure accommodates diverse application needs
• Lubricated operation is not required for simplified maintenance
• Low corrosion stress ensures longevity in various environments
• Quick air supply time of 0.46 seconds reduces downtime during operations

Applications


• Utilised for fast and efficient material handling processes
• Employed in electronic assembly for precision component placement
• Used for vacuum packing in the packaging sector
• Engaged in automation systems for reliable actuation functions
• Applicable in pneumatic conveying systems for safe material transfer

What are the operating temperature limits for this device?


The specified operating temperature ranges from 0 °C to +60 °C, ensuring suitability for different environments.

How does the nozzle design contribute to its performance?


The 0.95 mm nozzle diameter optimises airflow, enhancing the maximum suction flow rate for improved efficiency during use.

What materials are used in the construction to ensure durability?


The vacuum pump features reinforced POM housing, NBR seals, and a nickel-plated brass fitting, all contributing to its robust construction.

Is it compatible with various compressed air standards?


Yes, it is compatible with compressed air according to ISO 8573-1:2010 [7:4:4], making it suitable for numerous industrial applications.
